Hardware Installation

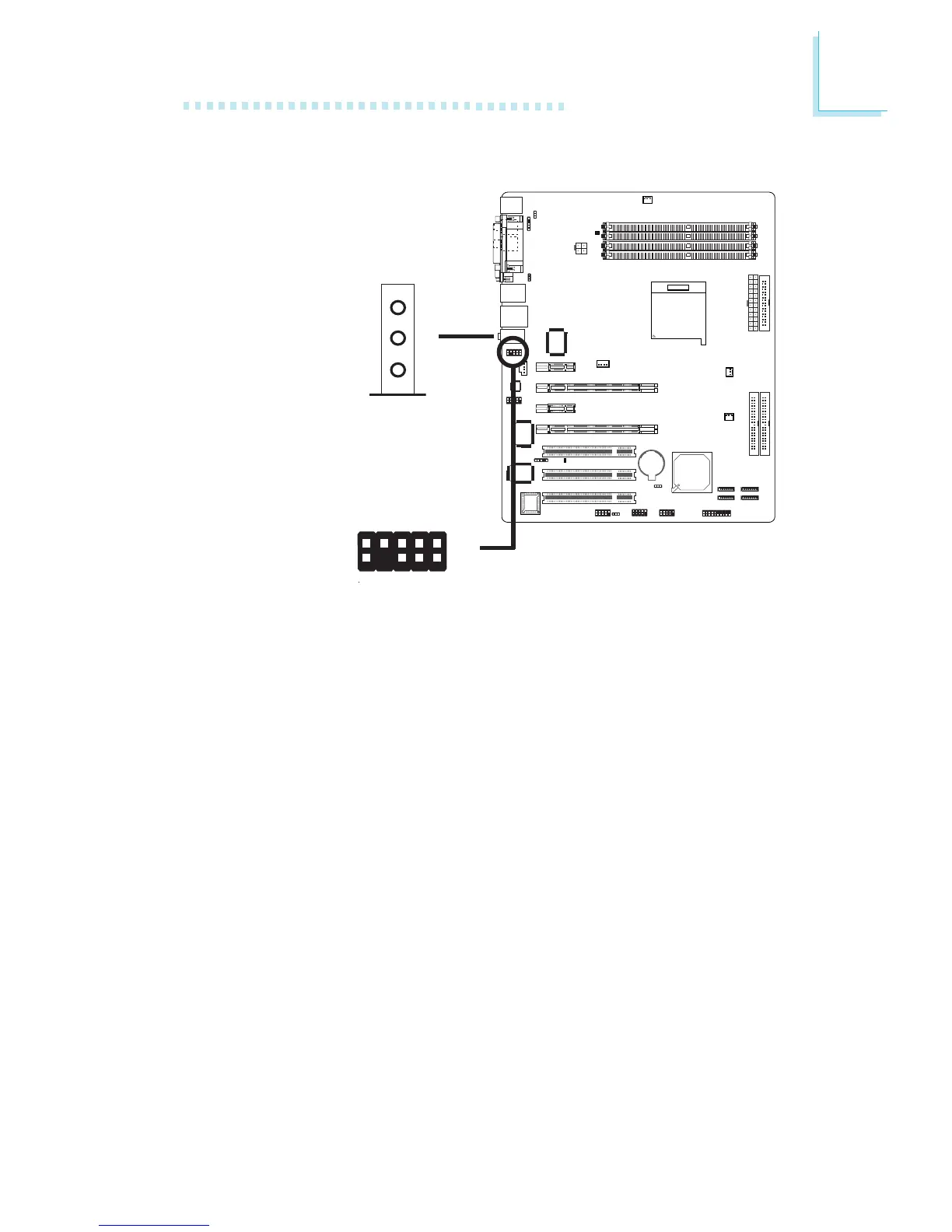

Front audio W
Audio (Rear Audio and Front Audio)
Rear Audio
• Line-in (Light Blue)
In a 2-channel mode, this jack is used to connect any audio
devices such as Hi-fi set, CD player, tape player, AM/FM radio
tuner, synthesizer, etc. In a 4-channel or 6-channel mode, this jack
functions as rear right/left speaker out.
• Line-out (Lime)
In a 2-channel mode, this jack is used to connect a headphone
or external speakers. In a 4-channel or 6-channel mode, this jack
functions as front right/left speaker out.
• Mic-in (Pink)
In a 2-channel or 4-channel mode, this jack is used to connect an
external microphone. In a 6-channel mode, this jack functions as
Center/Subwoofer.
Mic-in
Line-out
Line-in
W
Rear audio
1
2
10
9
MicGND
Mic Power
AuD_Vcc
AuD_R_Out
AuD_R_Return
N. C.
Key
AuD_L_Out
AuD_L_Return
