84 9 November 2001 Transmitters
Controls, Indicators, and Connectors
DT-TX Series
Transmitters
Standardized controls, indicators, and connectors simplify
installation and use of TX series transmitters.
Connectors on the rear of the transmitter modules plug into
the Diamond Transport shelf. Cabling is connected to the
shelf backplane, not directly to the module.
CAUTION
The bulkhead and optical connector on a Diamond
Transport transmitters is covered by a protective shield. To
make connections or to clean connectors, you must remove
the two screws holding the shield in place and then remove
the shield. DO NOT put the screws back into the
transmitters without the shield; doing so damages the Laser
Safety Interlock switch.

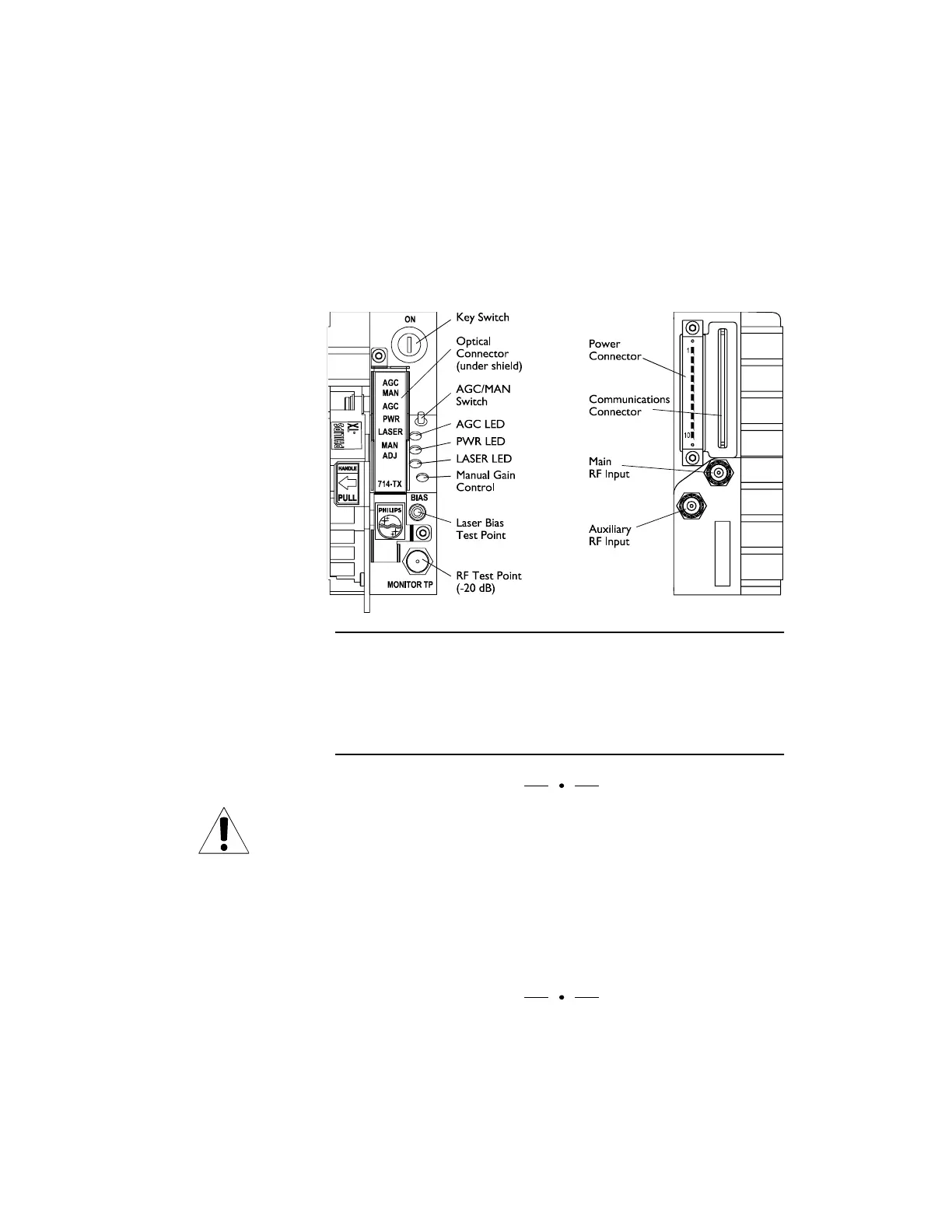

Figure 36. Standardized Controls, Indicators, and
Connectors
To simplify installation and use, DT-TX transmitters use a
common set of controls, status indicators, and points of
connection.
