8

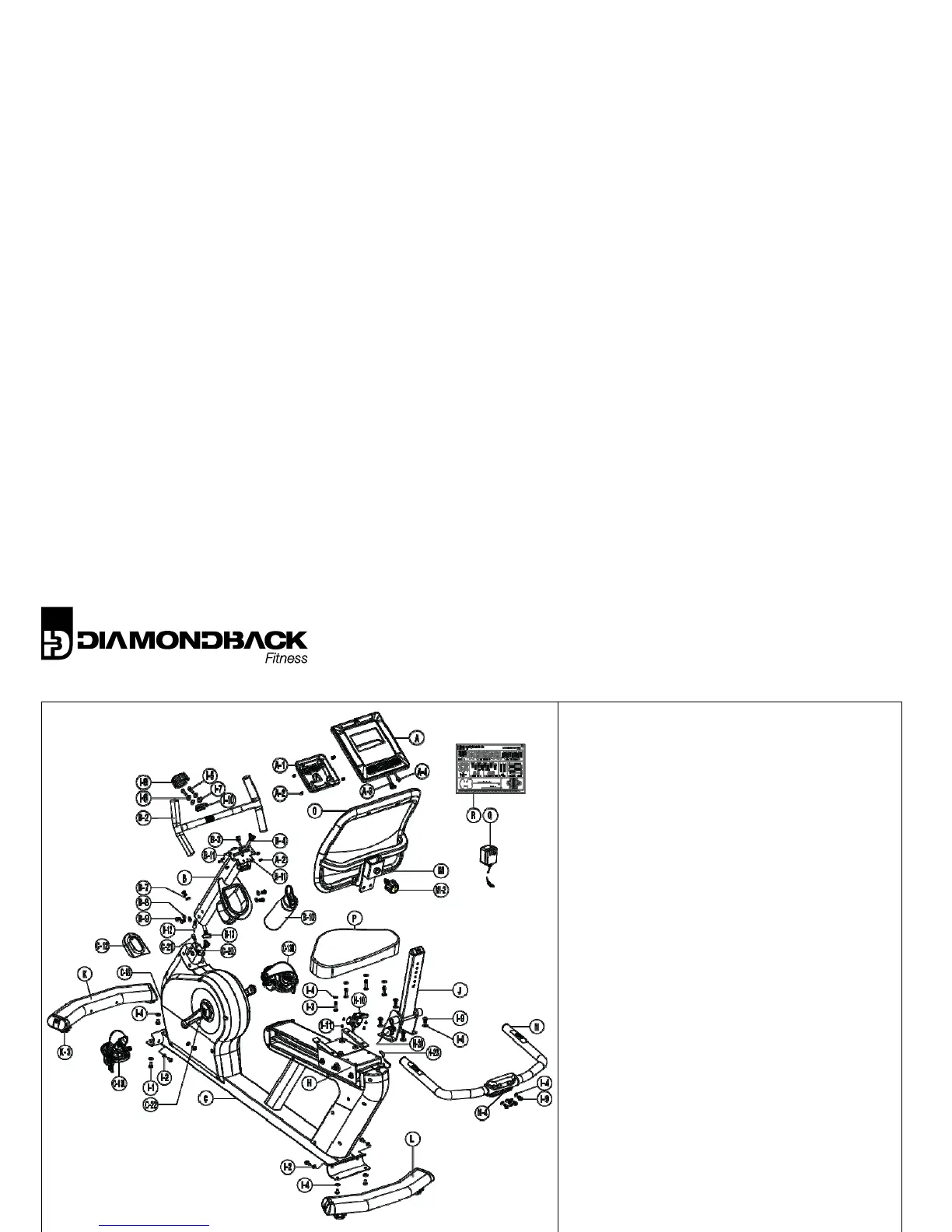

CARTONCONTENTS
PartsList
Item Description Quantity
A ConsoleAssembly 1
A‐1 ConsoleHingeCover 1
A‐2 ConsoleMountingScrew 6
A‐3 MainWireHarnessConnector–Console 1
A‐4 PulseWireHarnessConnector–Console 1
B ConsoleMast 1
B‐2 HandlebarAssembly 1
B‐3 Pulse WireHarnessConnector–UpperMa
st 1
B‐4 MainWireHarnessConnector–UpperMast 1
B‐7 CurvedWasher 1
B‐8 FlatWasher 4
B‐9 AllenBolt 5
B‐10 WaterBottle 1
B‐11 ConsoleHingeMountingPlate 1
B‐12 PulseWireHarnessConnector–LowerMast 1
B‐13 Ma
inWireHarnessConnector–LowerMast 1
C MainFrame 1
C‐12 LowerConsoleMastCover 1
C‐13L/R Pedals 1
C‐18 PowerInputJack 1
C‐20 MainWireHarnessConnector–Frame 1
C‐21 PulseWireHarnessConnector–Frame 1
C‐22 CrankFixingBolt 2
H‐10 SeatSlideFore‐AftA
djustmentLever 1
H‐23 PulseWireHarnessConnector–SeatSlide 1
H‐28 SeatBackTiltAdjustorKnob 1
I‐1 AllenBolt 4
I‐2 CurvedWasher 4
I‐3 AllenBolt 4
I‐4 FlatWasher 16
I‐5 A
llenBolt 2
I‐6 LockWasher 2
I‐7 FlatWasher 2
I‐8 HandlebarClampCover 1
I‐9 AllenBolt 8
I‐11 PhillipScrew 4
J SeatBackMastAssembly 1
K FrontStabilizerAssembly 1
K‐3 StabilizerFootAssembly 4
L RearStabilizerAssemb
ly 1
N RearHandlebarAssembly 1
N‐4 PulseWireInputJack 1
M SeatBackUp/DownSlide 1
M‐2 SeatBackHeightAdjustmentKnob 1
O SeatBack 1
P SeatBase 1
Q PowerSupply/Adaptor 1
R AssemblyToolKit 1
