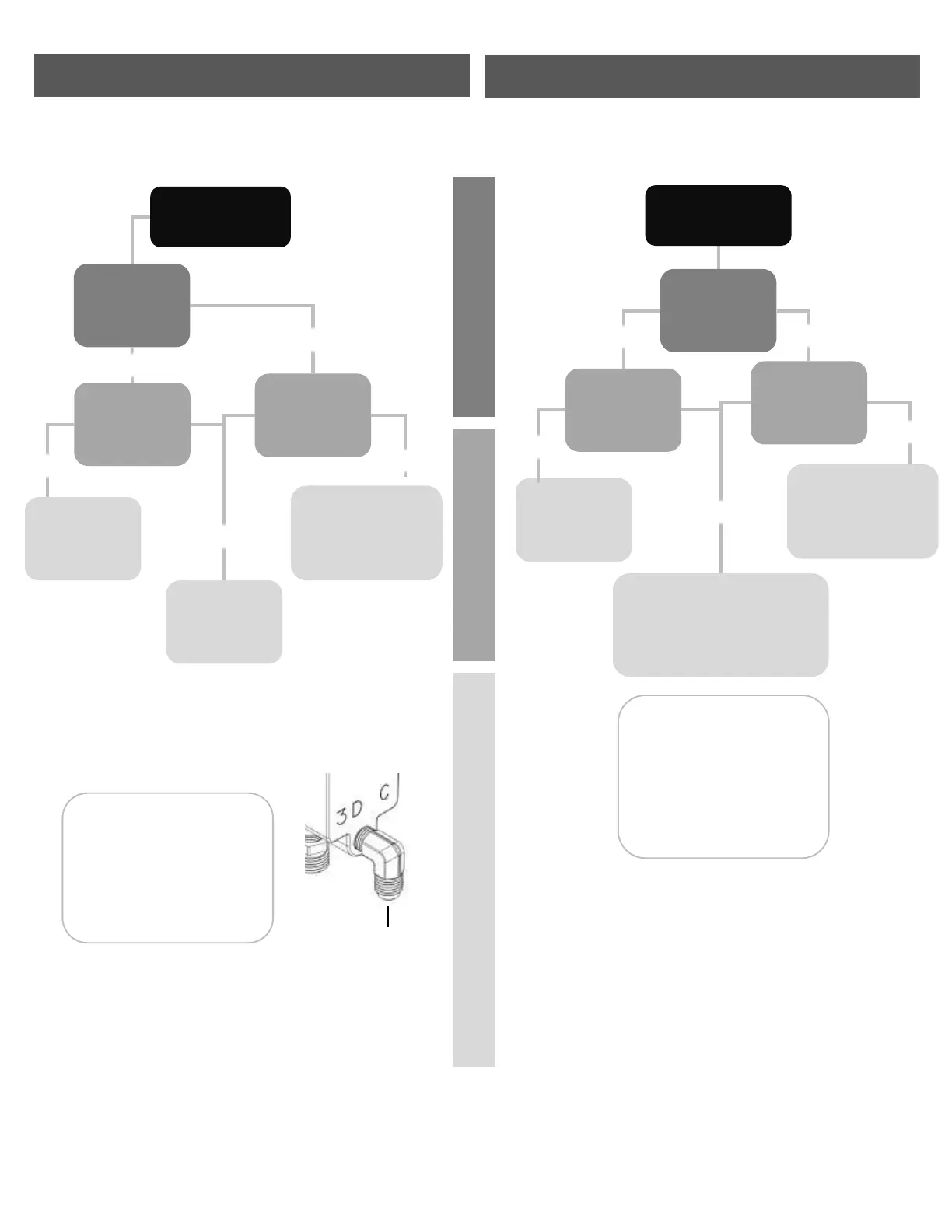

VALVE OVERFLOWING
Diagnose
Correct
Fuel is exiting
the valve
overflow
CAUTION: ALWAYS FOLLOW THE MANUFACTURER’S LIGHTING INSTRUCTIONS FOR THIS
APPLIANCE FOUND ON PAGE 35. FAILURE TO ADHERE TO SAFE RECOMMENDED LIGHTING
PROCEDURES CAN RESULT IN INJURY, DAMAGE TO PROPERTY OR EVEN DEATH.
!
VALVE LEAKING FUEL
Valve
overflow
fitting
Is fuel being
supplied via
pump or gravity
feed?
Is the pump able
to, or delivering
more than 3 PSI
of pressure?
Investigate
Is the gravity
feed tank
located 7 feet or
higher above
the appliance?
pump
gravity
Adjust pressure
regulator to limit
fuel pressure.
See page 44
Locate the tank at
height under 7 feet or
install pressure
regulator
See page 29
yes
yes
Clean needle &
seat inside
metering valve
See page 43
no
Please note:
Any sign of fuel overflow,
inconsistency or flooding must be
corrected by disassembling and
cleaning the needle & seat of the
metering valve. See a video
demonstration of this and other
steps on the Dickinson Marine
YouTube channel.
Fuel is exiting the
valve housing
Is fuel being
supplied via
pump or gravity
feed?
Is the pump able
to, or delivering
more than 3 PSI
of pressure?
Adjust pressure
regulator to limit
fuel pressure.
See page 44
yes
pump
Is the gravity
feed tank
located 7 feet or
higher above
the appliance?
Locate the tank at
height under 7 feet or
install pressure
regulator
See page 29
yes
gravity
no
Fuel is unable to leave valve via
overflow. Check overflow does not:
 Run uphill
 Have a cap or plug on it
 Have air trapped in lines
See page 27
Please note:
A flooding valve is caused either
by overpressure filling the valve
more quickly than it can be
evacuated via the overflow, or by
a blocked overflow fitting or line.
Make sure the overflow is not
impeded in any way prior to
putting the appliance into
operation.
