To activate a manual watering without the use of the timer – turn the solenoid a
1/4 turn counterclockwise. To stop, tighten the solenoid clockwise by hand only –
do not over tighten (figure 9).
14. CONNECTING A RAIN SENSOR
Most “normally closed” rain sensors can be connected to the RBC 7000 timer.
The function of the sensor is to prevent automatic watering by
the set program due to excessive rainfall.
To connect the sensor to the timer, please follow these steps:
1. Cut the yellow wire loop that exits the timer in the middle of the loop.
2. Strip approximately 1/2 in. of insulation from the end of each wire.
3. Splice one yellow wire to each of the wires coming from the sensor.
Use waterproof wire connectors to secure the connections.
4. When the sensor is active and preventing automatic operation, the
icon will
appear on the display.

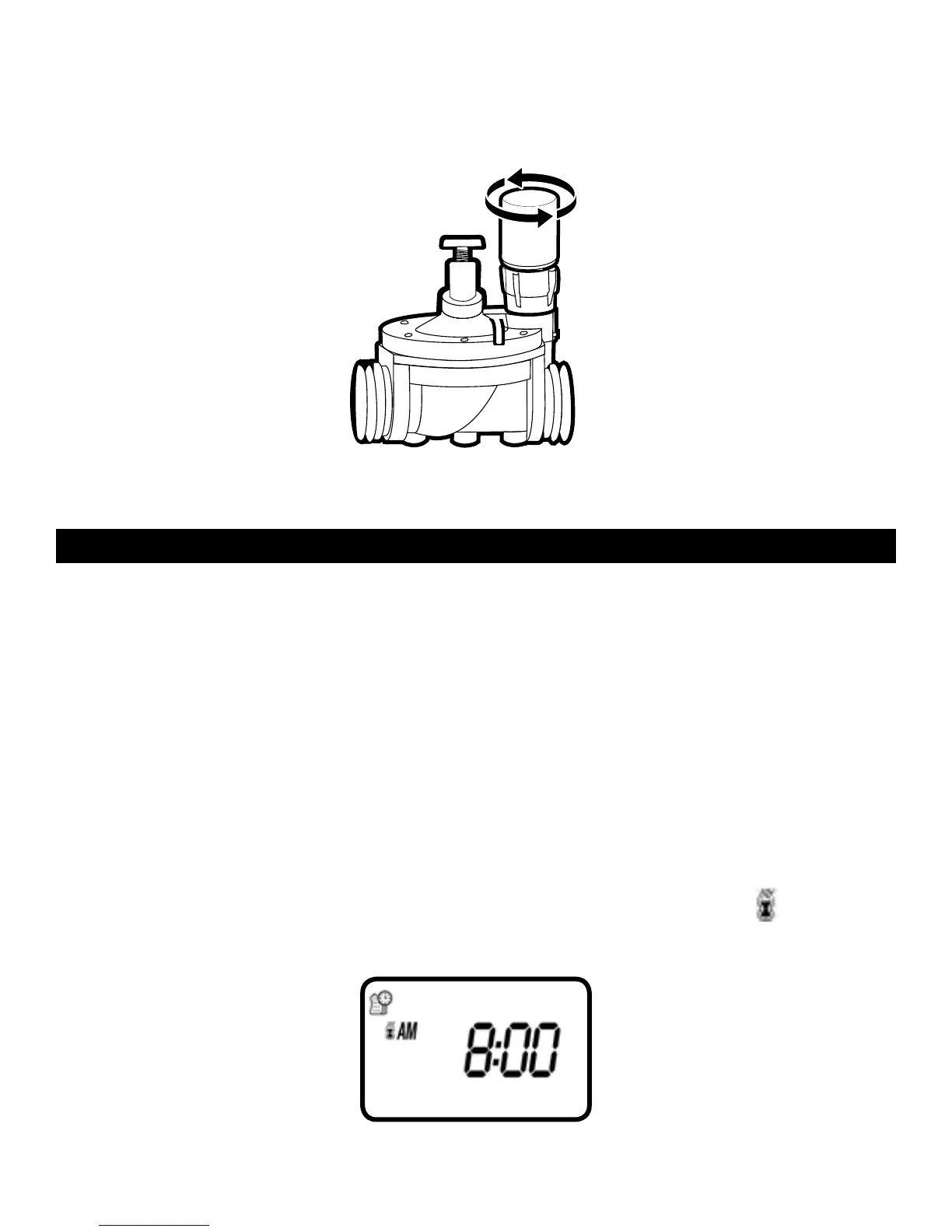

FIGURE 9

DIG RBC 7000 Specifications

General

Brand	DIG
Model	RBC 7000
Category	Controller
Language	English
