HI, MI, WI-700 service manual - 4 –servicing
4-88 Issue 9 04/2020

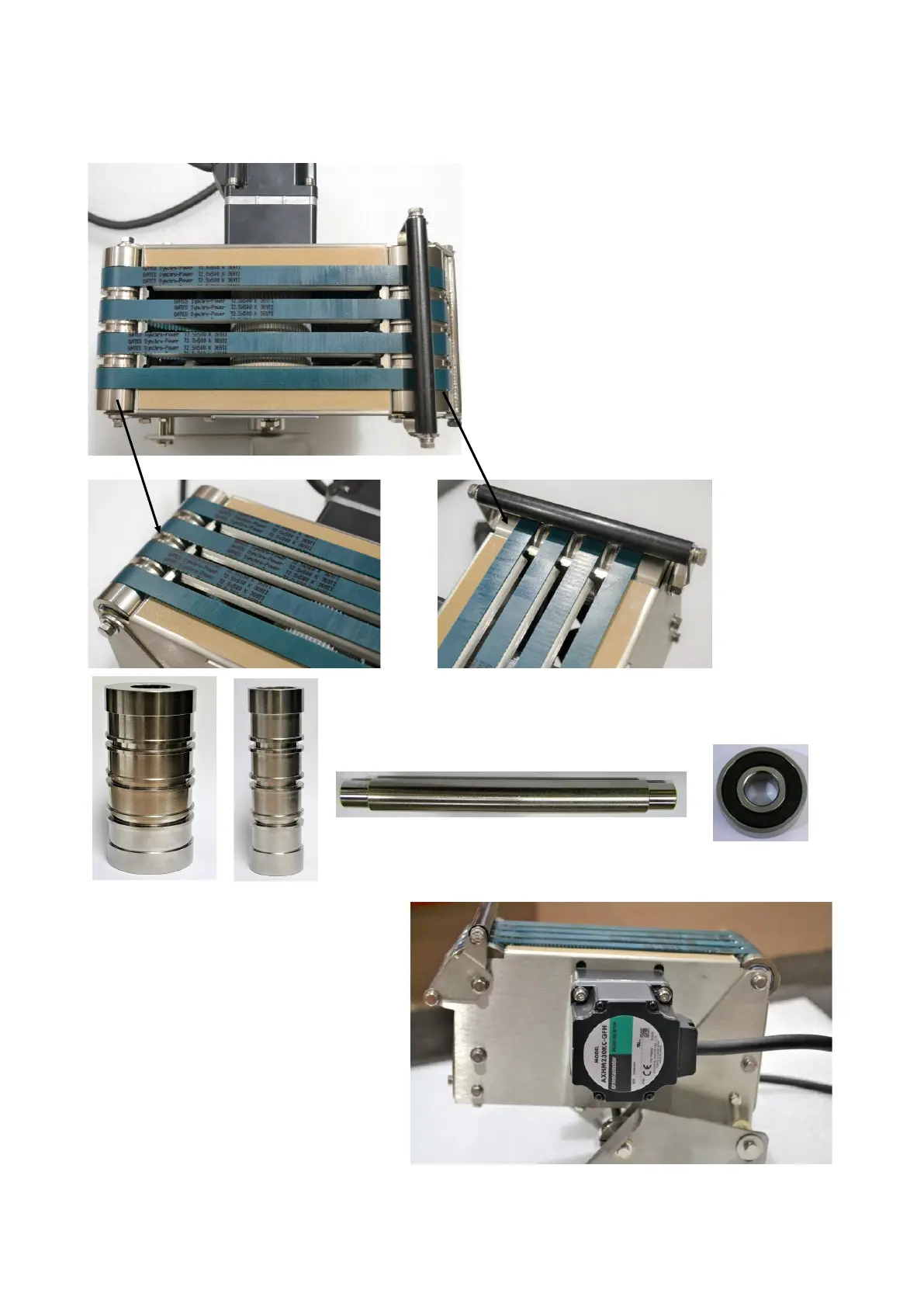

The rollers are a different size, the larger
one at the top.
The bearing in each end of the roller and
the centre shaft is the same for both
rollers.
To tension the four belts, loosen the
mounting screws holding the motor /
gearhead and move motor/geadhead
assembly up/down to obtain the desired
belt tension.
Push the belts to rotate then and check
condition of belts and bearings in rollers.
Base labeller belt applicator - continued
To Next Page
