HI, MI, WI 700 service manual - 1 - Installation
1-22 Issue 9 04/2020

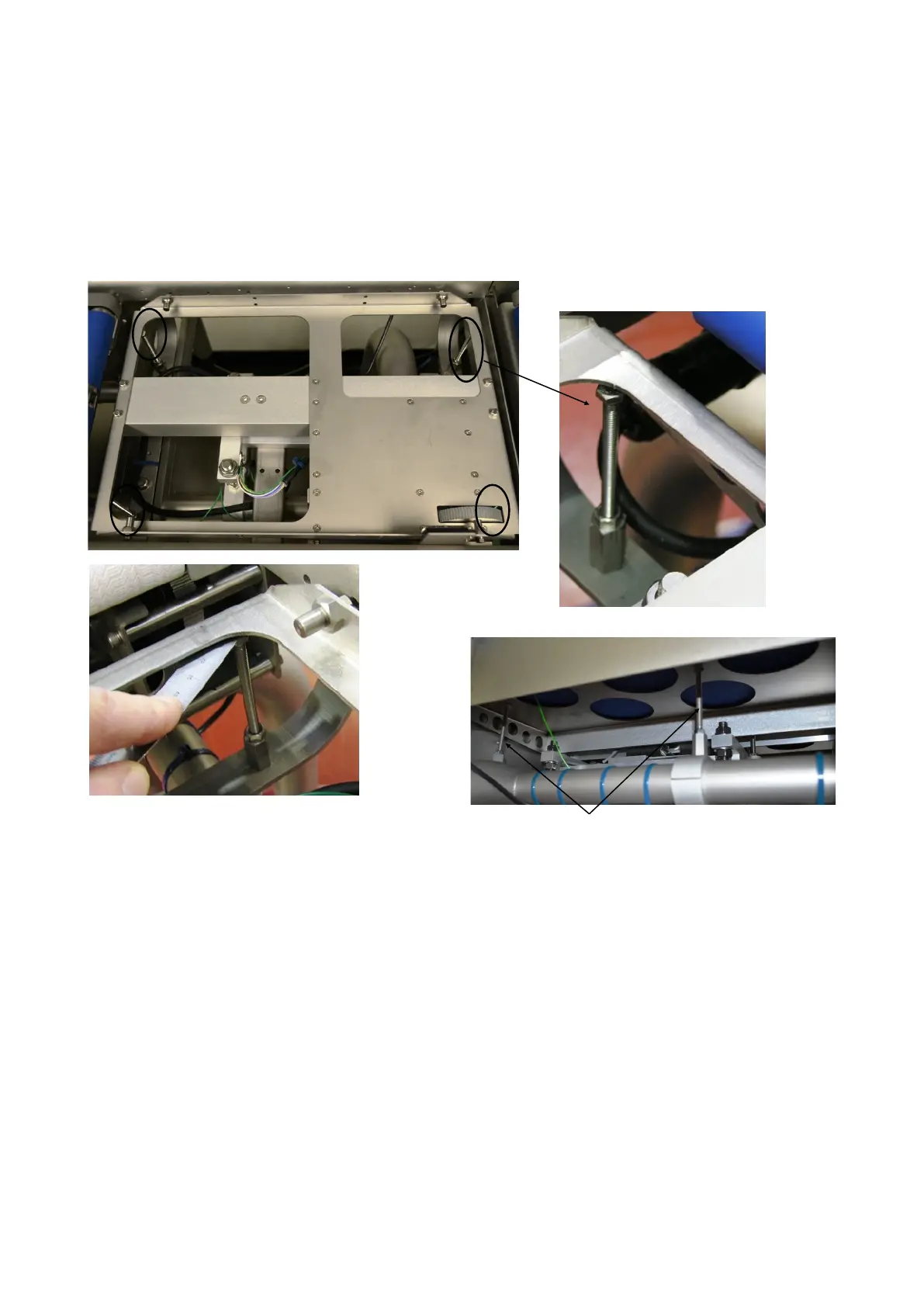

Setting corner over load stops
It is important that the overload stops at each corner of the scale assembly are set correctly to help protect
the load cell from being over loaded.
The scale assembly has four overload stop screws, one in each corner. Set each overload screw with the
correct gap to protect the load cell.
Ensure the height of the screw at each corner and therefore the gap between screw top and top scale
frame is set so that there is a minimal gap when the scale is fully deflected with its maximum load (including
scale conveyor)
To set – have the scale conveyor in place (or a suitable equal weight on the load cell), also add to this the
scale capacity (e.g. 3kg).
Turn each screw out until the head of the screw touches the underside of the scale frame.
Back each screw off so there is a minimal gap. For example, use a small steel rule (approx. 0.4mm thick)
as a gauge placed in the gap to obtain an even gap for all 4 stops.
Tighten lock-nuts.
HI-700W overload stops
