HI, MI, WI 700 service manual - 1 - Installation
1-21 Issue 9 04/2020

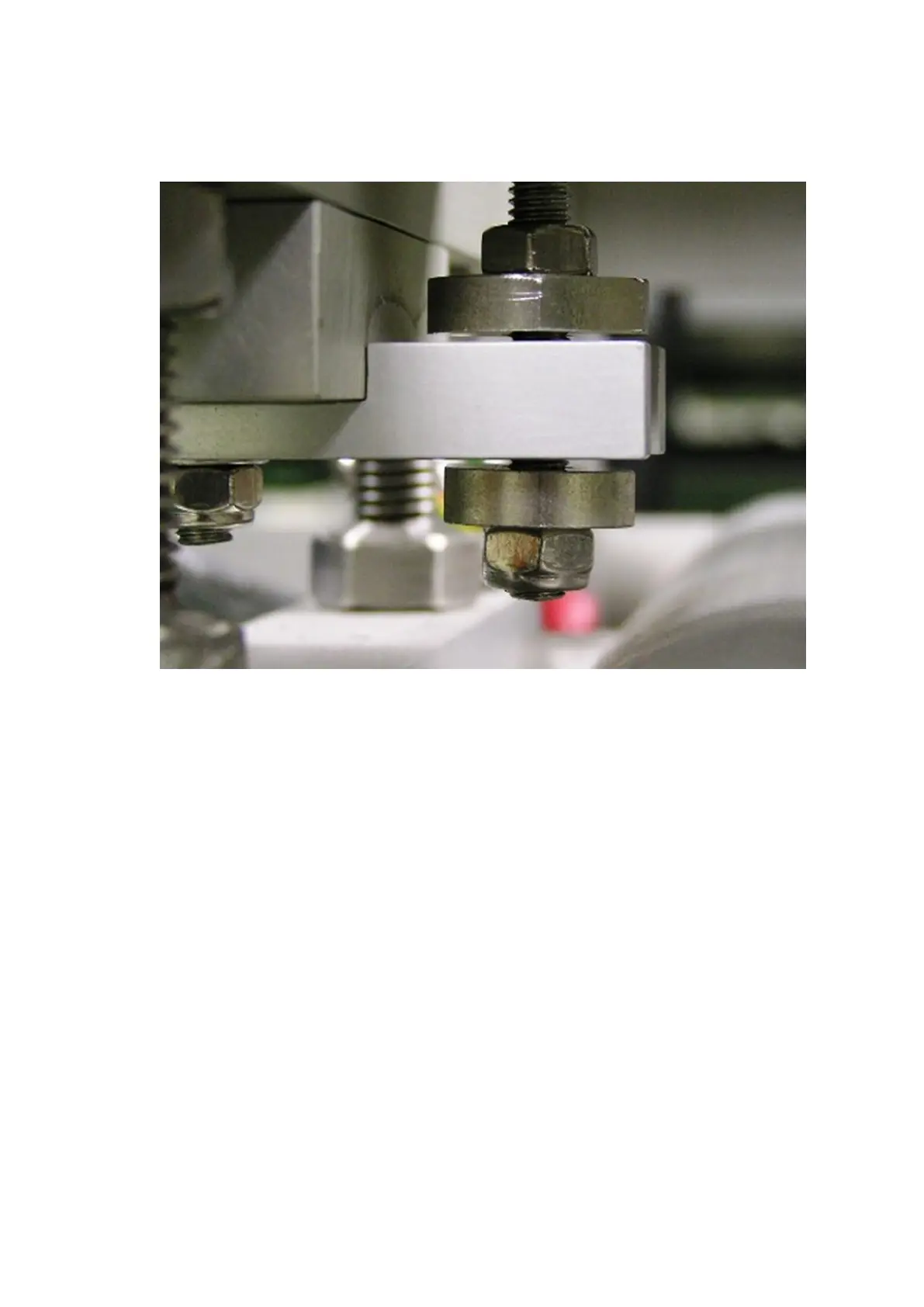

Under and over load discs set with 1mm gap
Ensure that scale conveyor motor wires and load cell cable are routed correctly to ensure correct weighing.
Wires must not touch the scale body (top frame) or conveyor.
The motor wires are held in the correct place by wire clips.
Refit the scale conveyor in place.
