HI, MI, WI-700 service manual - 2 - component parts
2-38 Issue 9 04/2020
Labeller - Signature

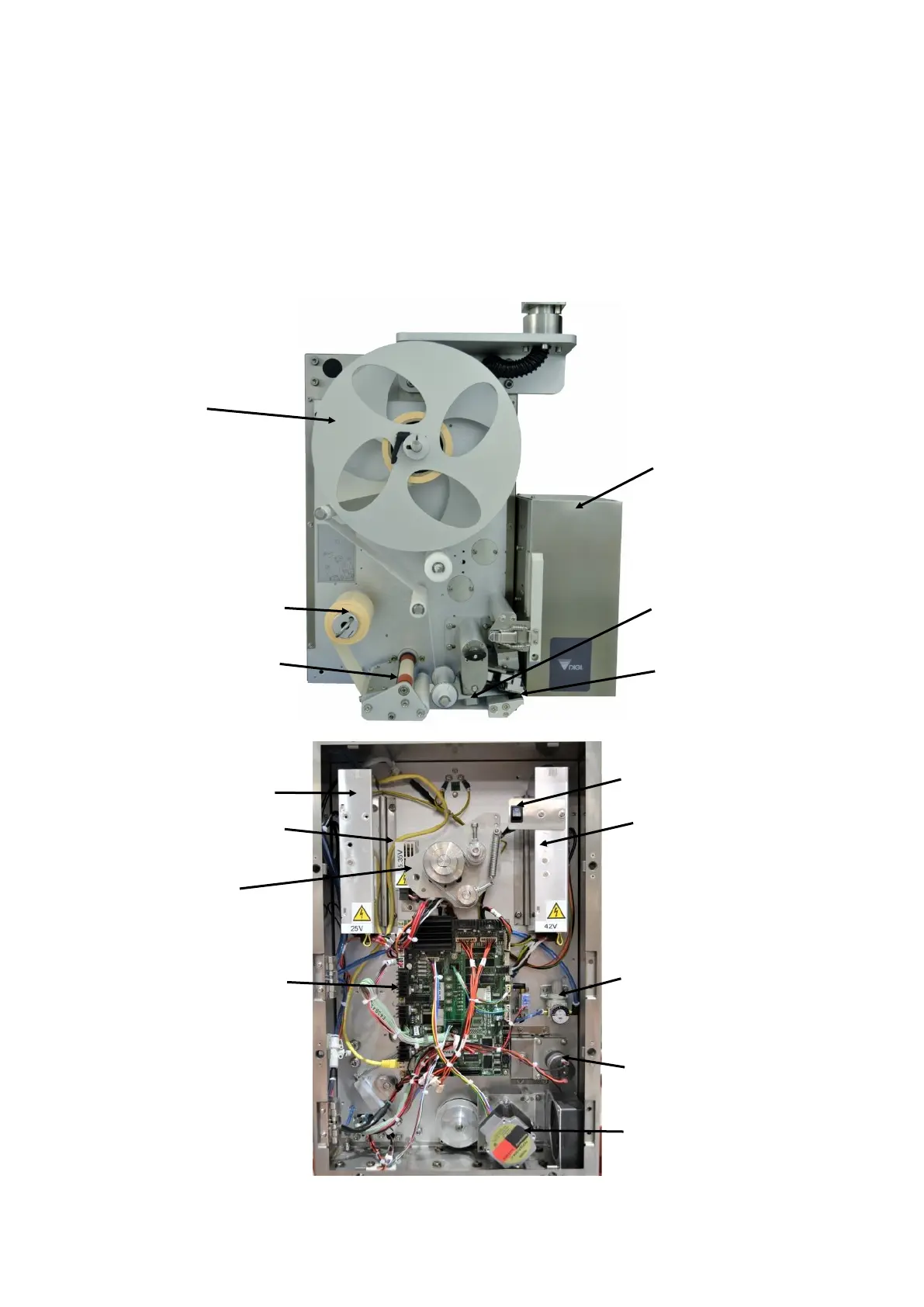

The standard top labeller fitted to the HI, MI & WI is shown below. This is known as the Signature high
speed labeller. This labeller is handed therefore is build left to right or right to left depending on machine
flow direction
For top labelling the applicator can be touch (9 fingers), multi jet air box or HS blow.
Front and side applicator systems can also be fitted to the Signature labeller.
9 finger Touch,
multi jet air box or HS
blow applicator.
Backing paper take-up
Drive & pinch rollers
Label gap sensor
Thermal head &
wear strip. Platen
roller type optional
Labeller board
plus additional
I/O sensor
board
24v DC take-up
motor
42v stepper motor
Power ON/OFF switch
25v power supply
5.35v power supply
Standard label reel
fitted, label centralizer
optional
42v power supply
NOTE: version shown
is L-R. certain parts
are mounted opposite
hand for R-L
Brake arm rear
assembly
Pneumatics for
thermal head pressure
To Next Page
