Primary fuse - 10A

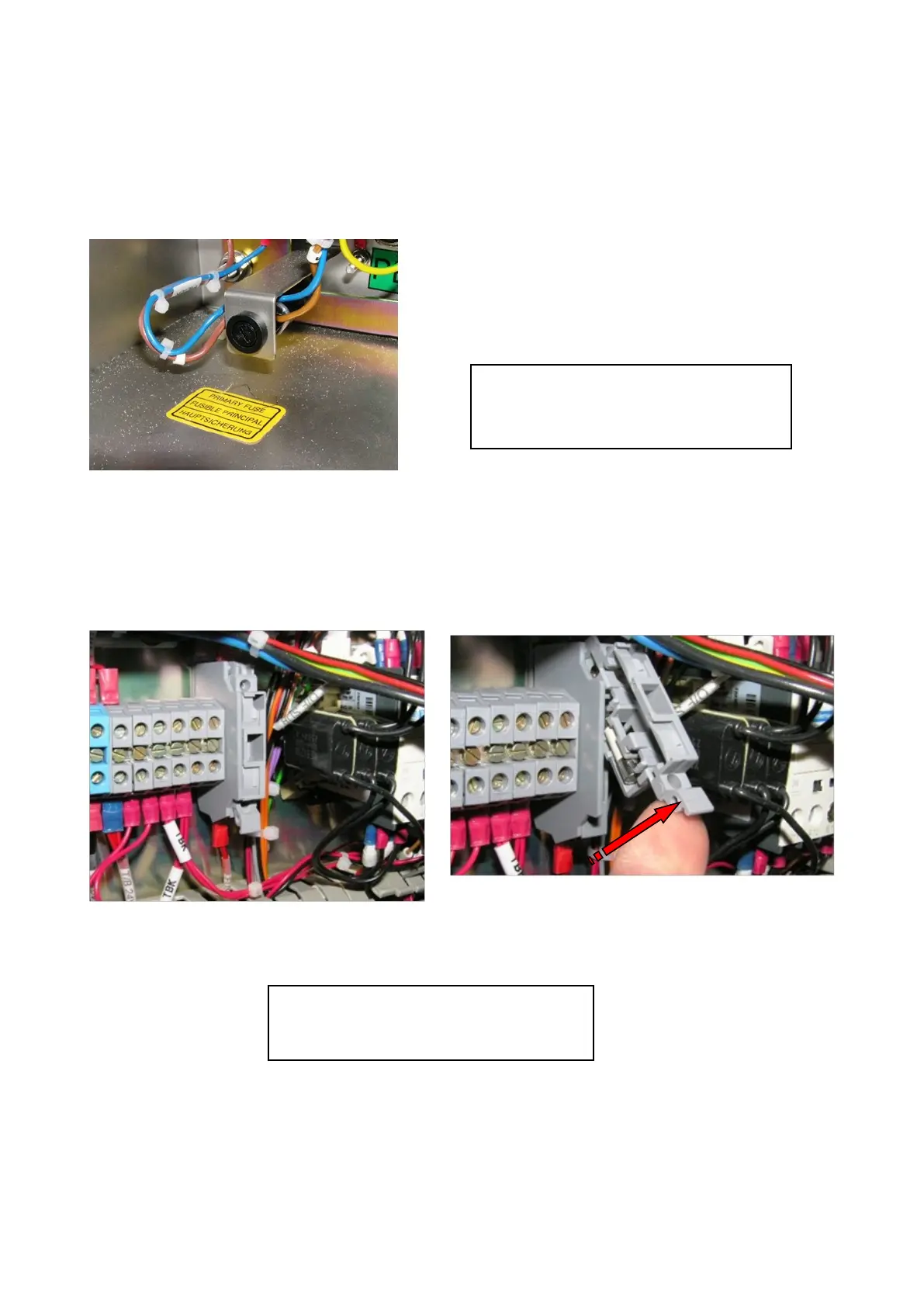

The machine is protected at the incoming mains supply with a primary fuse rated at 10A.
The location of this is as shown below.
Control fuse 315mA
The stop / start circuit for the conveyors is protected by a fuse rated at 315mA.
The location of this is show below.
Lift the clip at the base of the holder to hinge it open and gain access to the fuse.
Replace the fuse with the correct type and rating.
To replace the fuse, unclip the front of the fuse holder
with a flat bladed screw driver (1/4 turn anticlockwise)
and remove the front of the holder and fuse.
Replace with the correct type and rating fuse as indicated
on machine.
FOR SAFETY - Ensure the power plug is
removed from the power outlet before
replacing fuse.
FOR SAFETY - Ensure the power plug is
removed from the power outlet before
replacing fuse.
