Maintenance of centralizer label reel
Ball plunger lock tension - continued

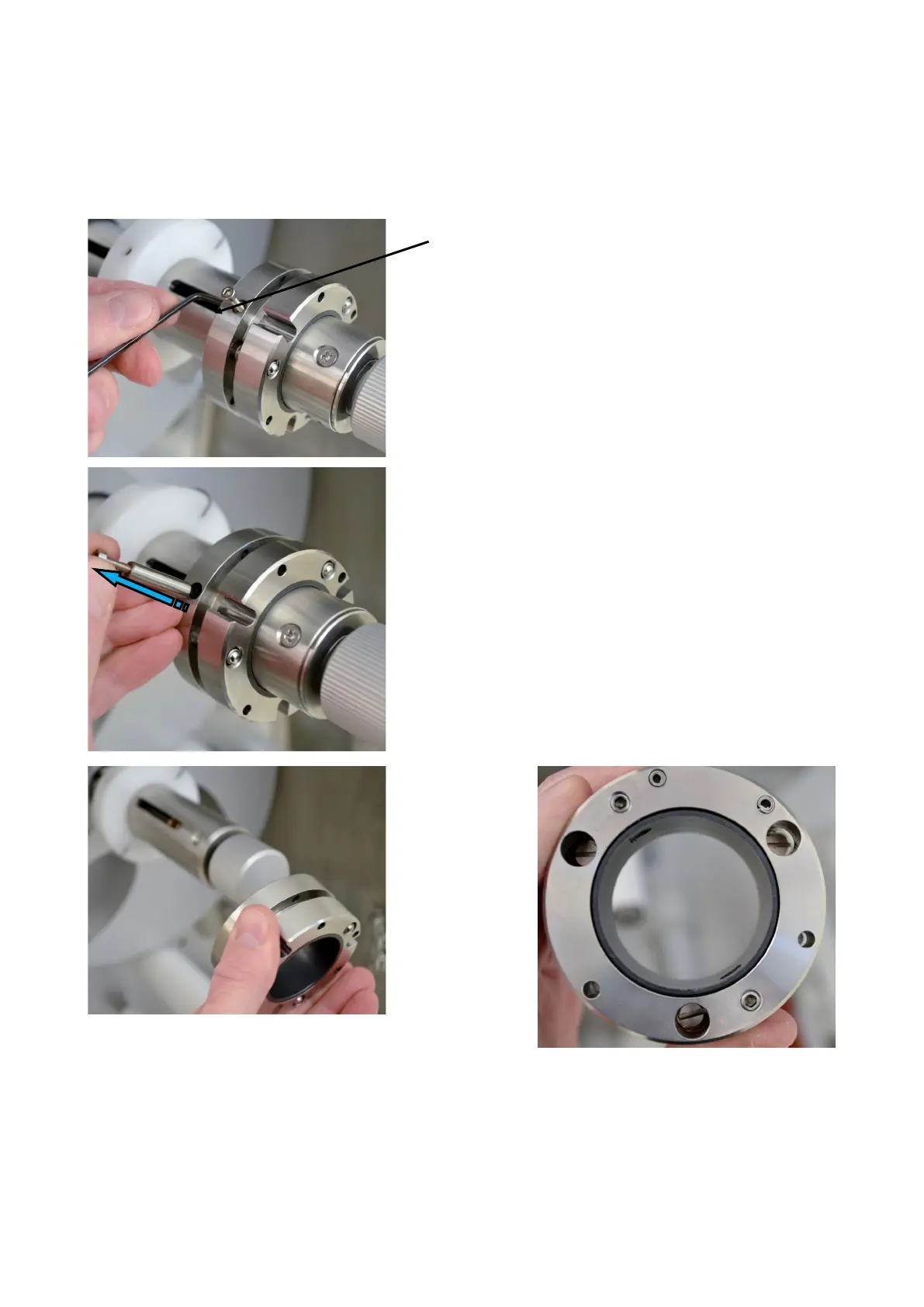

Loosen the set screw which secures each pin
Using the M3 screw, pull out the two centralizer guide
pins
The front ring can now be removed from the central shaft.
Adjust ball plungers as required
Note: care should be taken when refitting to ensure the
pins locate correctly in the assembly, use Loctite 222 on
set screws.
