HI, MI, WI 700 service manual - 1 - Installation
1-15 Issue 9 04/2020
Additional information for conveyor safety switch connections
The infeed and scale switches are already in place for the HI. For MI & WI, all switches are pre-connected.
Connect the outfeed switch wires to the terminals to form a series electrical connection between all three
conveyor safety switches
TB SW TB SW
i/feed o/feed
Earth connections
scale

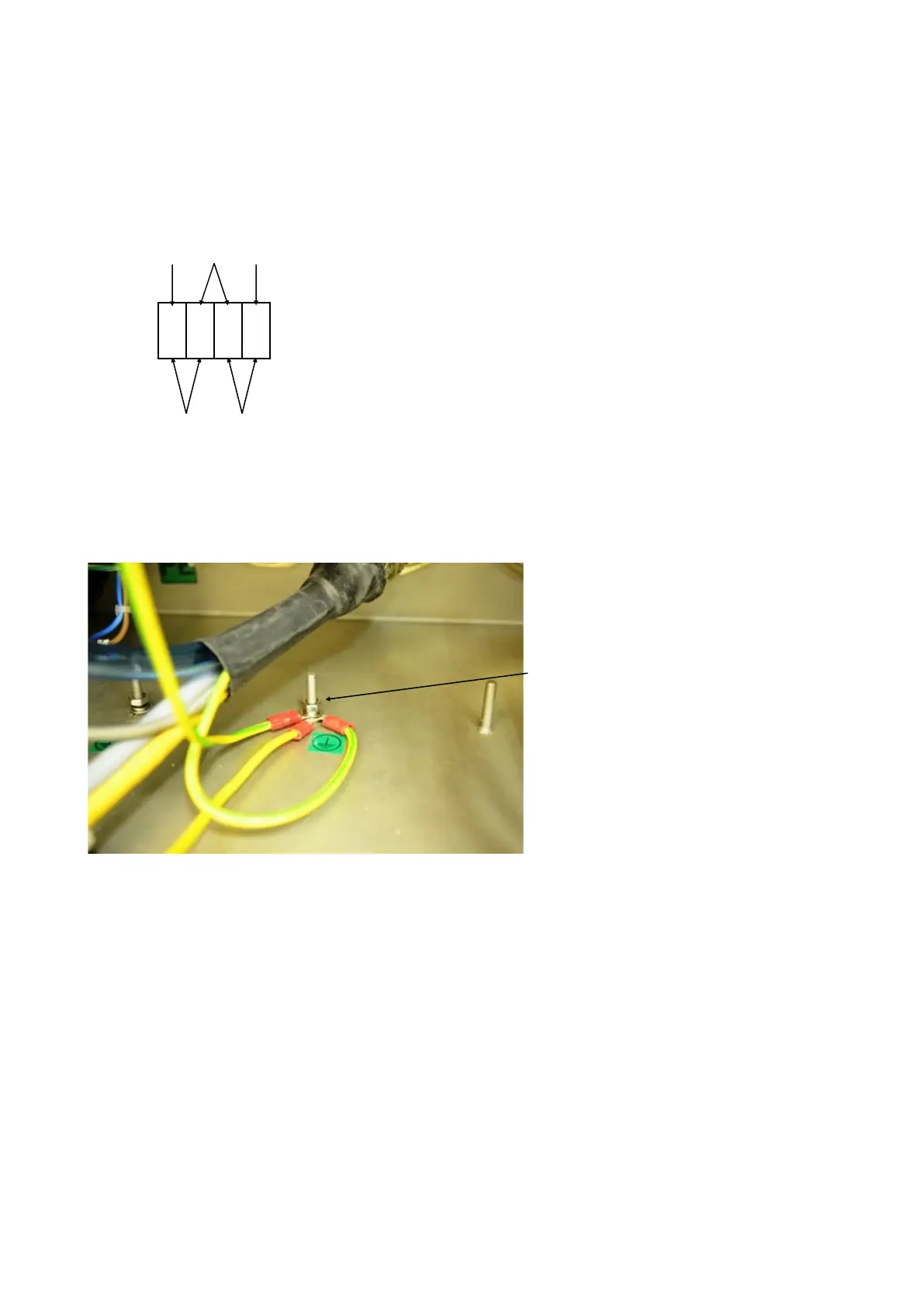

This diagram shows a typical layout of the connections made
for the conveyor safety switches.
Some machine configurations have more than 3 conveyors
which will have additional terminal blocks. The connecting
sequence remains the same, just moving the right hand TB
SW to the last of the new blocks to extend the available
connections.
Connect the yellow / green earth wires to
the cabinet body earth stud
