HI, MI, WI-700 service manual - 4 –servicing
4-113 Issue 9 04/2020

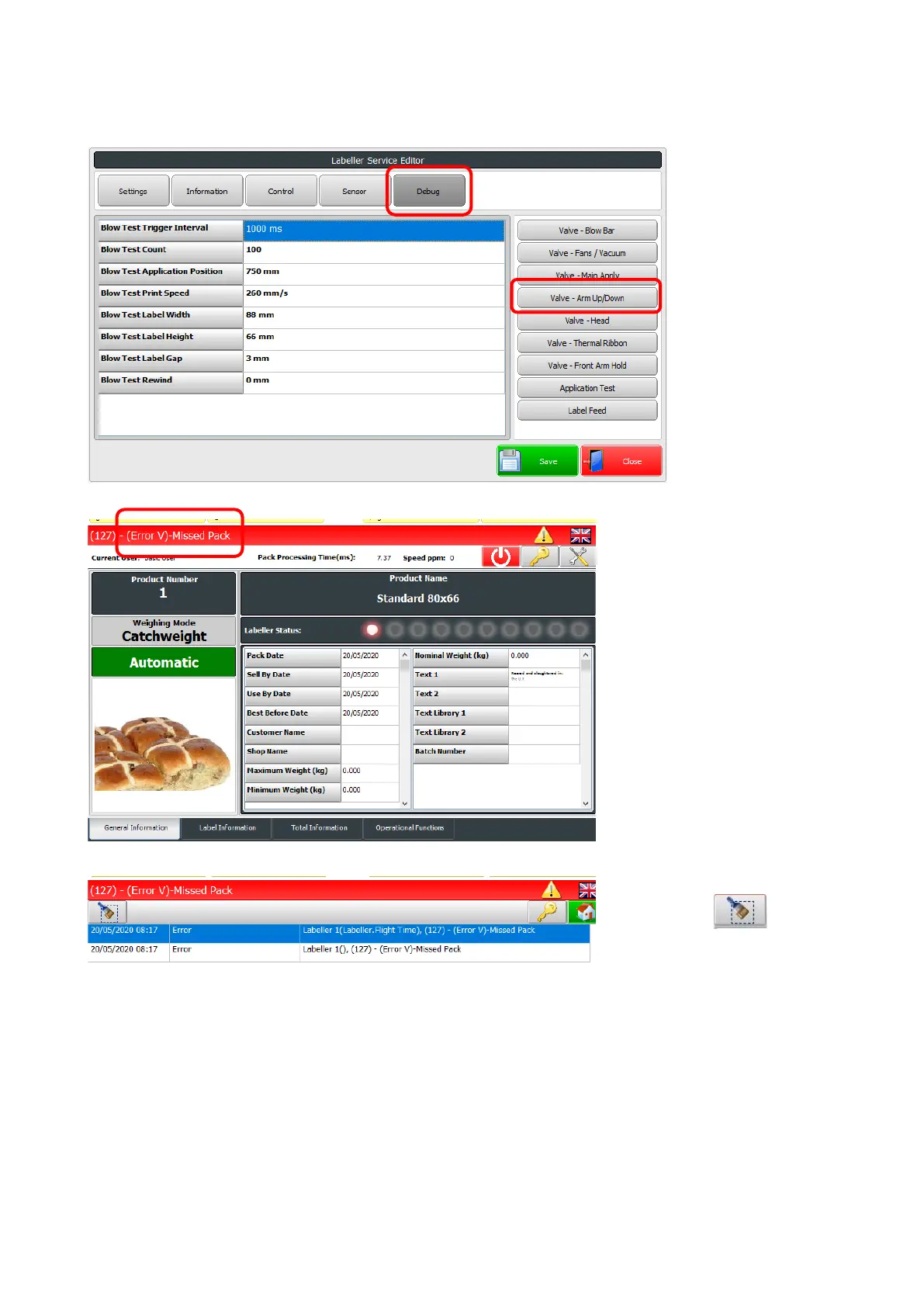

Debug tab -
Valve - Arm Up/Down
- this can be used to
test the operation of
the air cylinder for the
applicator arm in and
out movement
Error message V
If the proximity sensor is not
made in the allowed time
(application time) the machine
will display an error and the
applicator will return to its
home position
Touch the error message area
to access the error description
screen, the error can be
cleared using
