HI, MI, WI-700 service manual - 4 –servicing
4-115 Issue 9 04/2020
Servicing & adjustments

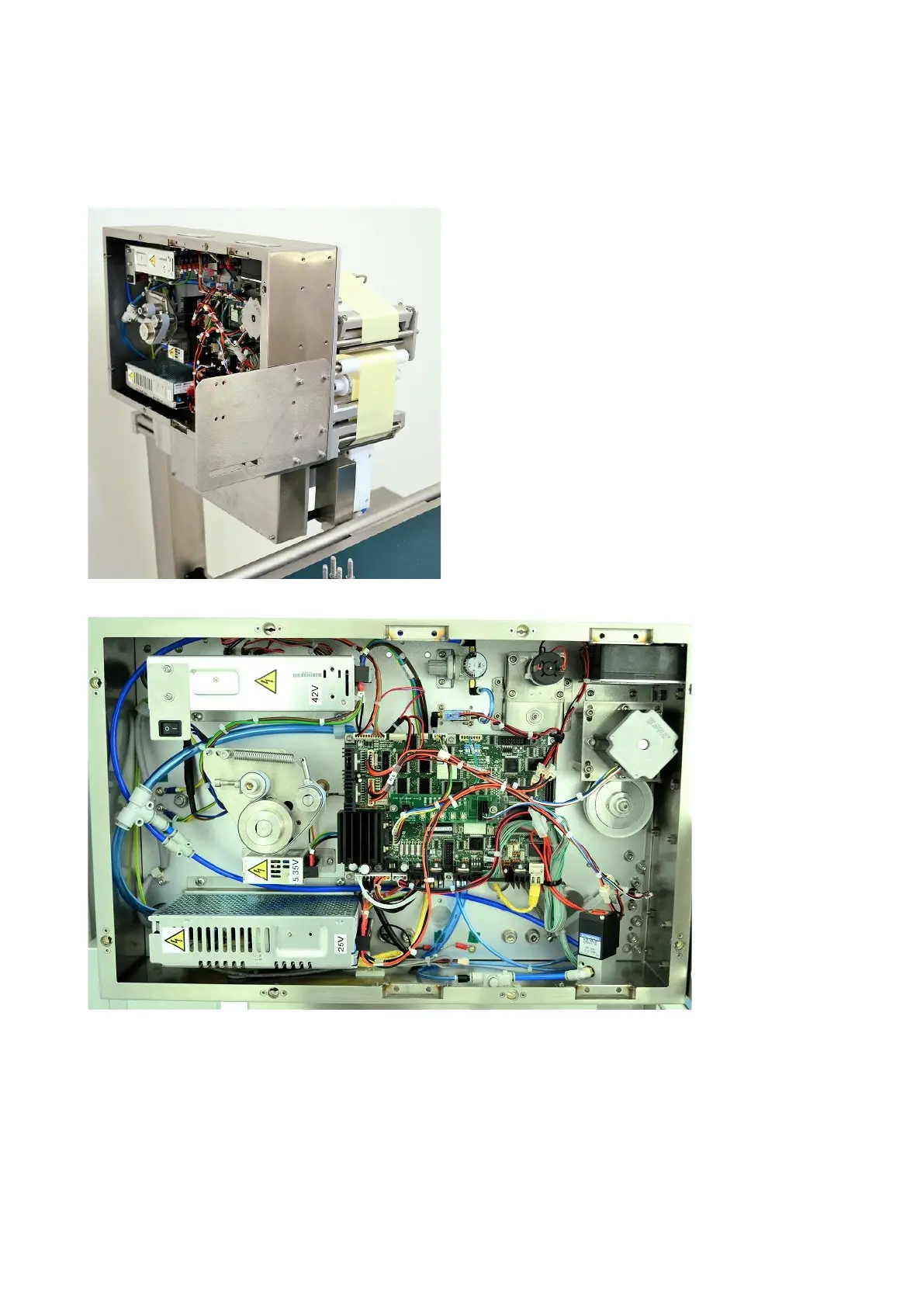

Access to rear of labeller - continued
Remove rear labeller cover
Standard Signature labeller servicing and
adjustments apply, refer to relevant section in
manual for details
Blow bar value & restrictor position
The valve and in-line restrictor are mounted inside the labeller case, adjust restrictor in the standard way
to obtain the required air flow for the blow bar (refer to page 4-73 for blow bar setup)
