HI, MI, WI 700 service manual - 1 - Installation
1-17 Issue 9 04/2020
Additional conveyor (outfeed) before labeller(s)

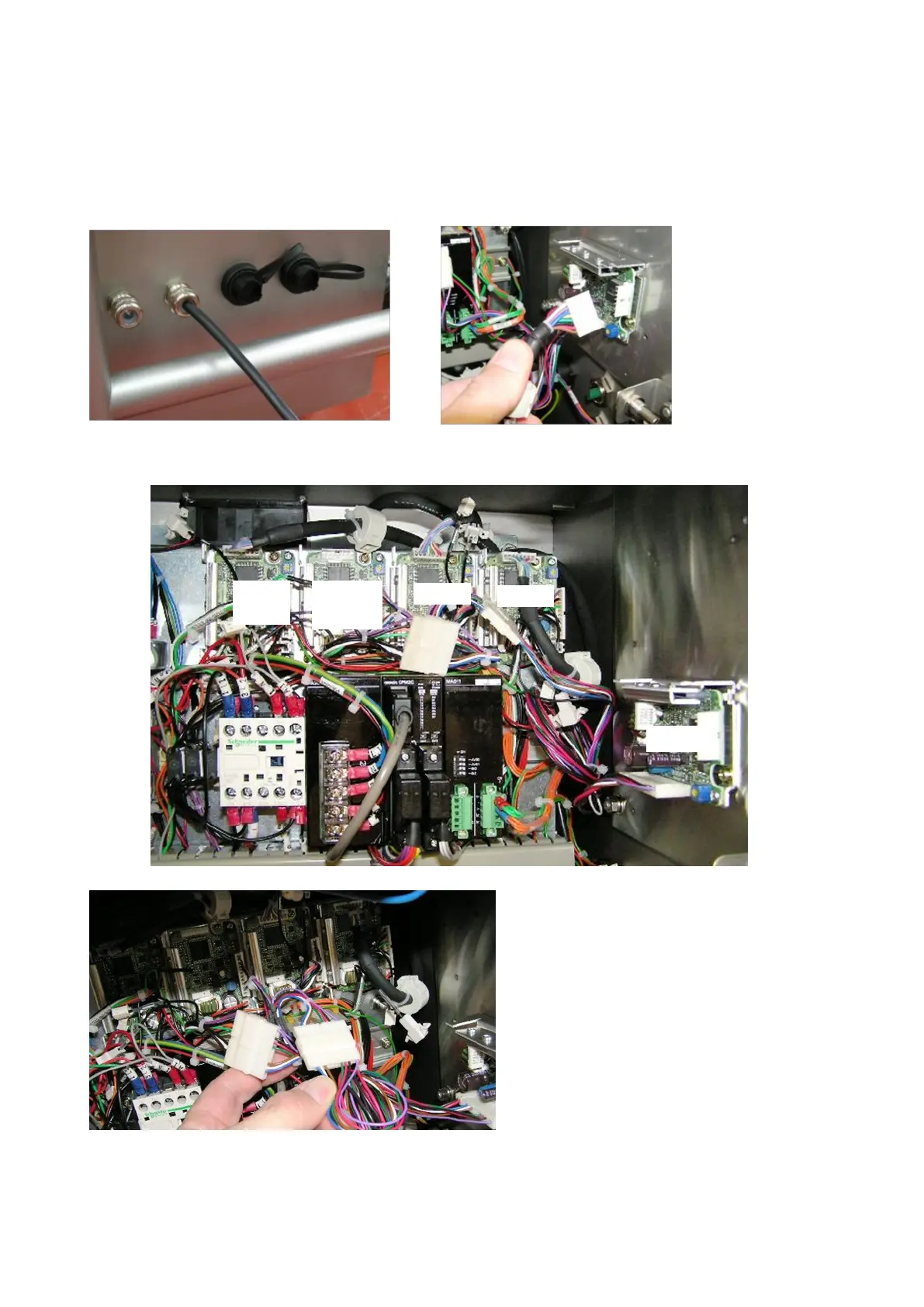

If the machine has an infill conveyor fitted (extra conveyor between scale and outfeed) an additional motor
cable entry may be at the side of the electrical cabinet. This motor cable will be the outfeed conveyor. The
infill conveyor cable will enter at the rear of the cabinet which normally has the outfeed cable.
Infill /
Outfeed
Scale
Infeed
Outfeed
Sub-
Infeed
When the additional infill conveyor
(conveyor between scale and outfeed) is
fitted an additional motor driver is fitted
and linked to the original outfeed driver
