HI, MI, WI-700 service manual - 2 - component parts
2-3 Issue 9 04/2020

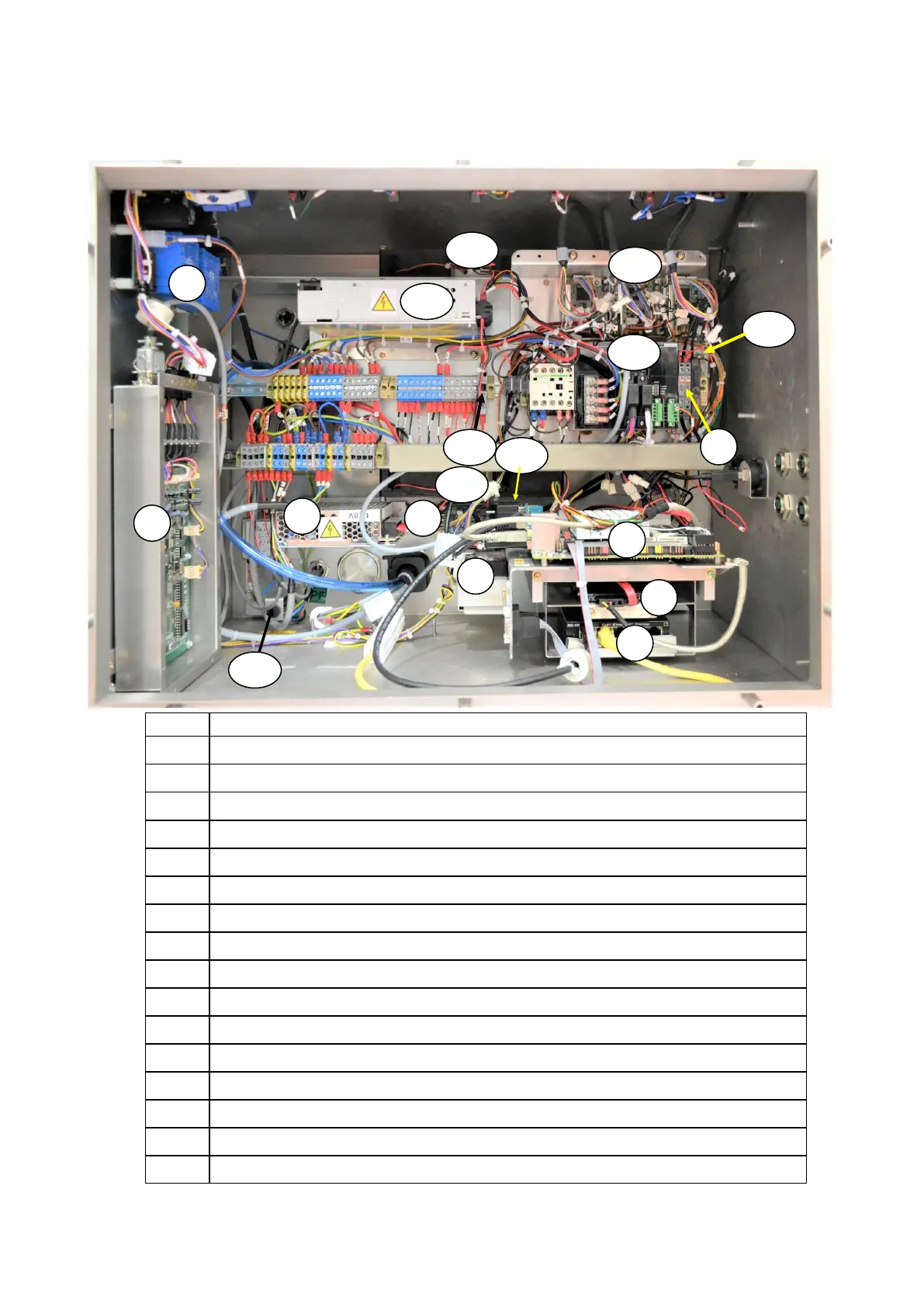

The electrical cabinet
1 Main pc board - LV-67P
2 Hard drive
3 Battery
4 Power supply 15v
5 UPS board
6 5 port Ethernet switch
7 Relays 5v
8 A/D power supply
9 A/D unit
10 Power supply 24v
11 Omron PLC
12 Motor driver board (one for each conveyor motor)
13 Infeed conveyor speed control
14 Primary fuse (10A)
15 Control fuse – stop/start conveyors / conveyor safety switches (315mA)
16 Cooling fans (4 off)
17 Software licence dongle (plugged into USB port)
1
2
3
4
8
9
10
11
13
12
14
15
16
16
17
5
6
7
