HI, MI, WI-700 service manual - 2 - component parts
2-16 Issue 9 04/2020

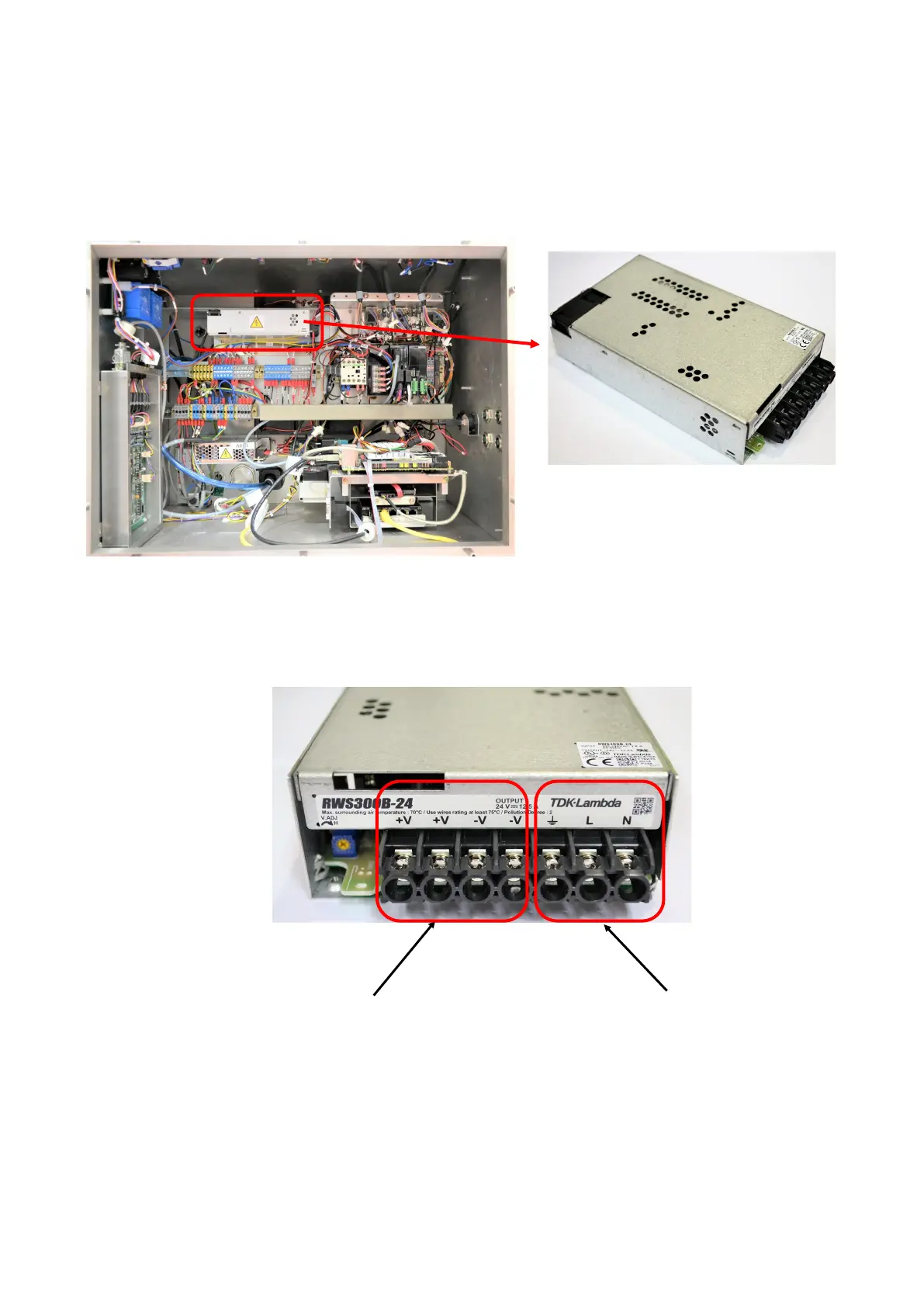

Power supply 24v - RWS300B-24
This 24v PSU supplies 24v to the contactor / conveyor stop – start circuit and the four cooling fans within
the cabinet.
Refer to electrical drawing for exact route of connections.
Output voltage (24v) to motor drivers,
contactor, conveyor stop/start circuit
& cooling fans
Mains power in
• The RWS300B-24 has an output
DC of 24v / 12.5A
• The maximum output power is
300 watts
• AC input voltage range is
85– 265VAC at 47-63Hz
