HI, MI, WI-700 service manual - 2 - component parts
2-22 Issue 9 04/2020
Conveyor direction
The direction of running for each conveyor is controlled by the connection/disconnection of pin 9 (CW/
CCW) of CN2 on the driver board.
The connection/disconnection of this contact is made by the small Molex plug / socket near to this position
on the driver board.

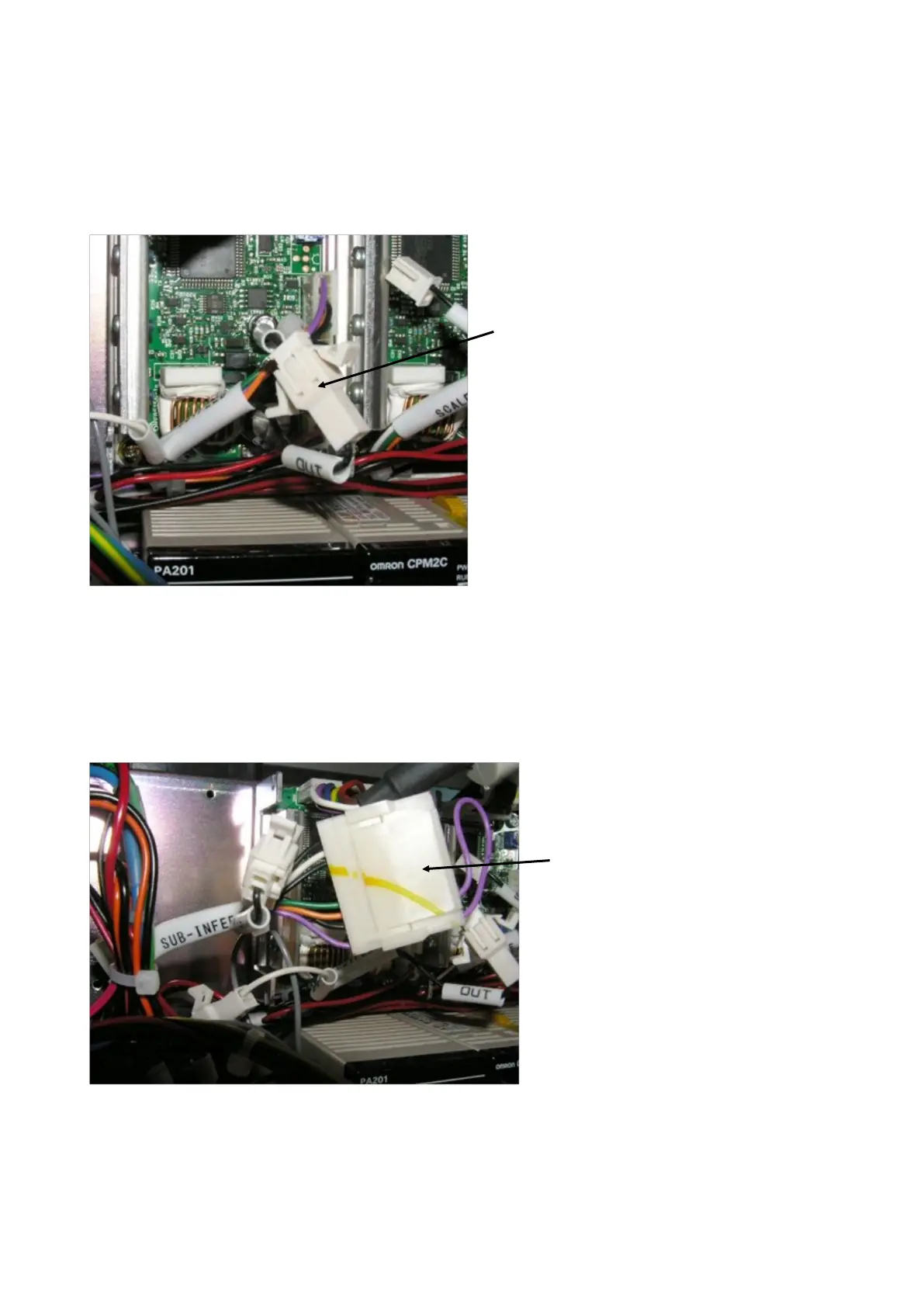

For each driver unit there is this Molex
connection for CW/CCW direction.
Connect or disconnect to obtain the required
direction of selected conveyor
Sub-infeed linked out
A standard machine does not have a sub-infeed but the wiring for this is installed in the cabinet.
To achieve correct running of the standard conveyors the sub-infeed connector has a link wire connected to
it. This link connection must remain in place for the conveyors to operate, only remove when this
connection is being made to another motor driver unit (sub-infeed).
Connection plug to link out sub-infeed
connection when no sub-infeed is
installed.
