Outfeed conveyor, base labeller type
The outfeed conveyors are a fixed length (not sprung loaded as for the other conveyors) and therefore to
remove the conveyor belt, the conveyor roller(s) will need to be removed.
Note: on later Evolution models, the shorter outfeed is a spring loaded type
The nylon gear on one of the rollers on each conveyor is used to transfers the drive to the shorter conveyor
Nylon gear drive

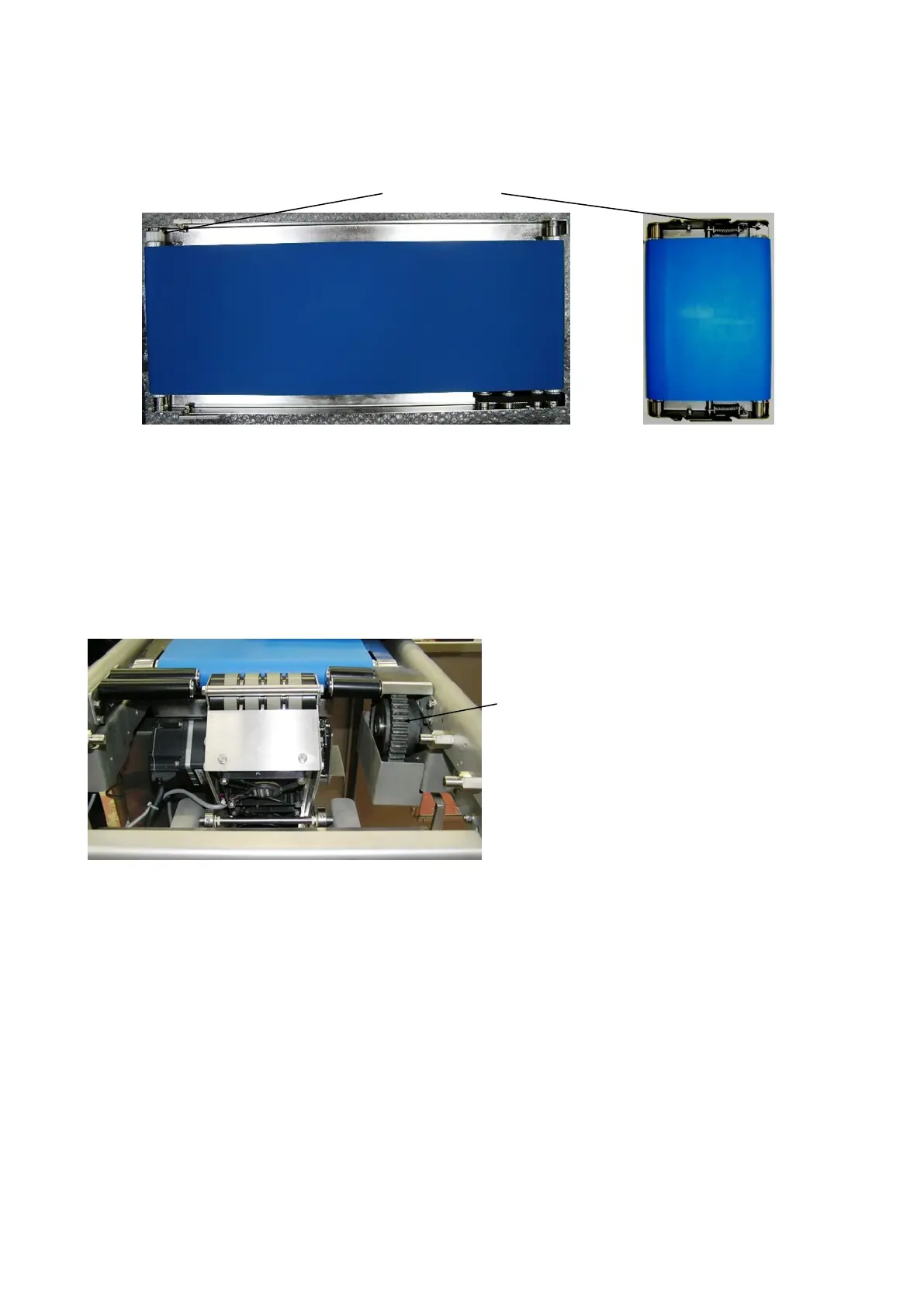

First (long) outfeed Second (short) outfeed
The two outfeed conveyors are driven from
the same motor with the second smaller
conveyor obtaining its drive from a nylon gear
fitted to the side frame
