HI, MI, WI-700 service manual - 2 - component parts
2-56 Issue 9 04/2020

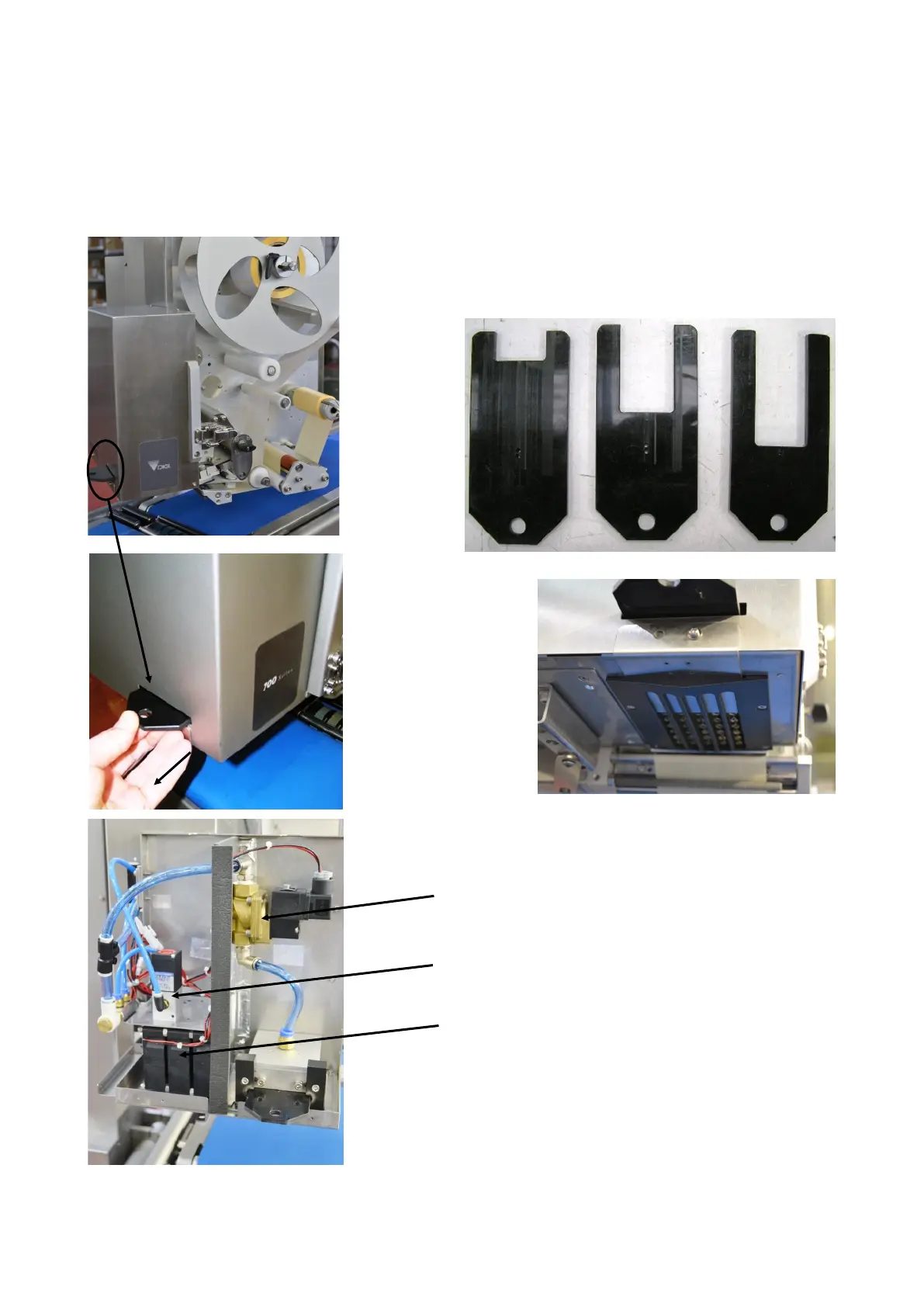

Multi jet air box applicator
The top labeller air box applicator has a slot in the side which allows the fitting of a blanking plate to cover
certain areas of the air jets. This is to concentrate the air flow in a set area for different size labels.
The three sizes supplied with the machine are shown
below.
To change the
blanking plate, pull
out the one
installed and feed
the different sizes
one in, pushing it
all the way home.
Solenoid valve for air jets
Solenoid vale for blow bar
Triple fan assembly to hold label on applicator
