Digi XBee Getting Started Guide

©2011DigiInternational,Inc.. 18
Part 4: 
Put the XBee Module into Deep Sleep Mode
Twotypesofsleepareavailableonthemodule;thefirstisassociatedsleep.Inassociatedsleepmodethe
modulewillremembertheconnectiontothelastaccesspointorrouteritwasconnectedto.Formore
informationonassociatedsleepseetheUser'sManual.
Thesecondtypeofsleepisdeepsleep;deepsleepmodewillcompletelypowerdowntheWi‐Fiportion
ofthemodule.DeepsleepisthelowestcurrentmodefortheXBeeWi‐Fimodule.
ToenterdeepsleepandwakeuptheXBeeWi‐Fimoduleperformthefollowingsteps:

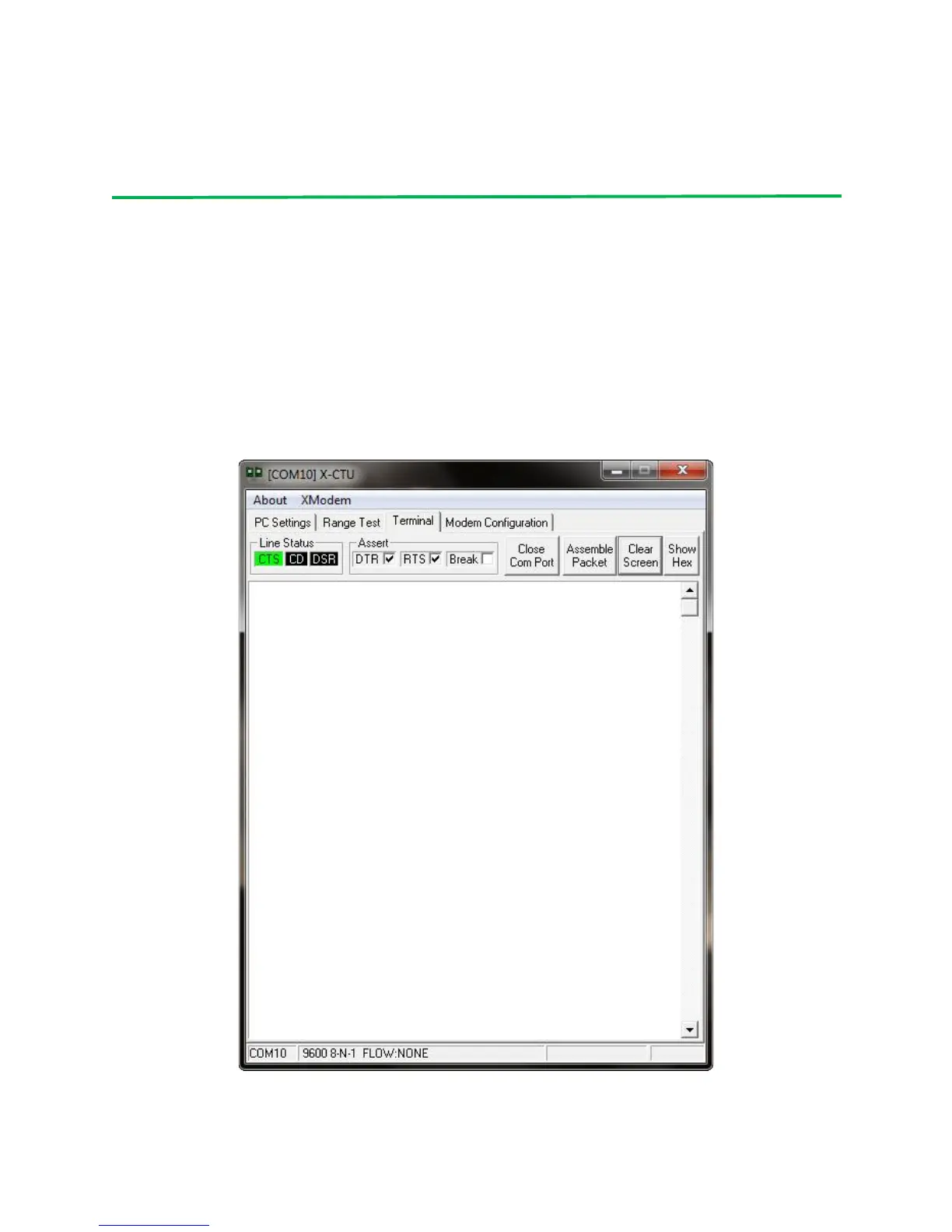

1.MakesuretheX‐CTUTerminaltabisselected.

Digi XBee Specifications

General

Operating Frequency	2.4 GHz
RF Data Rate	250 kbps
Model	XBee S2C
Category	Control Unit
Operating Voltage	2.1 to 3.6V DC
Operating Temperature	-40 to +85 °C
Interface	UART
Dimensions	24.38 x 27.61 x 9.14 mm
