DG-GS1528HP/C User Manual
46
14. GMRP configuration
(1) GMRP Global Configuration Page

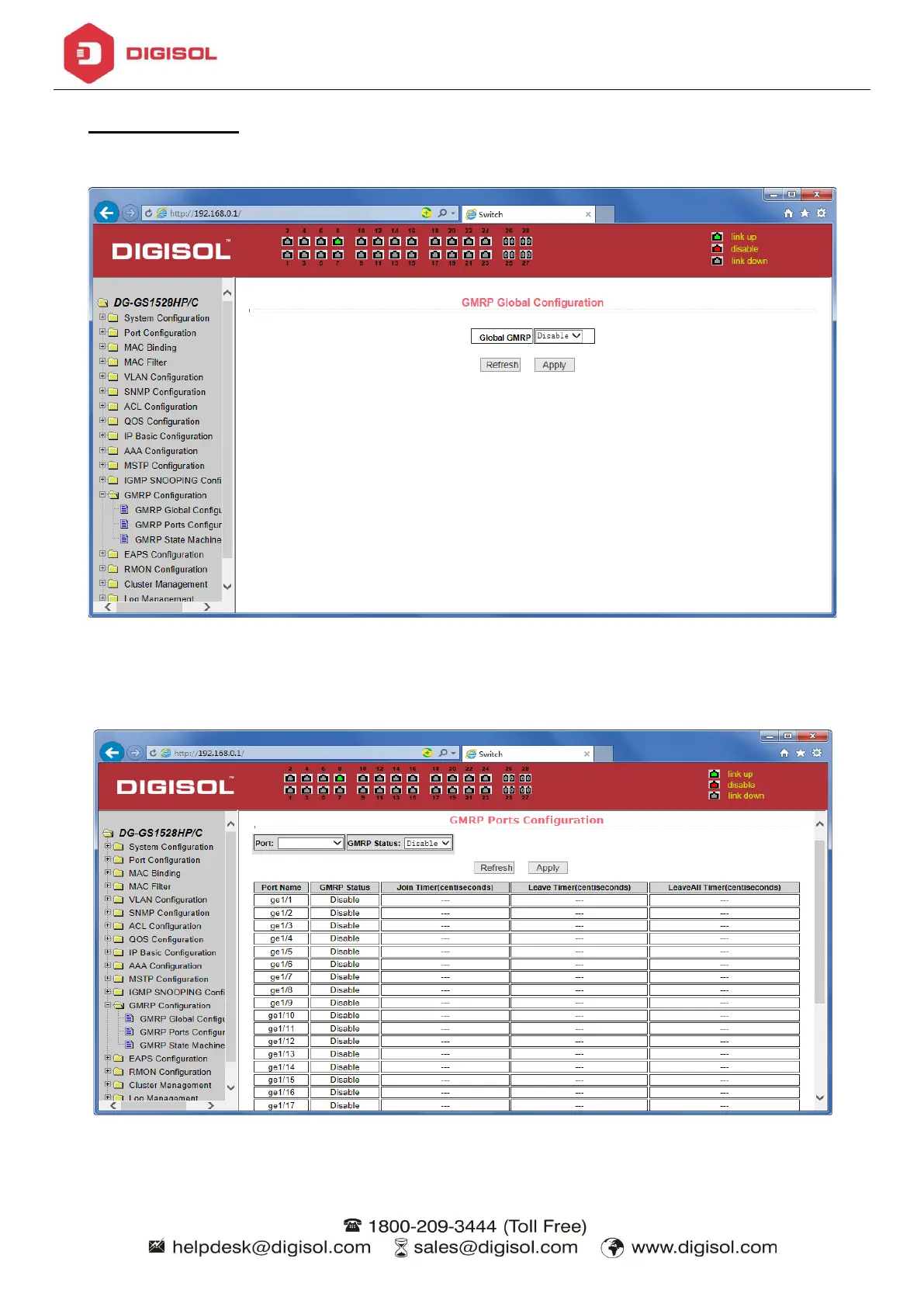

Figure 55 shows the GMRP global configuration page. Users can enable GMRP through this page.
Figure 55 GMRP Global Configuration Page
(2) GMRP port configuration page
Figure 56 shows the GMRP port configuration page. You can use this page to enable the GMRP port and view
the port information.
Figure 56 GMRP Port Configuration Page

Digisol DG-GS1528HP/C Specifications

General

Type	Managed
Ports	28
Number of Ports	28
PoE Ports	24
PoE Standard	IEEE 802.3af/at
PoE Power Budget	370W
Switching Capacity	56Gbps
MAC Address Table	8K
Jumbo Frame	9KB
Power Supply	Internal
Input Voltage	100-240V AC, 50/60 Hz
Certifications	CE, FCC, RoHS
Power Consumption	400W (Max.)
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% non-condensing
Dimensions (W x D x H)	440 x 44 x mm
Port Type	Gigabit Ethernet
Forwarding Rate	41.67Mpps
