6. VLAN Configuration
（1）VLAN information page

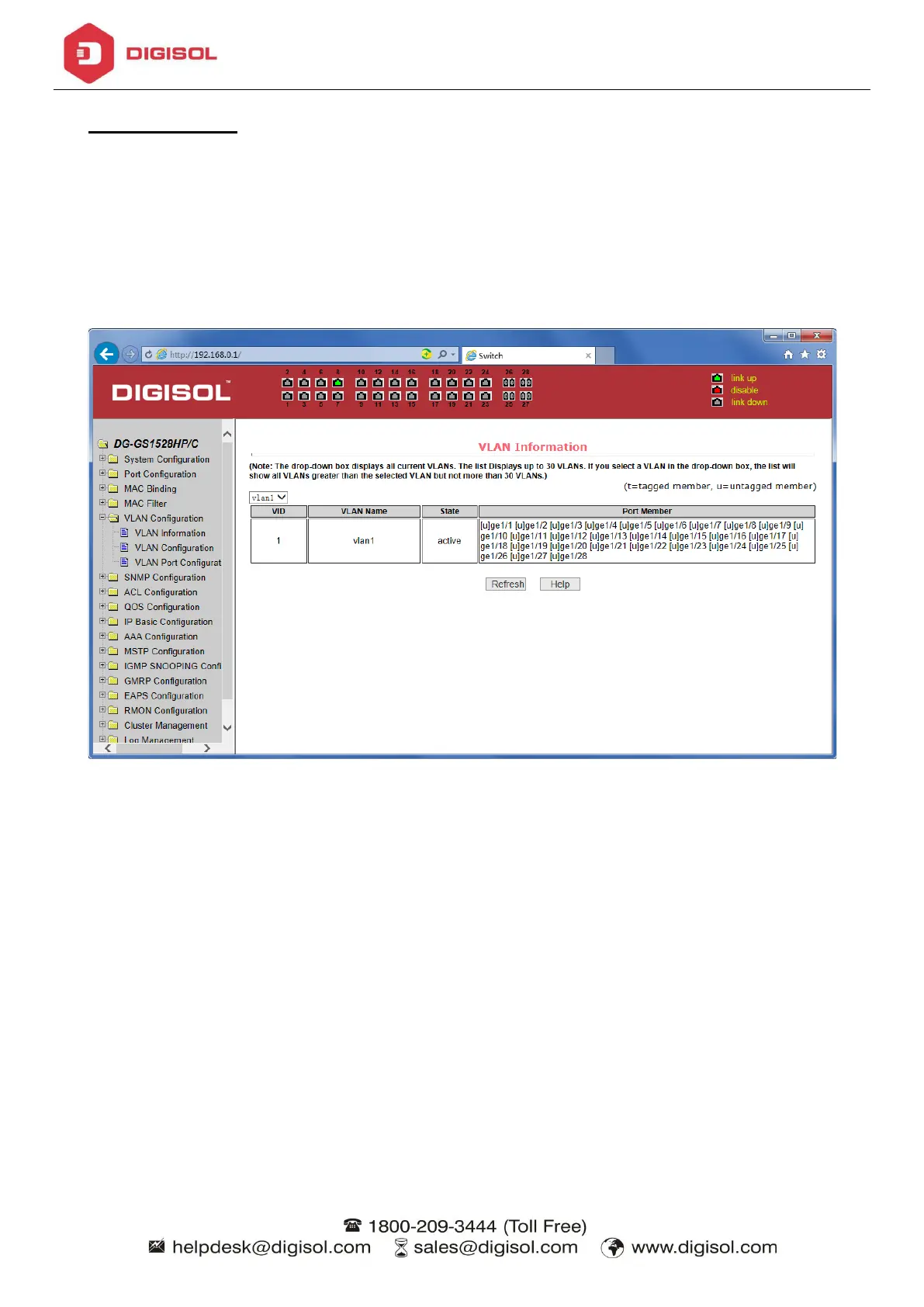

Figure 30 shows the current VLAN information page. This page is read-only page displays the current VLAN
configuration information l, including the VID, state and port members. select VLAN from the drop-down VID, shows
the port information of the Port VLAN members.
A port may not be a member of VLAN, which can be VLAN-tagged or untagged members.The meanings of
characters pls see the following info:
t Tagged the port is the VLAN tagged member
u Untagged the port is the VLAN untagged member
Figure 30 VLAN information page
（2）Static VLAN configuration page
Figure 31 is the static VLAN configuration page that allows users to create VLAN.
If you want to create a new VLAN, the user input VID on activity line, ranging from 2 to 4094. VLAN name is
generated depend on VLAN ID and cannot be modified. Click Apply button, then the list box displays the user-created
VLAN's VID and VLAN name. Switch by default created VLAN1, and VLAN1 cannot be removed
If you want to delete a VLAN, the user needs to click the appropriate VLAN of the list box. The VLAN will be
displayed in the activity line, click the Remove (Delete) key to delete the VLAN, the same time, the information of the
VLAN to remove from the list box.
