POSITIONING THE SCREEN AND PROJECTOR
Rev B September 2016
Roll and pitch

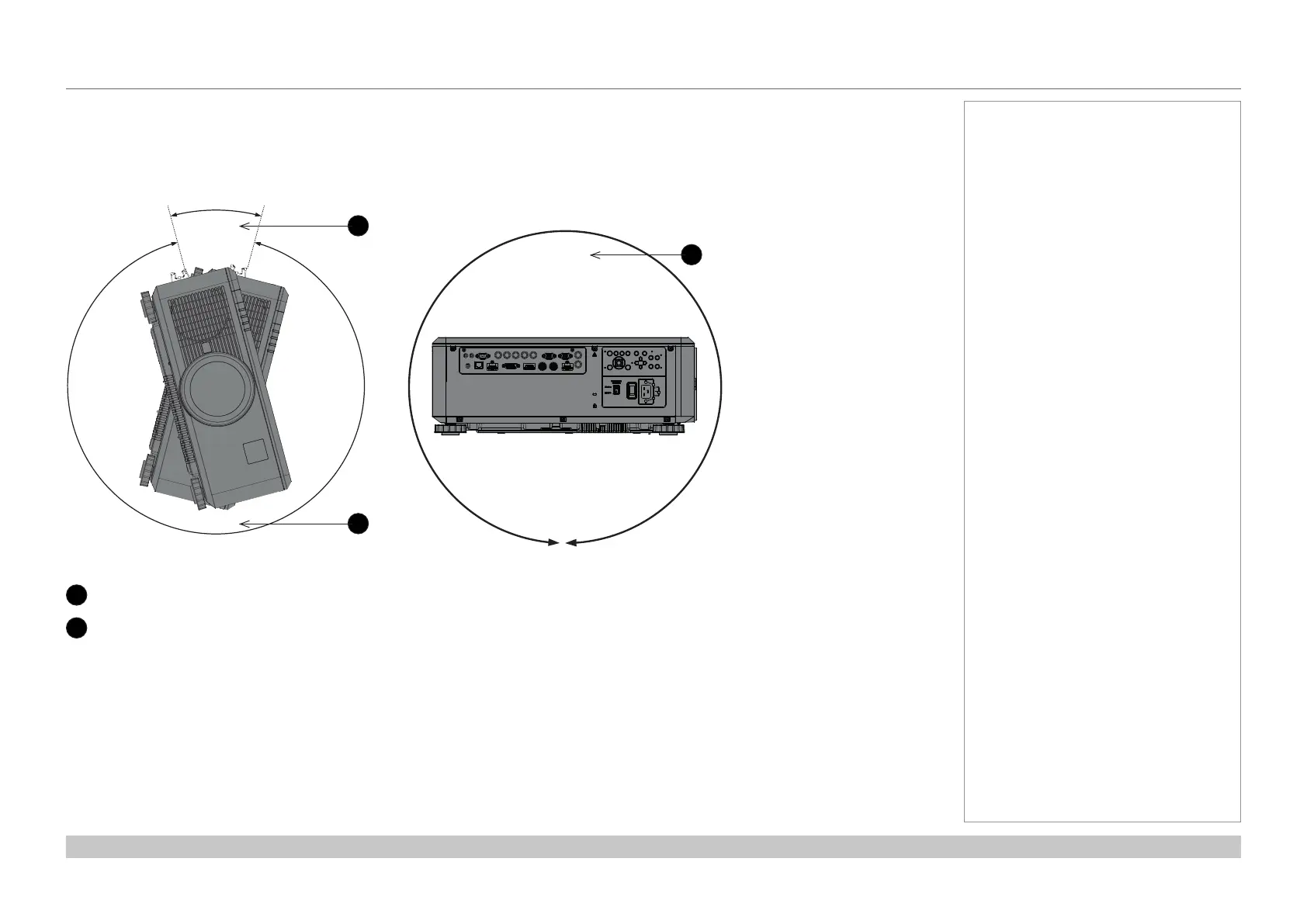

The projector can be operated in numerous positions.
It is not recommended to position the projector in portrait mode with inputs facing upward, as shown in the diagram.
1
Positions to avoid: inputs side up
2
Recommended positions
Notes
Pitch
360°
2
30°
330°
2
1
Roll
