Digital Projection E-Vision Laser 8500 Series - Pulldowns - Conversion into Destination Formats; 2:3 (Normal) Pulldown

page 88
Digital Projection E-Vision Laser 7500 & 8500 Series
Reference Guide
FRAME RATES AND PULLDOWNS EXPLAINED
Rev B September 2016
Pulldowns - conversion into destination formats
Pulldowns are a method of converting a 24p source into a different destination format by adding extra frames to the source.
2:3 (normal) pulldown

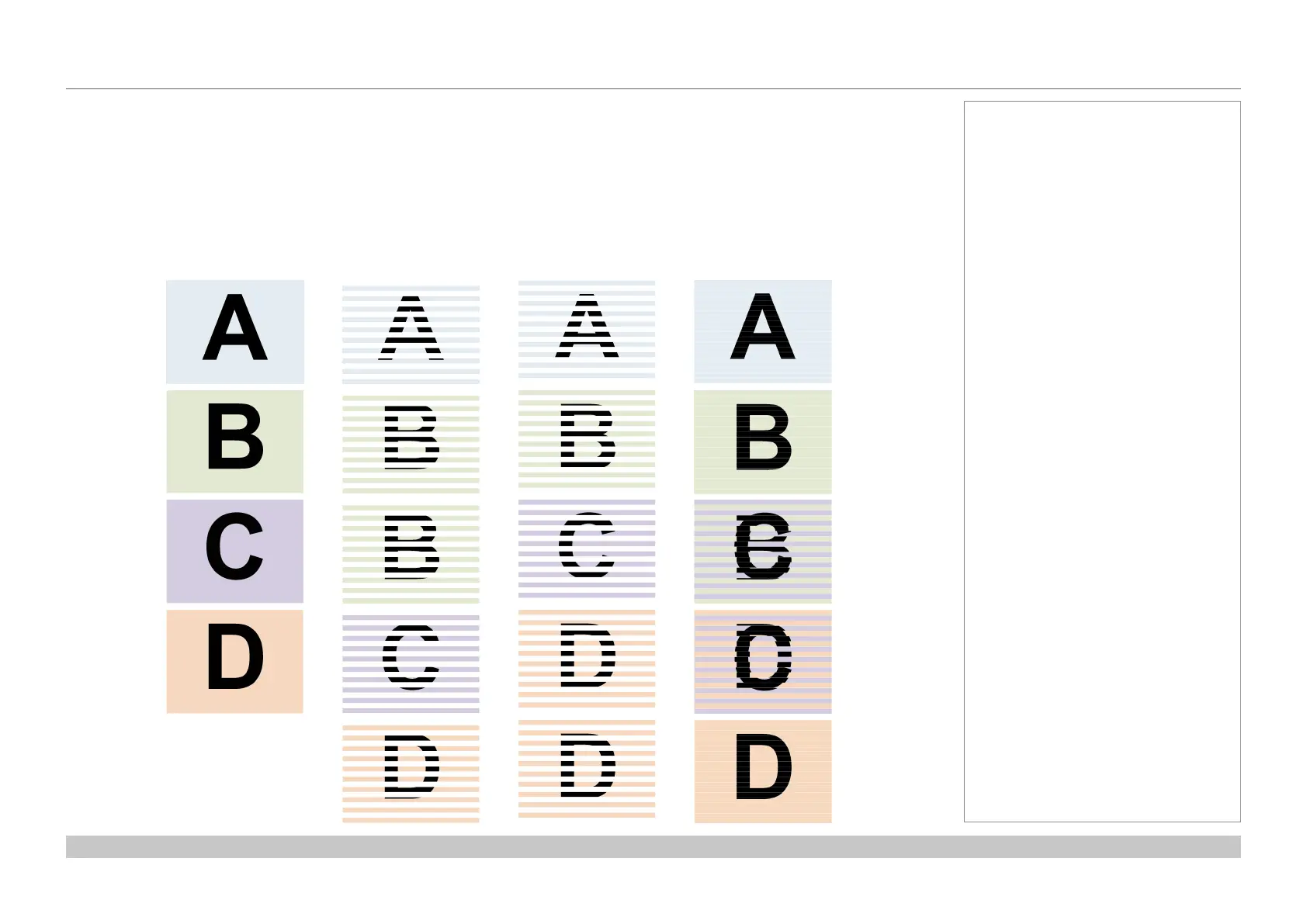

This method is used to convert a 24p source (lm) into a 60i destination (NTSC video) by adding two extra elds for every four frames,
effectively increasing the frame rate to 30 fps. The frame is split into elds and then two elds are repeated for every four original frames as
shown in the illustration below.
Notes
Original lm,
24 fps
Field 1 (odd) Field 2 (even) Resulting video,
30 fps
