CHANGING THE LENS
Rev B September 2016
Changing The Lens

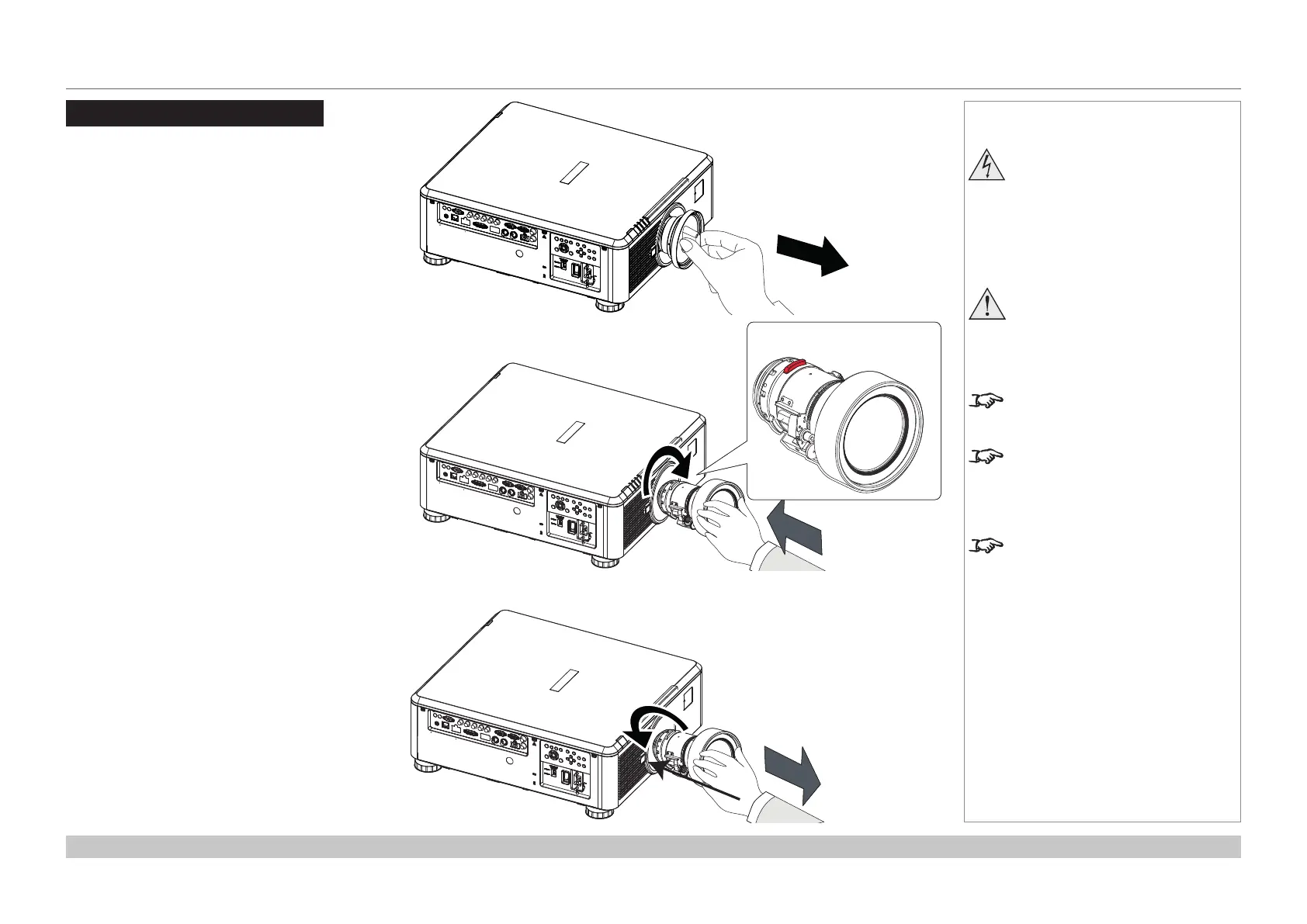

Inserting a new lens
1. Remove the front and rear lens caps.
2. Position the lens so that the labels are at the
top, and gently insert it all the way into the lens
mount.
3. Push the lens in rmly and turn it clockwise until
it clicks into place.
Removing the lens
1. Push in the lens release lever, and turn the lens
anti-clockwise.
2. Remove the lens..
Notes
Before changing the lens,
always make sure the projector
is switched off and fully
disconnected from its power
supply.
When changing the lens, avoid
using excessive force as this may
damage the equipment.
The lens is shipped separately.
Take care to preserve the original
lens packaging and protective caps
for future use.
The projector will not power on
without the lens tted.
