SCREEN REQUIREMENTS
Rev B September 2016
Screen Requirements
Fitting the image to the DMD™
If the source image supplied to the projector is smaller than the DMD™ resolution, the image will not ll the DMD™. The following examples
show how a number of common formats may be displayed, depending on your DMD™ resolution.

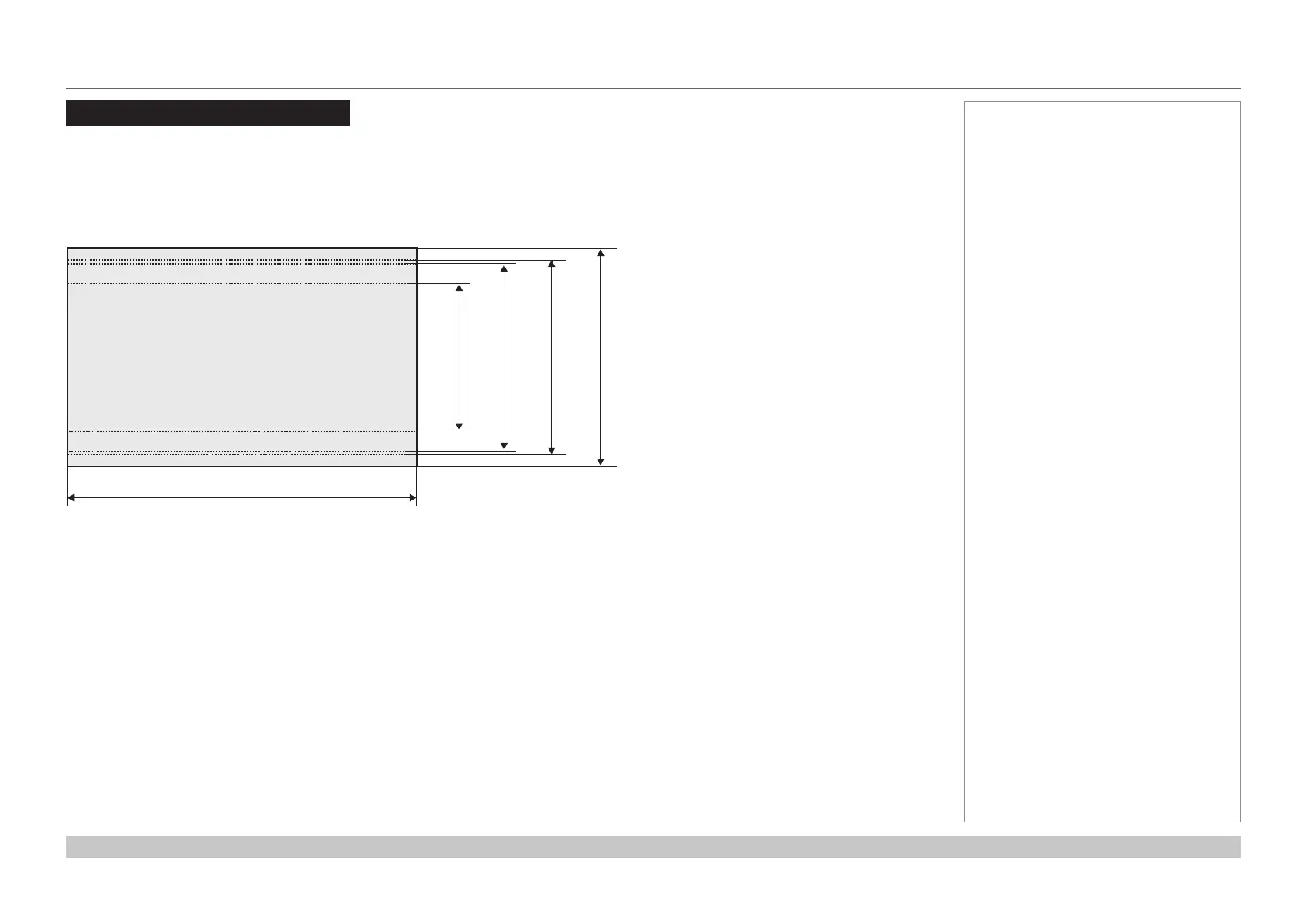

WUXGA images displayed full width
Notes
full width = 1920 pixels
2.35:1(Scope)
= 817 pixels
1.85:1
= 1037 pixels
16:9 = 1.78:1
= 1080 pixels
full height
= 1200 pixels
