higher settings spread the same number of
reflections out over a longer period of time.
Ranges from 25 to 300 milliseconds. (ER set-
tings in BigVerb only).
ER Shape......................Controls the shape of the early reflection enve-
lope. There are 10 different early reflection

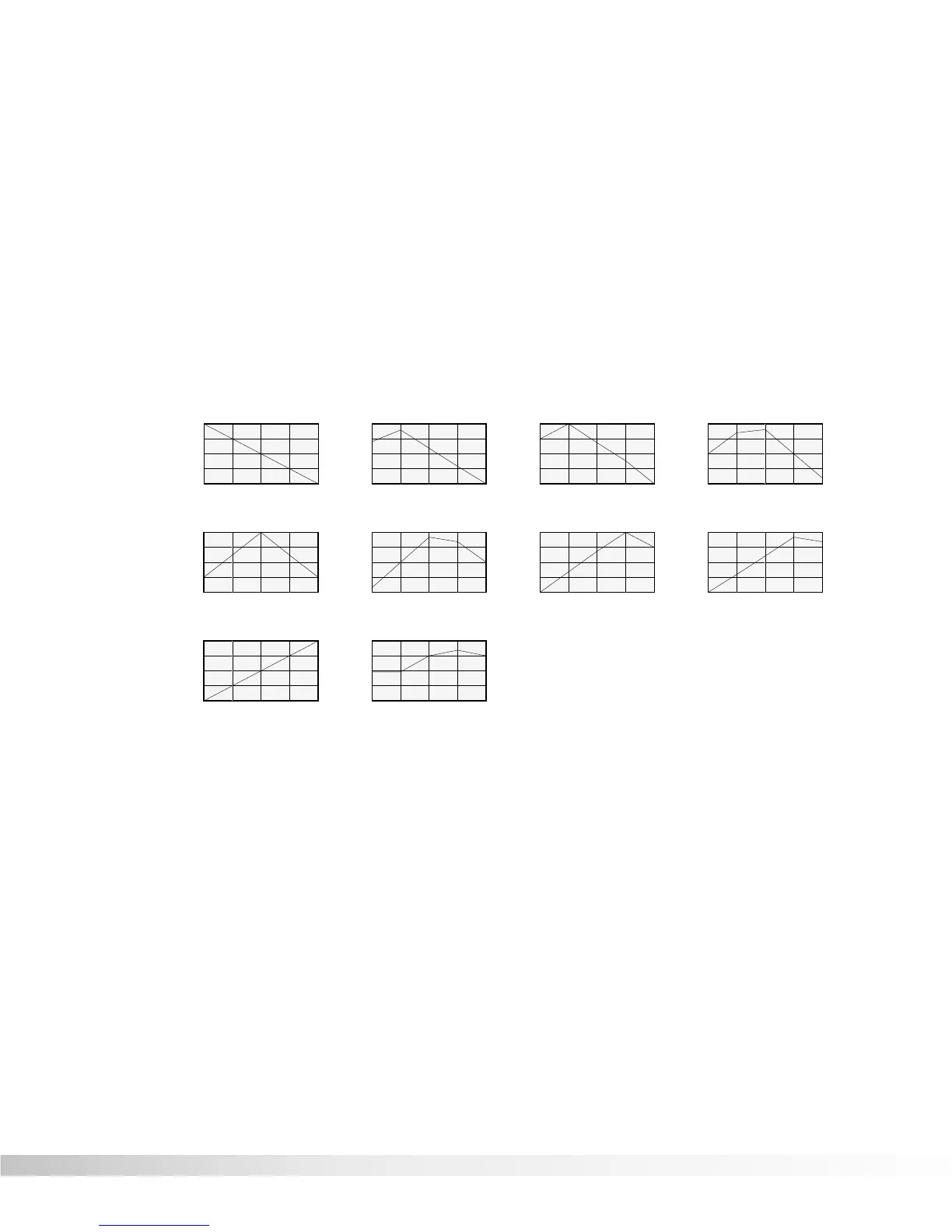

envelope shapes. The following diagram
shows all the available early reflection enve-
lope shapes. The numbers across the top of
each envelope shape graph represent the rel-
ative level of the signal at each point in the
envelope. (ER settings in BigVerb only.)
ER Diffusion ..................Controls the smoothness of the early reflec-
tions. Ranges from 1 to 10. (ER settings in
BigVerb only.)
ER Level........................Master level control for early reflections.
Ranges from 0 to 100. (ER settings in BigVerb
only.)
RV Predelay..................Controls the amount of time before the first
room reverberations are heard. In an actual
acoustic space, the amount of reverberation
predelay depends largely on the shape and
size of the room and the placement of both lis-
tener and sound source within the room. Long
RV Predelay settings place the reverberation
after the program material rather than in sync
with it. Ranges in milliseconds from 0 to 100.
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 1
-5 dB
-10 dB
-15 dB
-20 dB0 dB -5 dB -10 dB -15 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 2
-5 dB
-10 dB
-15 dB
-20 dB-3 dB -2 dB -8 dB -14 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 3
-5 dB
-10 dB
-15 dB
-20 dB-5 dB 0 dB -6.6 dB -13.3 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 4
-5 dB
-10 dB
-15 dB
-18 dB-10 dB -3 dB -2 dB -10 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 5
-5 dB
-10 dB
-15 dB
-15 dB-15 dB -7.5 dB 0 dB -7.5 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 6
-5 dB
-10 dB
-15 dB
-10 dB-18 dB -10 dB -2 dB -3 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 7
-5 dB
-10 dB
-15 dB
-5 dB-20 dB -13.3 dB -6.6 dB 0 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 8
-5 dB
-10 dB
-15 dB
-3 dB-20 dB -14 dB -8 dB -2 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 10
-5 dB
-10 dB
-15 dB
-5 dB-10 dB -10 dB -5 dB -3 dB
-20 dB
0 dB
TIME
AMPLITUDE IN dB
SHAPE = 9
-5 dB
-10 dB
-15 dB
0 dB-20 dB -15 dB -10 dB -5 dB
Section 4 - Effects and Parameters
RP-12 Owner’s Manual
