A Guided Tour of the RP14D

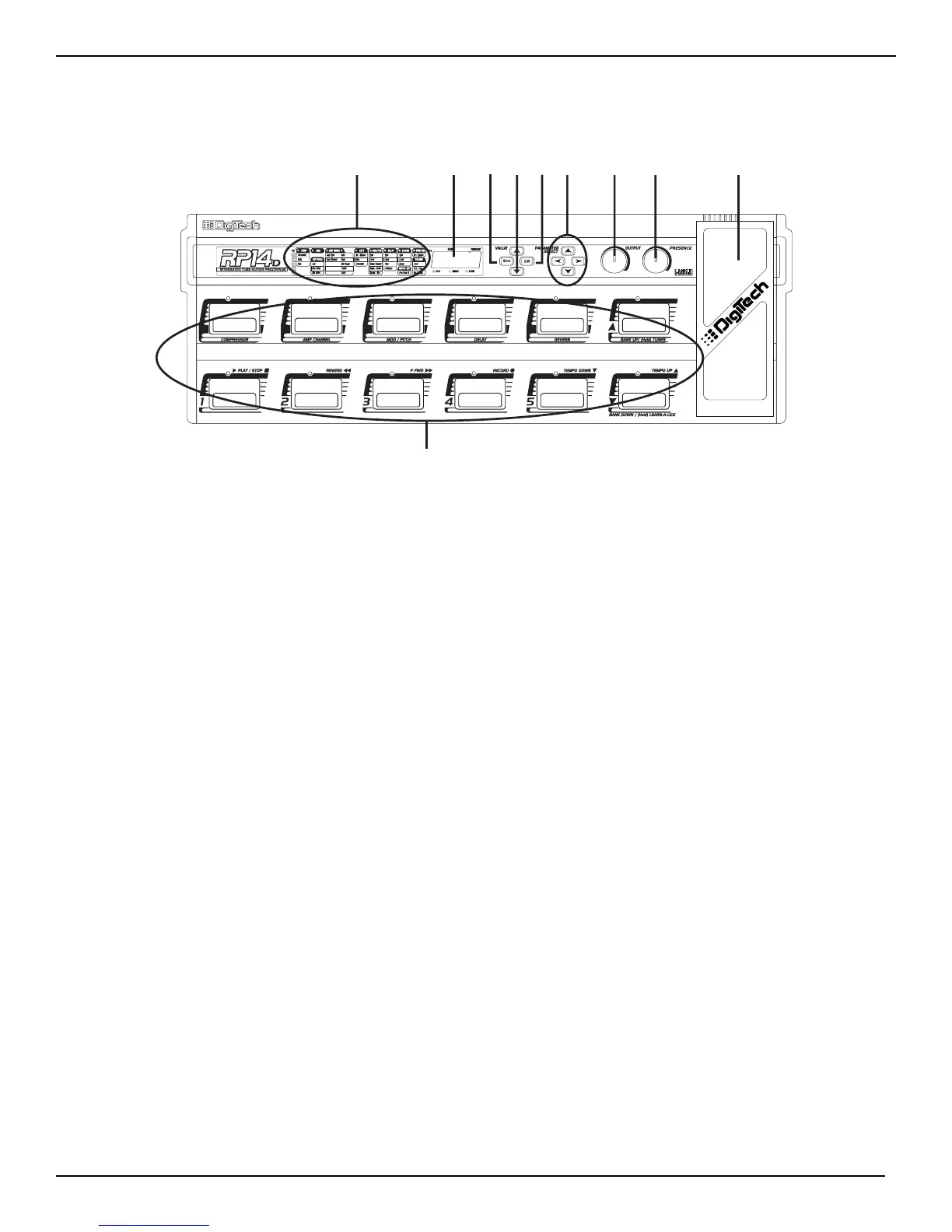

The Front Panel
1. Footswitches - The footswitches are used to select Programs, change Banks, access the Tuner, turn individual effects on and off,
change Amp Channels, select functions in Learn-A-Lick mode, or bypass the RP14D.
2 Matrix - The matrix provides all information regarding the current Program, parameter edit functions, and tuning status. While in
program mode, the horizontal LEDs of the Matrix will provide a visual indication of which effects are in use for the current
program. While in Edit mode, the horizontal LEDs will indicate which effect is being edited, and the vertical LEDs will indicate
the effects parameter that has been selected. Following the horizontal and vertical LEDs across the matrix to the point where
they intersect will indicate which parameter is selected. The Parameter buttons will select different effects or parameters which
will be represented by the corresponding LEDs lighting. In Tuner mode, the horizontal LEDs indicate whether you are sharp,
flat, or in tune. In Learn-A-Lick mode, the horizontal LEDs provide a timing reference for record and playback.
3. Numeric Display - The Numeric Display performs several different functions depending on the mode that has been selected. In
Program mode, the Numeric Display will show the currently selected Bank and Program number and momentarily
flash the active Amp Model when the Amp Channel is switched. In Edit mode, the Numeric Display will show the
value of the currently selected parameter. In Tuner mode, the Numeric Display will show the note played.
4. Store Button- The Store button is used to save your custom edits to the user Programs.
5. Value Up/Down Buttons - The Value Up and Down buttons serve a dual purpose. In Program mode, they will advance and decrement
through all factory and user Programs. In Edit mode, they will increase or decrease the value of the
currently selected parameter.
6. Edit Button - This button will take you in and out of the Edit mode.
7. Parameter Select Buttons - The Parameter buttons are used to select the effects, and parameters to edit. The Left and Right
Parameter buttons are used to select the Effect which will be represented by the horizontal LED. The Up
and Down Parameter buttons are used to select the Parameter of the selected Effect. Simply follow the
horizontal and vertical LEDs across the Matrix to the point where they intersect. This will be the
parameter you are about to edit.
8. Output Level - This knob controls the level of signal coming out of the RP14D.
