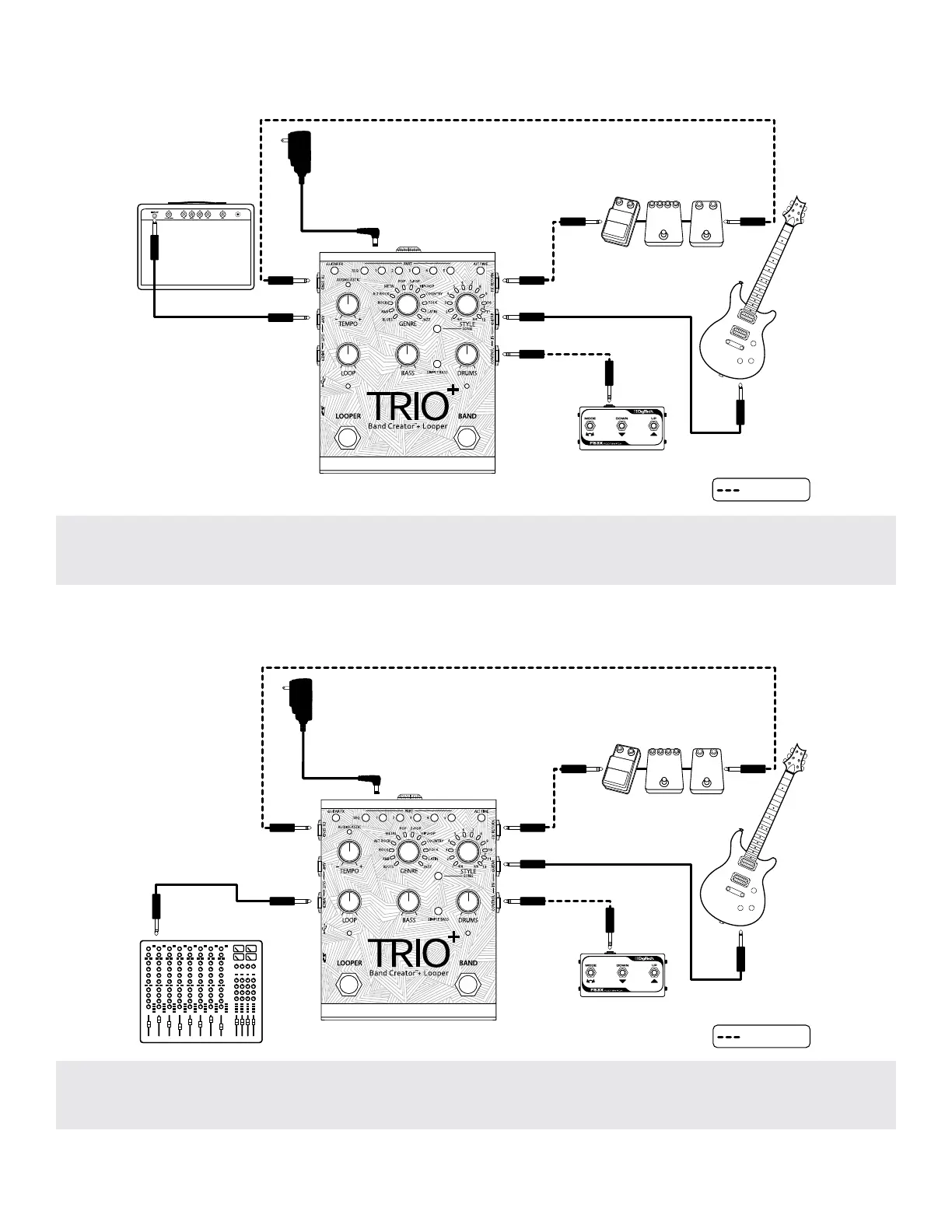

CONNECTION DIAGRAMS
Amplifier Setup
IN
IN
OUT
OUT
IN
IN
IN
OUT
OUT
FS3X Footswitch
TRS CABLE
Optional
Amp
Use only unbalanced TS instrument cables for audio connections.
HARMAN
PS0913DC (9VDC)
Power Adapter
Guitar Effects
NOTE: When only the AMP OUT jack is used, an inverse cabinet emulation is added to the bass and drums
signal. See 'Output Jack Operation' on page 15 for more information.
Mixer Setup
IN
IN
OUT
IN
IN
OUT
OUT
IN
FS3X Footswitch
TRS CABLE
Optional
Use only unbalanced TS instrument cables for audio connections.
Mixer
HARMAN
PS0913DC (9VDC)
Power Adapter
Guitar Effects
Mixer
OUT
IN
NOTE: When only the MIXER OUT jack is used, speaker cabinet emulation is added to the guitar signal. See
'Output Jack Operation' on page 15 for more information.
