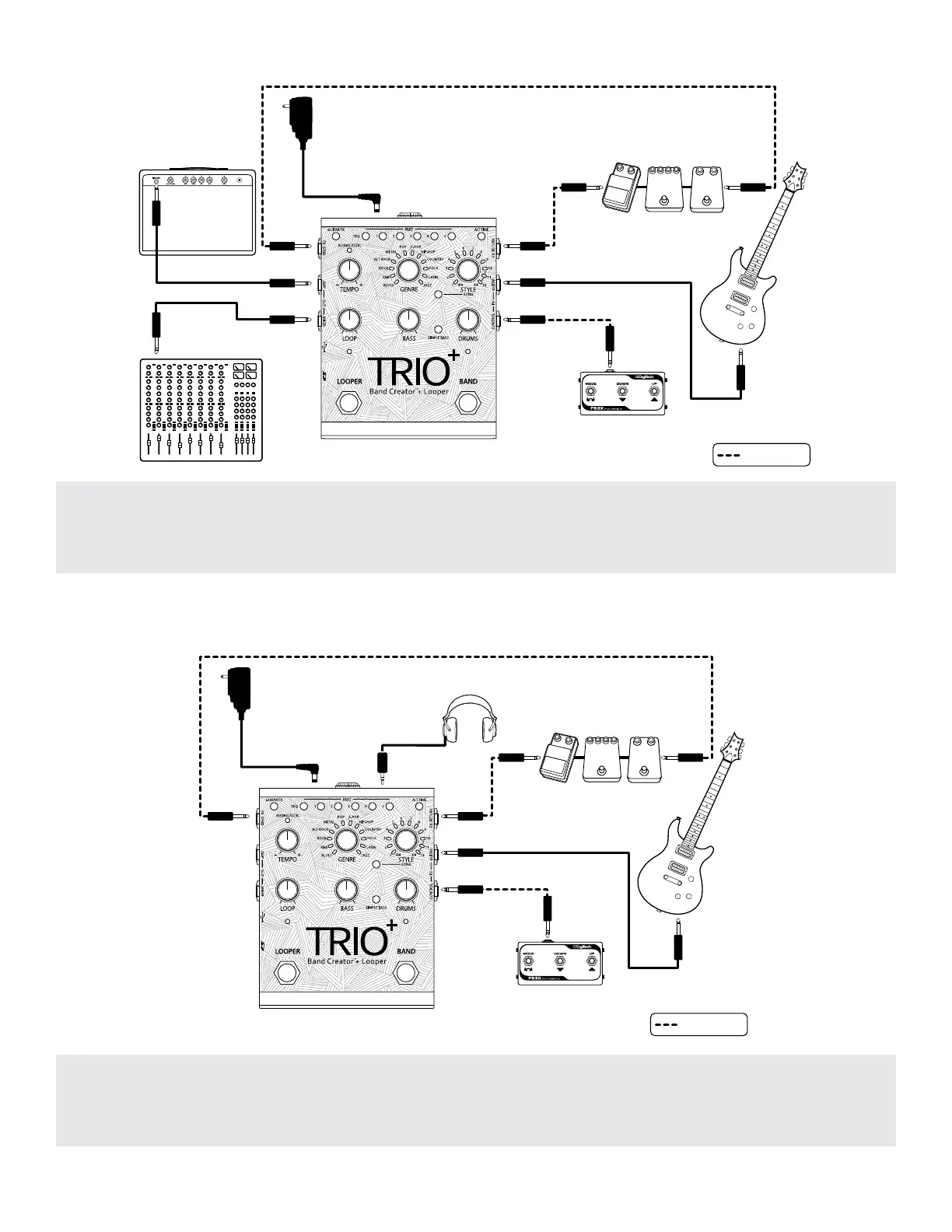

Amplifier + Mixer Setup
IN
IN
OUT
OUT
IN
IN
IN
OUT
OUT
IN
FS3X Footswitch
TRS CABLE
Optional
Amp
Use only unbalanced TS instrument cables for audio connections.
Mixer
HARMAN
PS0913DC (9VDC)
Power Adapter
Guitar Effects
Mixer
OUT
IN
NOTE: When connected to both the MIXER and AMP OUT jacks, the guitar signal will be fed to the AMP
output and the bass and drum parts will be fed to the MIXER output. See 'Output Jack Operation' on page
15 for more information.
Headphone Setup
IN
IN
OUT
IN
IN
OUT
FS3X Footswitch
TRS CABLE
Optional
Use only unbalanced TS instrument cables for audio connections.
HARMAN
PS0913DC (9VDC)
Power Adapter
Guitar Effects
Headphones
NOTE: When the HEADPHONE OUT jack is used, AMP and MIXER outputs will be muted. The signal present
in the headphones will be stereo and speaker cabinet emulation will be applied to the guitar signal. See
'Output Jack Operation' on page 15 for more information.
