CONNECTORS & USER INTERFACE
Connectors
4
5
7
6
3
2
1

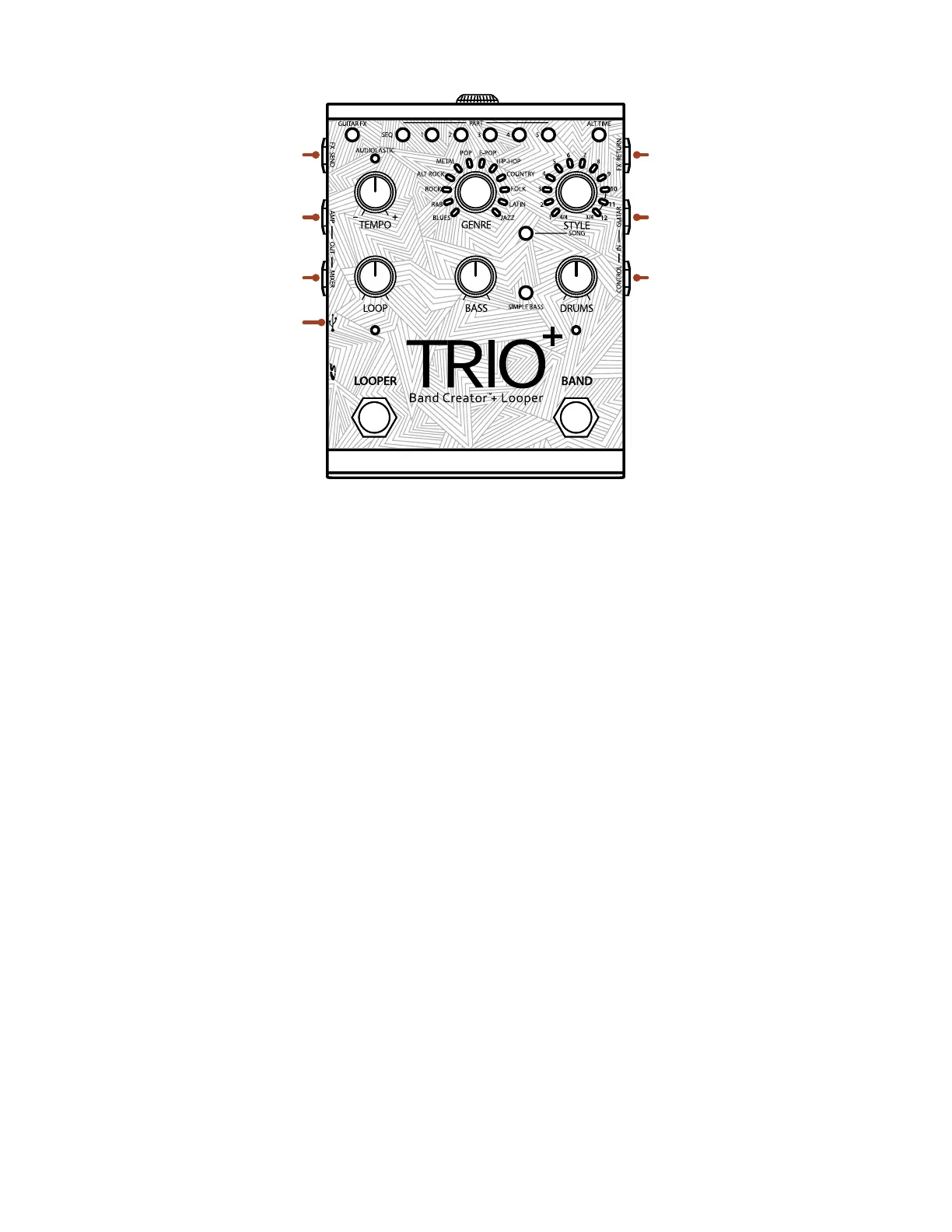

1. FX SEND Jack
Connect this output to the input of an external guitar effect stomp box or pedalboard. See 'Using External
Effects Connected To The FX Loop' on page 16 for more information.
2. FX RETURN Jack
Connect the output of an external guitar effect stomp box or pedalboard to this input. See 'Using External
Effects Connected To The FX Loop' on page 16 for more information.
3. AMP OUT Jack
Connect this output to the input of a guitar amplifier. Note that the output jacks are auto-sensing and
output functionality will change depending on which outputs are connected. See 'Output Jack Operation'
on page 15 for more information.
4. GUITAR IN Jack
Connect your guitar to this jack. The guitar signal fed to this jack should be unprocessed. If using external
effects, they should be connected to the FX SEND and RETURN jacks.
5. MIXER OUT Jack
Connect this output to the line input of a mixer. Note that the output jacks are auto-sensing and output
functionality will change depending on which outputs are connected. See 'Output Jack Operation' on page
15 for more information.
6. CONTROL IN Jack
Connect an optional DigiTech FS3X Footswitch to this jack for additional hands-free control. See 'Using An
FS3X Footswitch' on page 32 for more information.
7. USB Port
This Mini USB port is used for updating the TRIO+'s firmware and connecting to the free TRIO Manager
Software. See 'TRIO Manager Software/Firmware Updates' on page 57 for more information.
