Chapter 4 HYBRID Coater Service Manual ver1.1
30

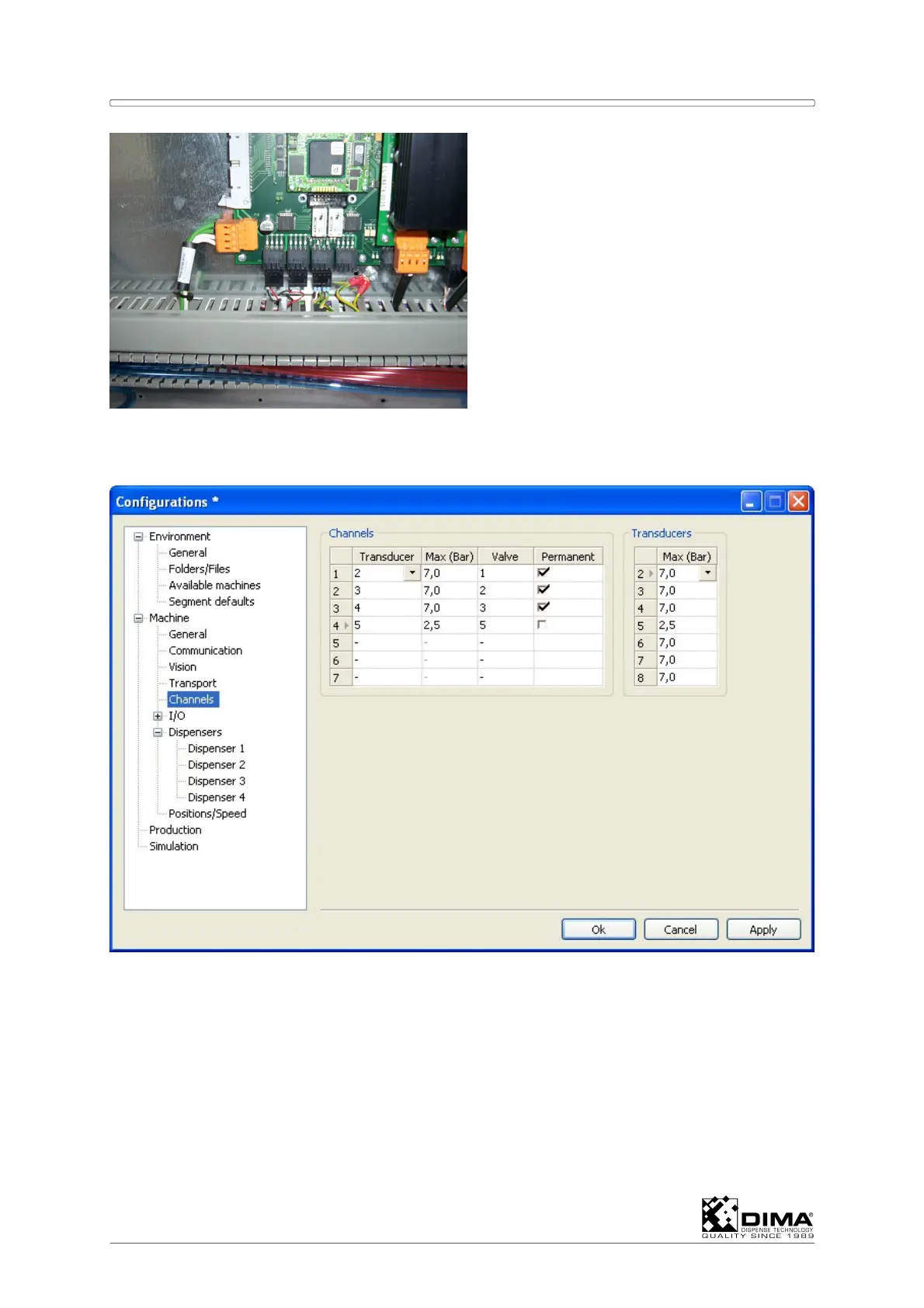

7. Connect the electric wires of the Solenoid Valve to the connector second from the left on
the bottom of the large PCB. Now all is connected.
8. What is left are the software settings:
9. Fill in the Transducer type. It is 2.5 Bar for the HC-1051 and 7 bar for the HC-1050. Fill it
in at the number of the Transducer counted from the bottom of the large PCB. For the
next free channel fill in the Transducer number. For that channel fill in the valve number.
This is the connection at the connector at the PCB. The first location (left) is No. 5, the
second is No. 6. “Permanent” must be switches Off.
