3. Machine Overview
3.1 Introduction
This Chapter gives an overview of the machine. Drawings of electrical wiring can be found in
Appendix A and B.
3.2 Electrical Block Diagram

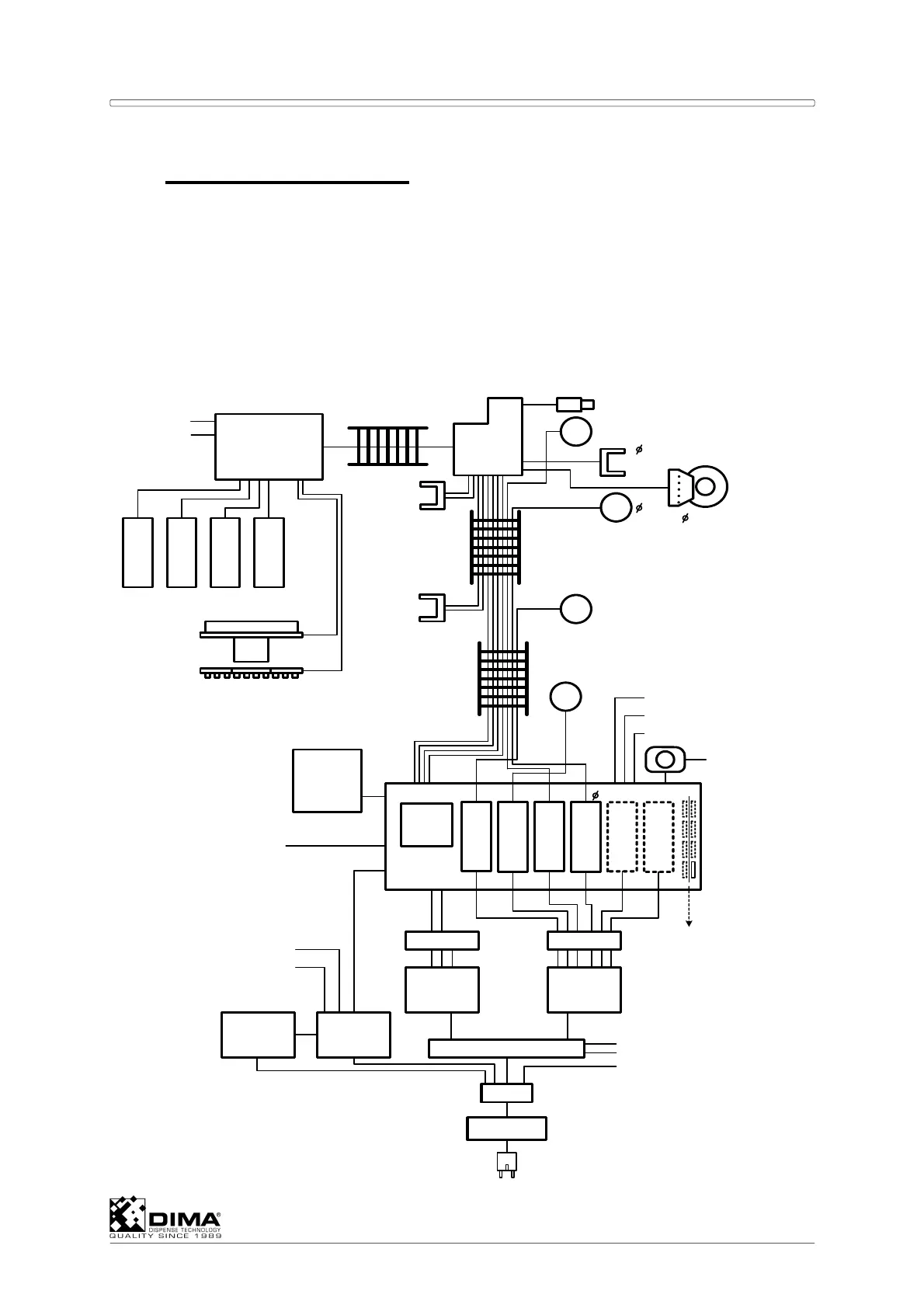

Below figure shows the block diagram of the electrical parts of the machine.
Z-Limit
EL-04875
Connection
PCB
-Limit (HC-200 only)
-Encoder
(HC-200 only)
X-Limits
Y-Limits
M
Cable
Chain
Cable
Chain
EL-04874
Stepper Driver
EL-04874
Stepper Driver
EL-04874
Stepper Driver
EL-04874
Stepper Driver
EL-04874
Stepper Driver
EL-04874
Stepper Driver
EL-04548
Processor
Module
XYZ C1C2
X
Y
Fuses Fuses
Power
Supply
24Vdc
Power
Supply
48Vdc
Control Circuit & Fuses
Fuses
Main Switch
On/Off Switch
Emergency Switch
Interiour Light
EL-04873
Control
PCB
PCMonitor
RS232/USB
Keyboard
Trackball
24Vdc
Differential
Pressure
Switch
Mounting
Bracket for up
to 8 Pressure
Sensors
EL-04872
Power
LED
Control
M
M
M
Z
Cable
Chain
EL-04876
or
EL-04806
or
EL-04879
Valve Mount
Assembly
Valve Mount
Assembly
Valve Mount
Assembly
Valve Mount
Assembly
1
2
34
Rotary Valve 1
Rotary Valve 2
EL-00578
Camera
EL-04870 or
EL-04807
Advanced Fid.
Camera
Illumination
Doorlock Front
Doorlock Back
Pushbutton
Control Panel
Exhauster
Detection
