Dimplex DF3215 Service Manual

10




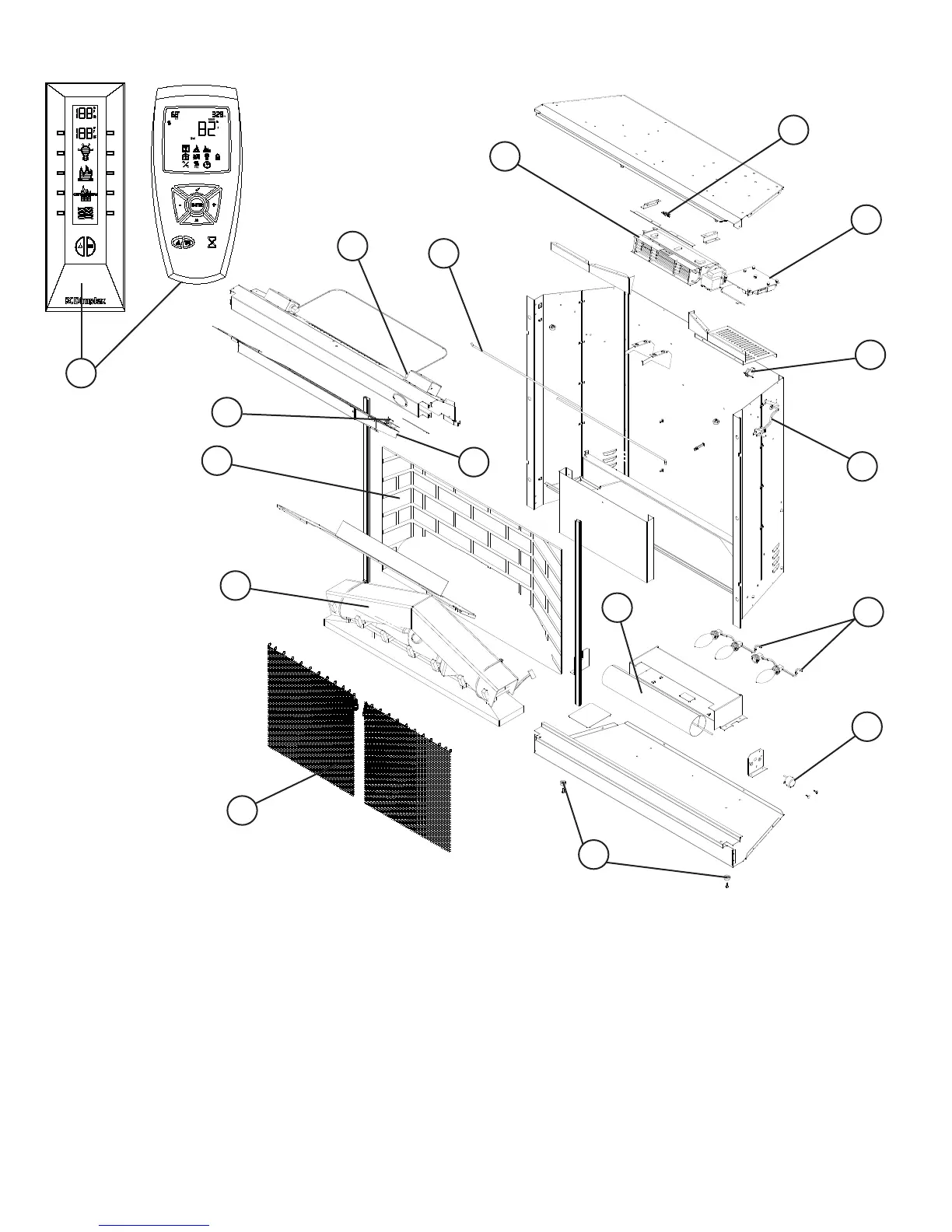

30” Urethane Log set1. . . . . . . . . . . . . . . .0439070100RP
Flicker Motor 2. . . . . . . . . . . . . . . . . . . . . .3000240200KIT
Heater Assembly 3. ..................2200490600RP
Cutout4. ...........................2300200500RP
On/Off Switch 5. .....................2800070700RP
Power Cord6. .......................4100040400RP
Upper & Lower Light Wire Assembly 7. ....2500200200RP
Wire Harness - Receiver to Log set8. . . . .2500380100RP
Wire Harness - Receiver to Blower9. .....2500390100RP
Switchboard10. . . . . . . . . . . . . . . . . . . . . . .3000320300RP
Partially Reective Glass11. . . . . . . . . . . . .5900160700RP
Remote Control - Pre–2008 12. ..........3000320400RP
- Post 2008 ..........3000610100RP
Remote Control Receiver - Pre-200813. . . .3000320200RP
- Post 2008 . .3000320500RP
Flicker Rod 14. .......................5900080700RP
Purire™ Filter15. . . . . . . . . . . . . . . . . . . . .0439060100RP
Fireplace Foot16. .....................8800090100RP
Steel Curtain17. ......................8800240603RP
Steel Curtain Rod18. . . . . . . . . . . . . . . . . . .8800250400RP
Bi-fold Doors Kit19. . . . . . . . . . . . . . . . . . . .6902560100RP
Bi-fold Door Replacement Pivot Kit20. .....9600330100RP
12
6
1
2
3
4
5
10
11
7
14
13
16
15
18
17
7
