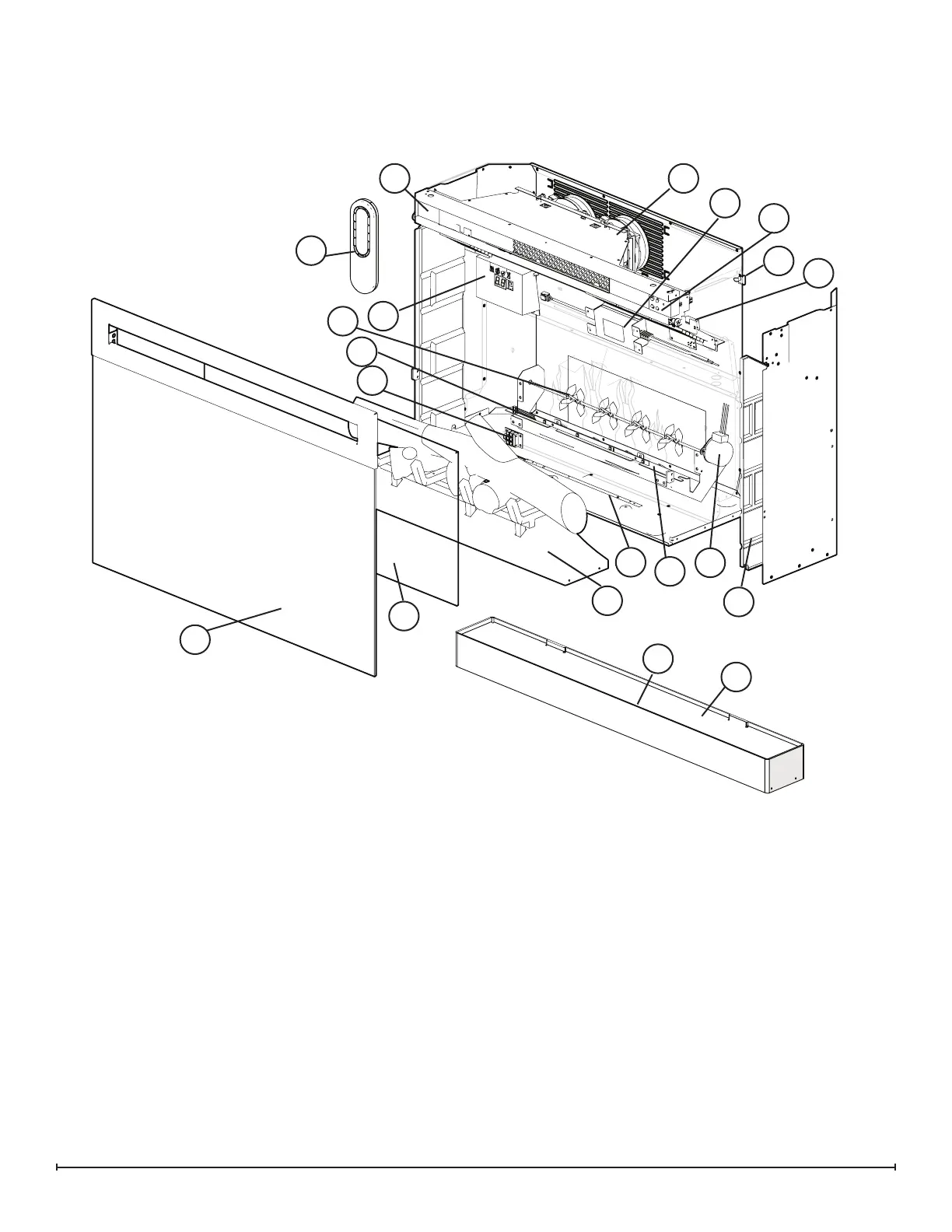

Exploded Parts Diagram - PF2325 Mod B-C
Replacement Parts - PF2325 Mod B-C:
1. Flicker Motor .......................... 2000480100RP
2. Heater Assembly (with cutouts) ........... 2203650100RP
3. Cord Set ............................. 4100190300RP
4. Remote Control ....................... 3001250100RP
5. Main Control Board .................... 3001530100RP
6. gWave
TM
Assembly .................... 3001620100RP
7. Relay Board .......................... 3001540100RP
8. Power Supply ......................... 2100250300RP
9. Log set Junction Board (MOD B only) ...... 3001600100RP
10. Top Light Assembly .................... 3001290100RP
11. Log set .............................. 0441690200RP
12. Media Tray - Flat ...................... 0441580100RP
Curved .................... 0441580300RP
13. Front Glass - Flat ...................... 1026770400RP
Curved ................... 1026770700RP
14. Partially Reective Glass ................ 5902750100RP
15. Brick Panel Set ........................ 0441600100RP
16. Flicker Assembly ...................... 5902830100RP
17. Media LED Light Assembly .............. 3001330700RP
18. Ember LED Light Assembly .............. 3001330100RP
19. Flame LED Light Assembly .............. 3001310100RP
20. Flame Bed LED Light Assembly ........... 3001330200RP
21. Small Acrylic Media .................... 1400150300RP
22. Large Acrylic Media (Ice Chunks). . . . . . . . . . 1400130200RP
2
3
6
9
7
16
5
8
4
1
13
12
14
11
15
17
10
18
19
20
