8 www.dimplex.com

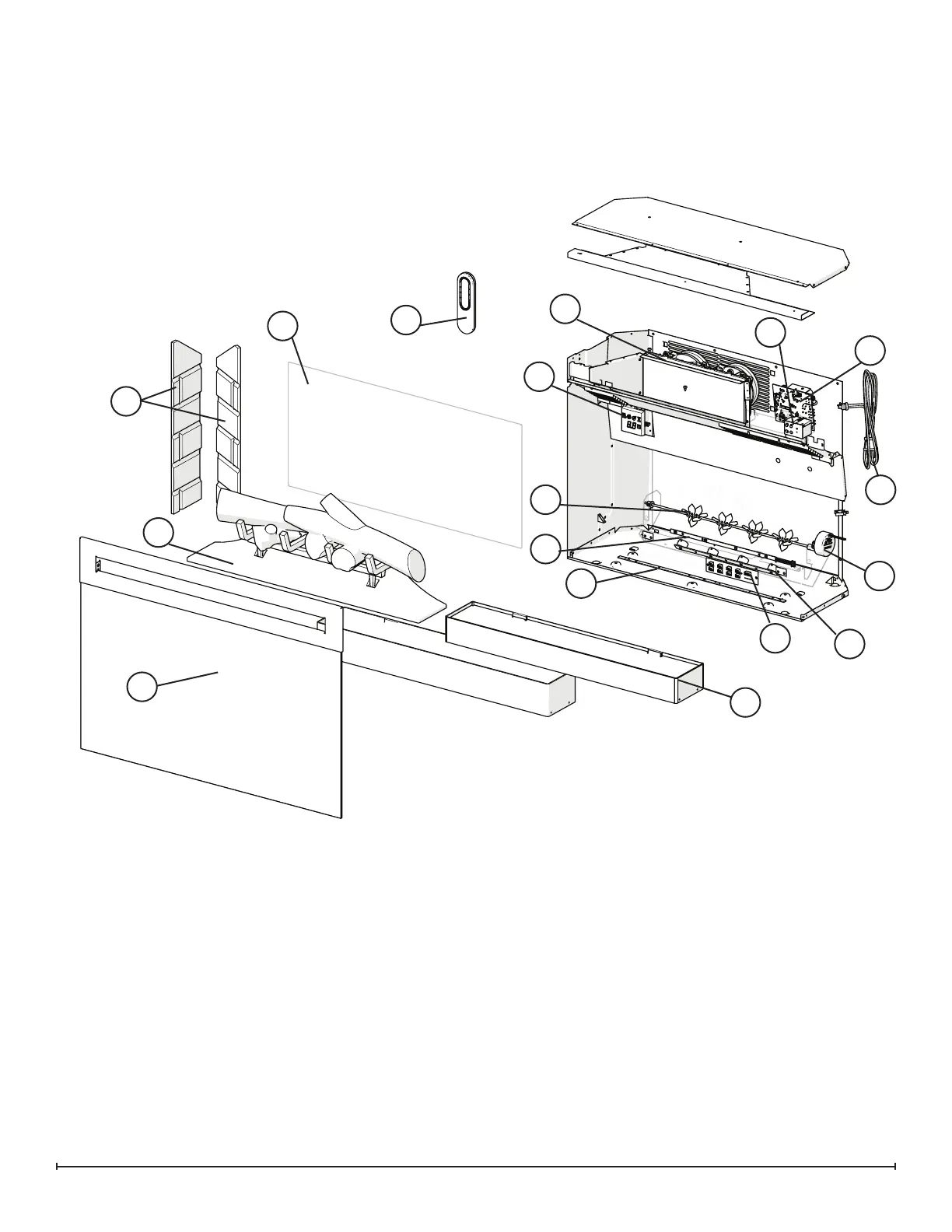

Exploded Parts Diagram - PF3033 Mod 0-A
Replacement Parts - PF3033 Mod 0-A:
1. Flicker Motor .......................... 2000480100RP
2. Heater Assembly (with cutouts) ........... 2203650100RP
*For MOD 0 units send Power Regulator Board as well
3. Cord Set ............................. 4100090204RP
4. Remote Control ....................... 3001250100RP
5. Main Control Board .................... 3001260100RP
6. gWave
TM
Assembly .................... 3001400100RP
7. Floating Display™ Assembly ............. 3001470100RP
8. Electronics Junction Board ............... 3001460100RP
9. Log set .............................. 0441540100RP
10. Media Tray ........................... 0441580200RP
11. Front Glass .......................... 1026770200RP
12. Partially Reective Glass ................ 5902750400RP
13. Brick Panel Set ........................ 0441600300RP
14. Flicker Assembly ...................... 5902830200RP
15. Lower Light Assembly .................. 3001310300RP
16. Media LED Light Assembly .............. 3001330500RP
17. Flame LED Light Assembly .............. 3001330300RP
18. Glass Media .......................... 1400070200RP
19. Acrylic (Ice) Media ..................... 1400130200RP
20. Power Regulator Board .............
PFRESISTORPCBRP
2
3
6
9
10
7
16
5
8
4
1
13
12
14
11
15
17
To Next Page
