C-3 Turret rotation slewing ring
gear - check reduction gear oil
level

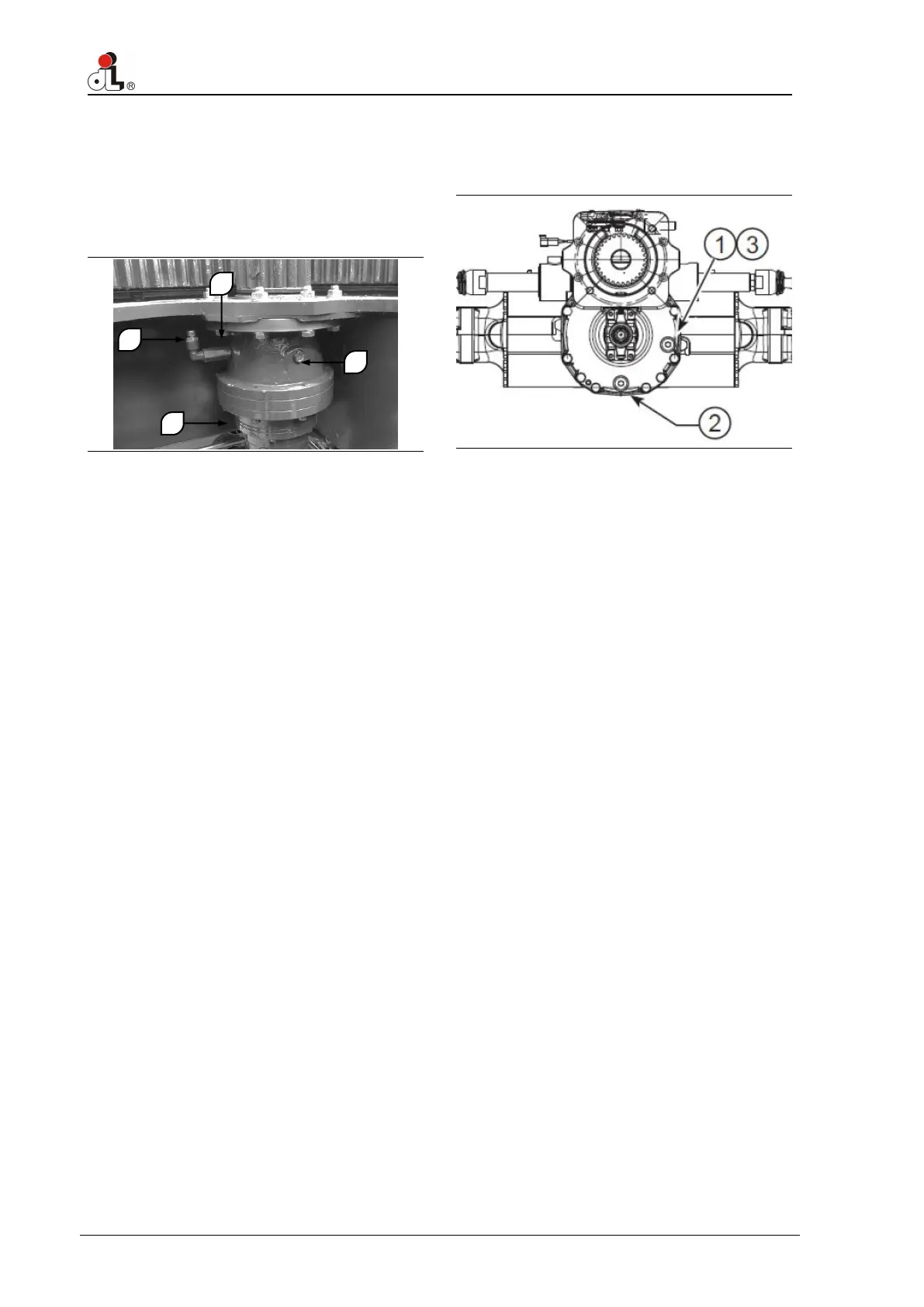

1 Retract and lift the telescopic boom
completely. Rotate the turret for better
access to the reduction gear.
2 Check the hydraulic fluid level through the
inspection window 1. The level is correct
when it overflows.
3 If necessary, top up with oil of the right
strength up to the filler hole 2.
When checking the oil level, also check the
bolts fixing the reduction gear to the chassis.
In case of faults (rusted, slackened or missing
bolts), contact your dealer.
C-4 Dropbox oil - Check
1 Set the vehicle in the parking position.
Make sure no one approaches the work
area.
2 Remove level cap 1. The oil must flow out
through the opening.
3 If necessary, Add oil to the correct level.
Close level cap 1. Clean the axle
surfaces.
Note: check it every 10 hours firstly.
