32
DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.

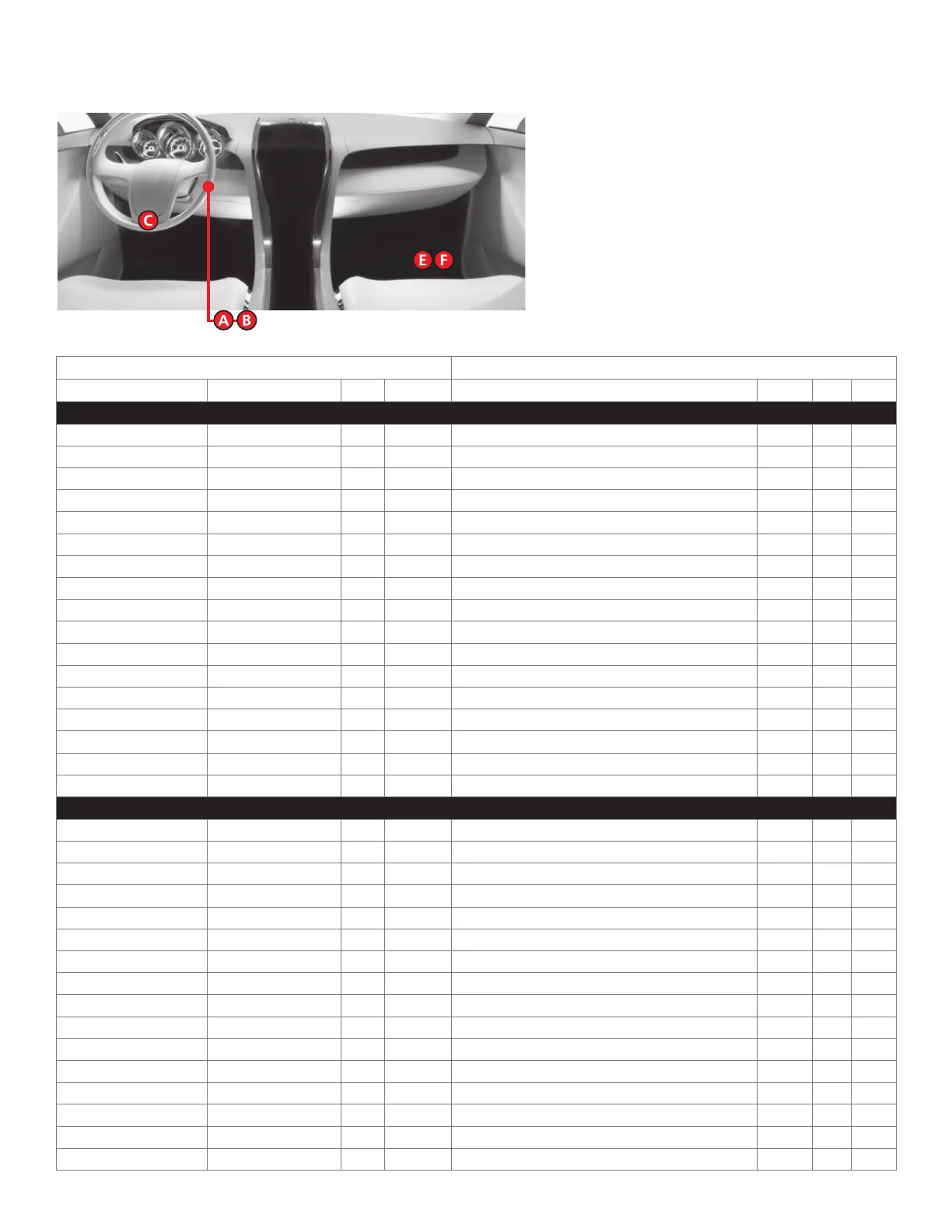

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Expedition 2009-2014
RX Blue/Gray 4 Data (PATS) connector. Black 4 A
TX Violet/Brown 3 Data (PATS) connector. Black 4 A
Power Liftgate Gray/Yellow 5 (-) Power liftgate switch. Black 6 F
12V Blue/Red 9 (+) Ignition switch. Gray 10 B
Starter Blue/White 10 (+) Ignition switch. Gray 10 B
Ignition White/Orange 1 (+) Ignition switch. Gray 10 B
Accessory Brown/Yellow 7 (+) Ignition switch. Gray 10 B
Keysense Blue/Gray 3 (+) Ignition switch. Gray 10 B
Parking Lights Violet/White 6 (+) SJB (Smart Junction Box) passenger kick panel. Gray 13 E
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 14 Cut SJB passenger kick panel. Gray 26 D
Lock Gray/Yellow 17 (-) SJB passenger kick panel. Gray 26 D
Unlock Violrt/Gray 4 (-) SJB passenger kick panel. Gray 26 D
Tach NOT B lue N/A (AC) Any fuel injector. N/A N/A N/A
Ford F150 2009-2010
RX Yellow/Orange 4 Data (PATS) connector. Black 4 A
TX Violet/Gray 3 Data (PATS) connector. Black 4 A
12V Violet/Red 9 (+) Ignition switch. Gray 10 B
Starter Blue/White 10 (+) Ignition switch. Gray 10 B
Ignition White/Orange 1 (+) Ignition switch. Gray 10 B
Accessory Violet/Green 5 (+) Ignition switch. Gray 10 B
Keysense Blue/Gray 3 (+) Ignition switch. Gray 10 B
Parking Lights Violet/White 6 (+) SJB (Smart Junction Box) in passenger kick panel. Gray 13 E
HS CAN High White/Blue 6 Data OBDII. Black 16 C
HS CAN Low White 14 Data OBDII. Black 16 C
MS CAN High Gray/Orange 3 Data OBDII. Black 16 C
MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Green/Violet 14 Cut SJB in passenger kick panel. Gray 26 D
Lock White/Brown 17 (-) SJB passenger kick panel. Gray 26 D
Unlock Blue/Brown 4 (-) SJB passenger kick panel. Gray 26 D
Tach Blue N/A (AC) Customer Access Harness behind data link connector. N/A N/A N/A
