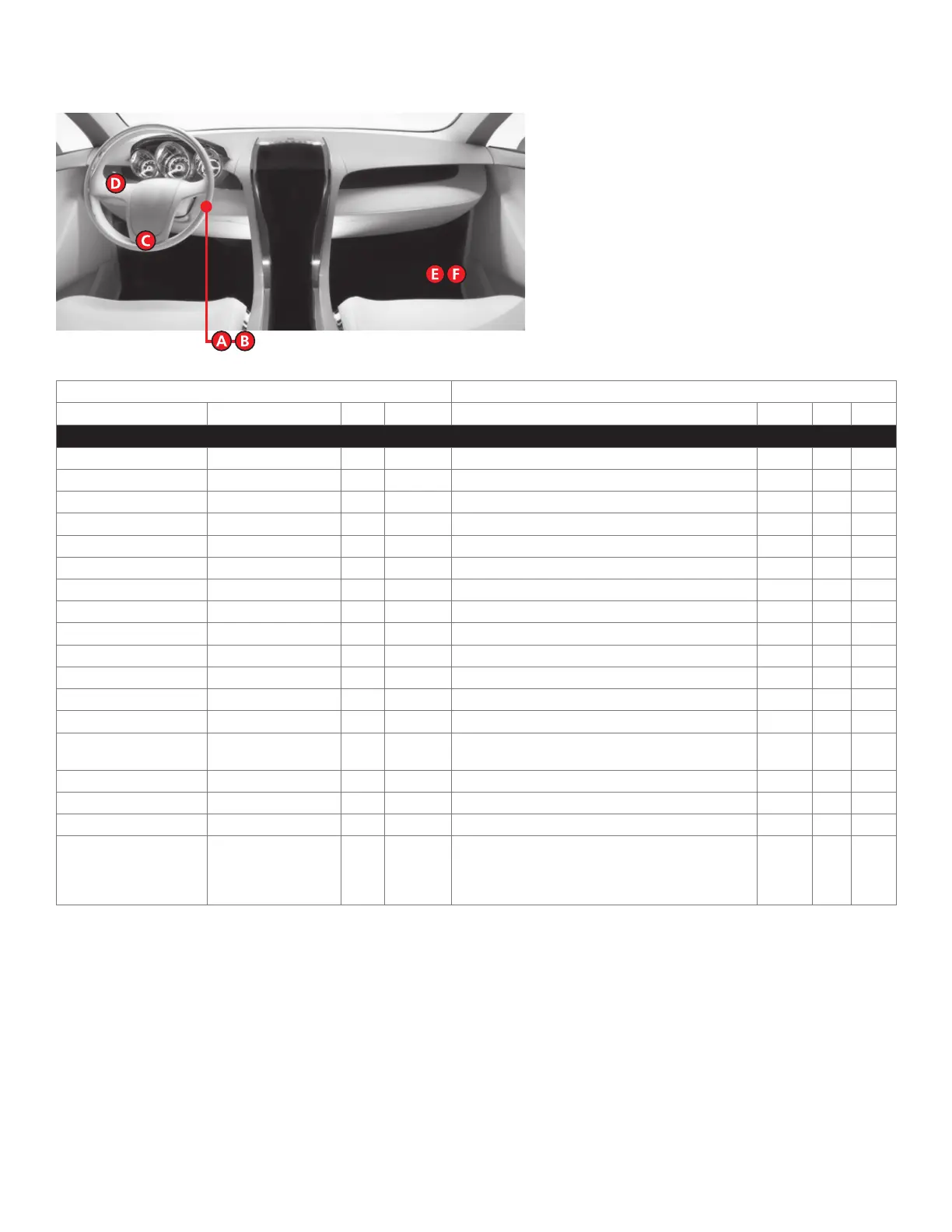

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information Connector Information
Function Color Pin Polarity Location Color Pins Ref.
Ford Mustang 2008-2009
RX Gray/Orange 4 Data (PATS) connector. Black 4 A
TX White/Lt. Green 3 Data (PATS) connector. Black 4 A
12V Lt. Green/Violet 4 (+) Ignition switch. Black 7 B
Starter Dk. Green 7 (+) Ignition switch. Black 7 B
Ignition White/Yellow 1 (+) Ignition switch. Black 7 B
Accessory Black/Pink 6 (+) Ignition switch. Black 7 B
Parking Lights Black/Lt. Green 5 (-) Headlight switch. Gray 10 D
Headlight Switch Ground Black 7 Cut Headlight switch. Gray 10 D
HS CAN High White/Lt. Green 6 Data OBDII. Black 16 C
HS CAN Low Pink/Lt. Green 14 Data OBDII. Black 16 C
MS CAN High White/Orange 3 Data OBDII. Black 16 C
MS CAN Low Pink/Orange 11 Data OBDII. Black 16 C
Driver Door Trigger Lt. Green/Black 2 Cut SJB (Smart Junction Box) in passenger kick panel. Black 26 E
Factory Alarm Disarm Green/Violet or Lt.
Blue/Black
9 (-) SJB in passenger kick panel. Black 26 E
Lock Orange/Black 8 (-) SJB in passenger kick panel. Black 26 E
Unlock Yellow/Red 5 (-) SJB in passenger kick panel. Black 26 E
Trunk/Hatch Release White/Violet 13 (-) SJB in passenger kick panel. Black 52 F
Tach Green/Blue, Gray/
Yellow, Violet/Gray,
Yellow/Orange,
Brown, Green/White
1 (AC) Any fuel injector. N/A 2 N/A
To Next Page
