Page 62
Installation Instructions
Chapter 4

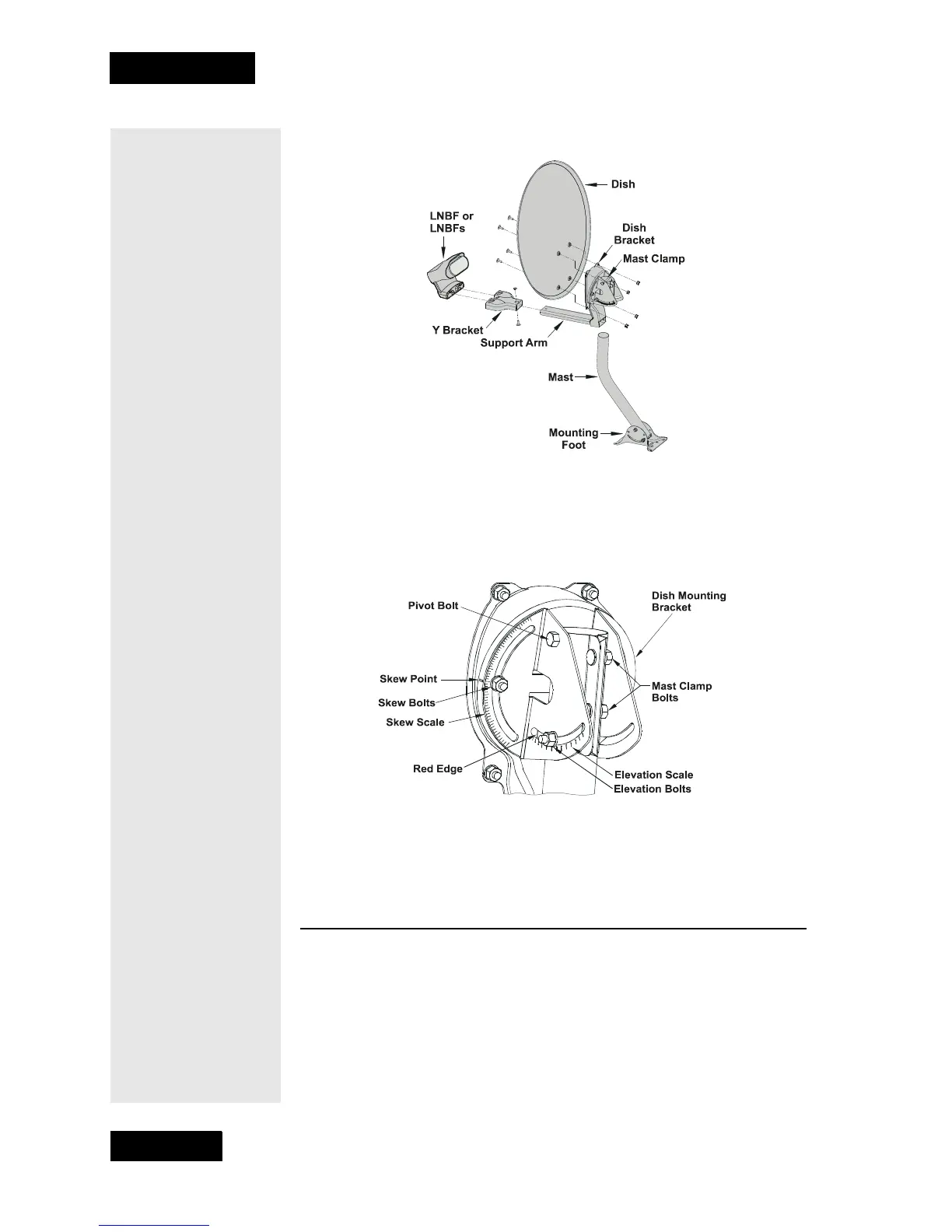

4. Assemble the satellite dish as shown below.
5. Loosen both skew bolts and set the skew by rotating the dish
mounting bracket to align the red mark with the required angle on the
skew scale which you wrote down on page 60. Tighten the skew bolts
securely to keep the dish from rotating. Once the skew is set, do not
try to fine-tune this angle when aiming the dish.
6. Set the elevation by tilting the dish mounting bracket to align the red
edge with the required angle on the elevation scale. Tighten the
elevation bolts, but do not tighten the pivot bolt at this time.
INSTALLING A DISHPRO DISH 500 SYSTEM
The following instructions are for installing a DishPro receiver in a
system with a DishPro Twin LNBF. If you are installing a multi-dish
system, you will need to follow these instructions and then the ones
that begin on page 67. If you are installing a DISH 500 with Legacy
LNBFs (with no DishPro logo), go to Installing a DISH 500 Legacy
System beginning on page 75.
