Page 84
Installation Instructions
Chapter 4

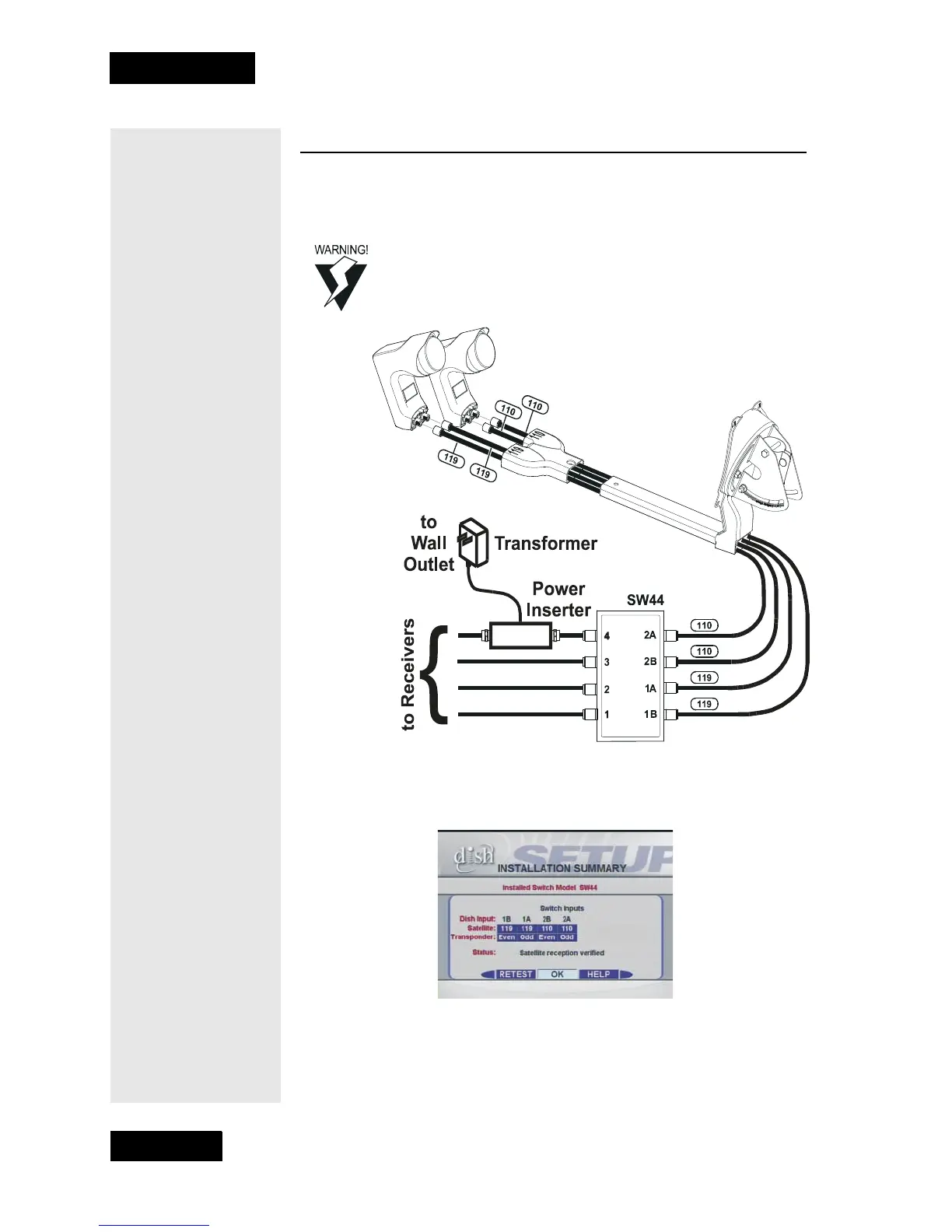

ALTERNATE LEGACY WIRING DIAGRAMS
DISH 500, TWO DUAL-OUTPUT LNBFS AND ONE SW44 MULTI-DISH
S
WITCH, FOUR RECEIVERS
This diagram omits grounding for clarity. Make sure to
ground the system per the National Electrical Code (NEC)
and all local electrical codes. See Grounding the System for
grounding procedures.
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to
the one shown below.
