lPage 85
Alternate Legacy Wiring Diagrams

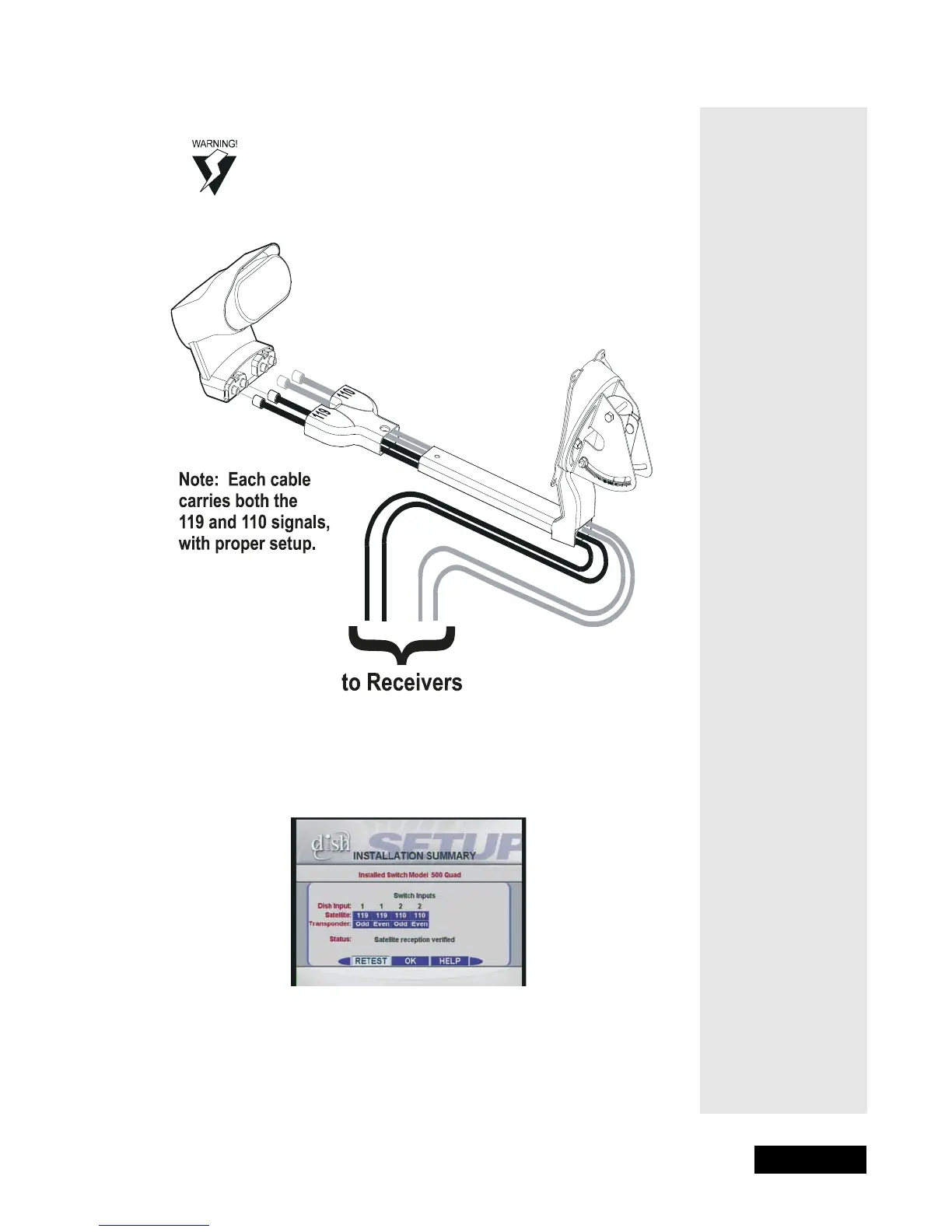

DISH 500, ONE QUAD LNBF, FOUR RECEIVERS
This diagram omits grounding for clarity. Make sure to
ground the system per the National Electrical Code (NEC)
and all local electrical codes. See Grounding the System for
grounding procedures.
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to the
one shown below.
