Installation Instructions
Chapter 4

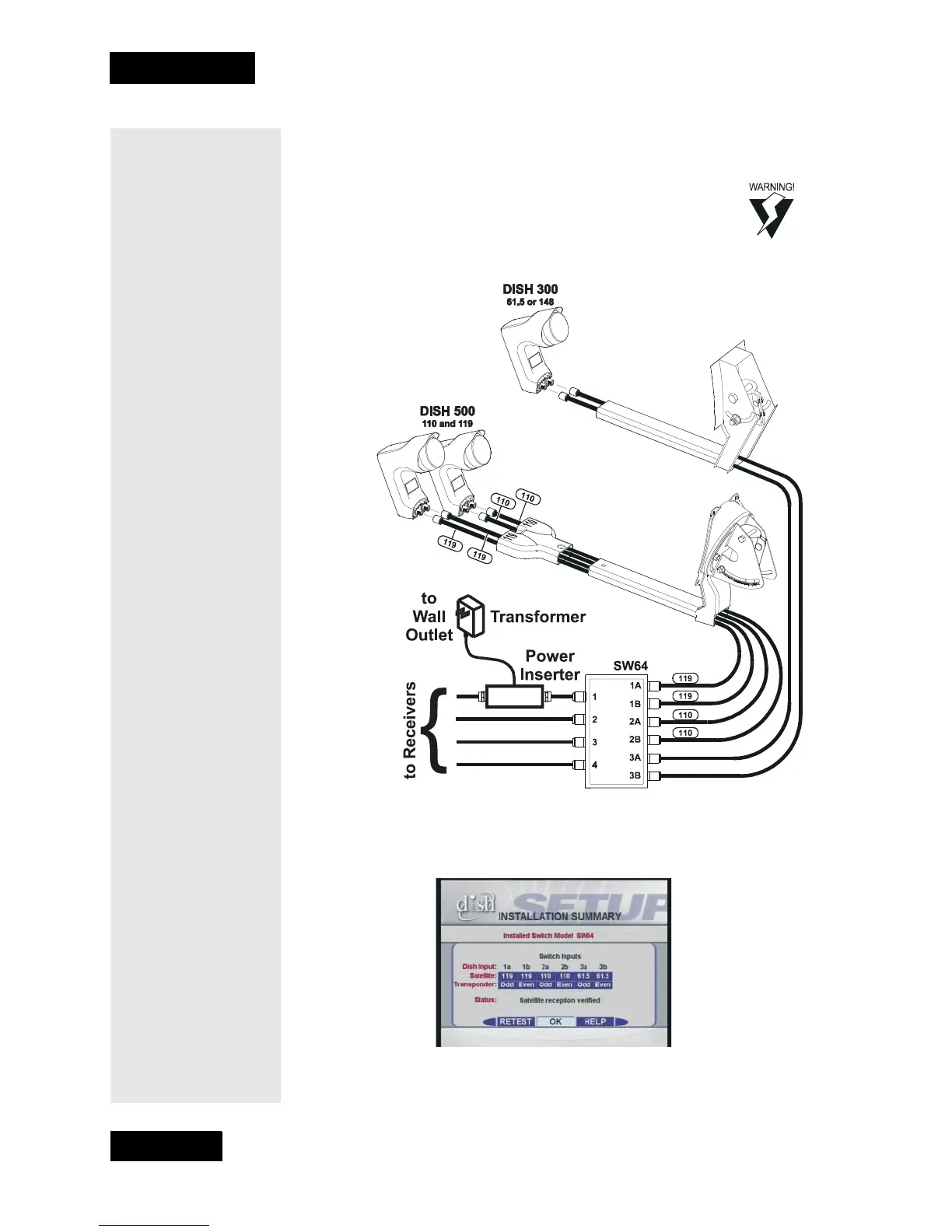

TWO DISHES, THREE DUAL-OUTPUT LNBFS, ONE SW64 MULTI-DISH
S
WITCH, FOUR RECEIVERS
This diagram omits grounding for clarity. Make sure to
ground the system per the National Electrical Code (NEC) and
all local electrical codes. See Grounding the System for
grounding procedures.
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to
the one shown below.
