lPage 87
Alternate Legacy Wiring Diagrams

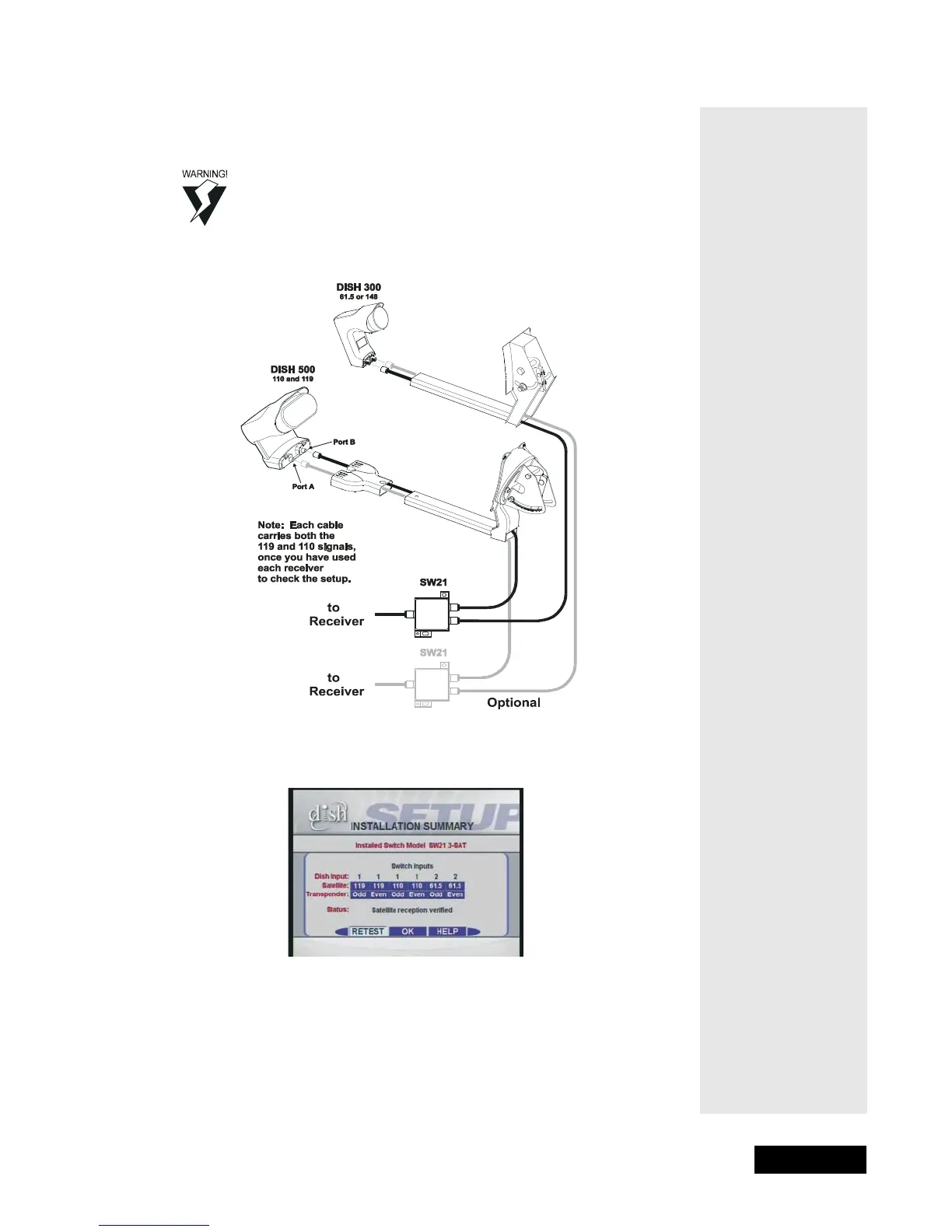

TWO DISHES, ONE DUAL LNBF, TWO RECEIVERS, TWO SW21
M
ULTI-DISH SWITCHES, TWO RECEIVERS
This diagram omits grounding for clarity. Make sure to
ground the system per the National Electrical Code (NEC)
and all local electrical codes. See Grounding the System for
grounding procedures.
When you set up your system following this diagram and run Check Switch
the Installation Summary screen should look like the one shown below.
