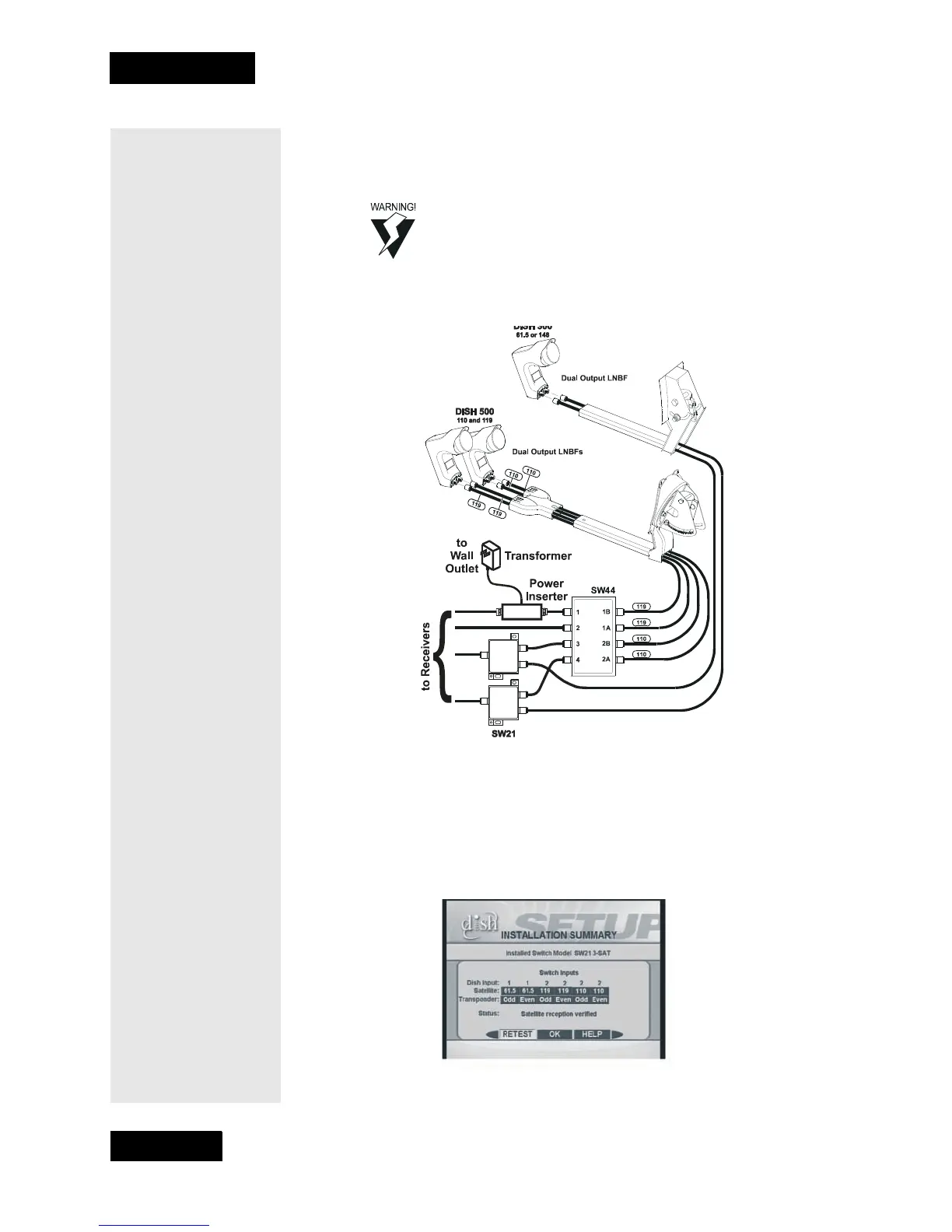

TWO DISHES, THREE DUAL-OUTPUT LNBFS, ONE SW44 SWITCH,
T
WO SW21 SWITCHES, FOUR RECEIVERS
This diagram omits grounding for clarity. Make
sure to ground the system per the National
Electrical Code (NEC) and all local electrical
codes. See Grounding the System for grounding
procedures.
Note: In this installation, only two receivers will get signal from all
three LNBFs. The other two receivers will get signal from only two
LNBFs.
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to
the one shown below.
