lPage 89

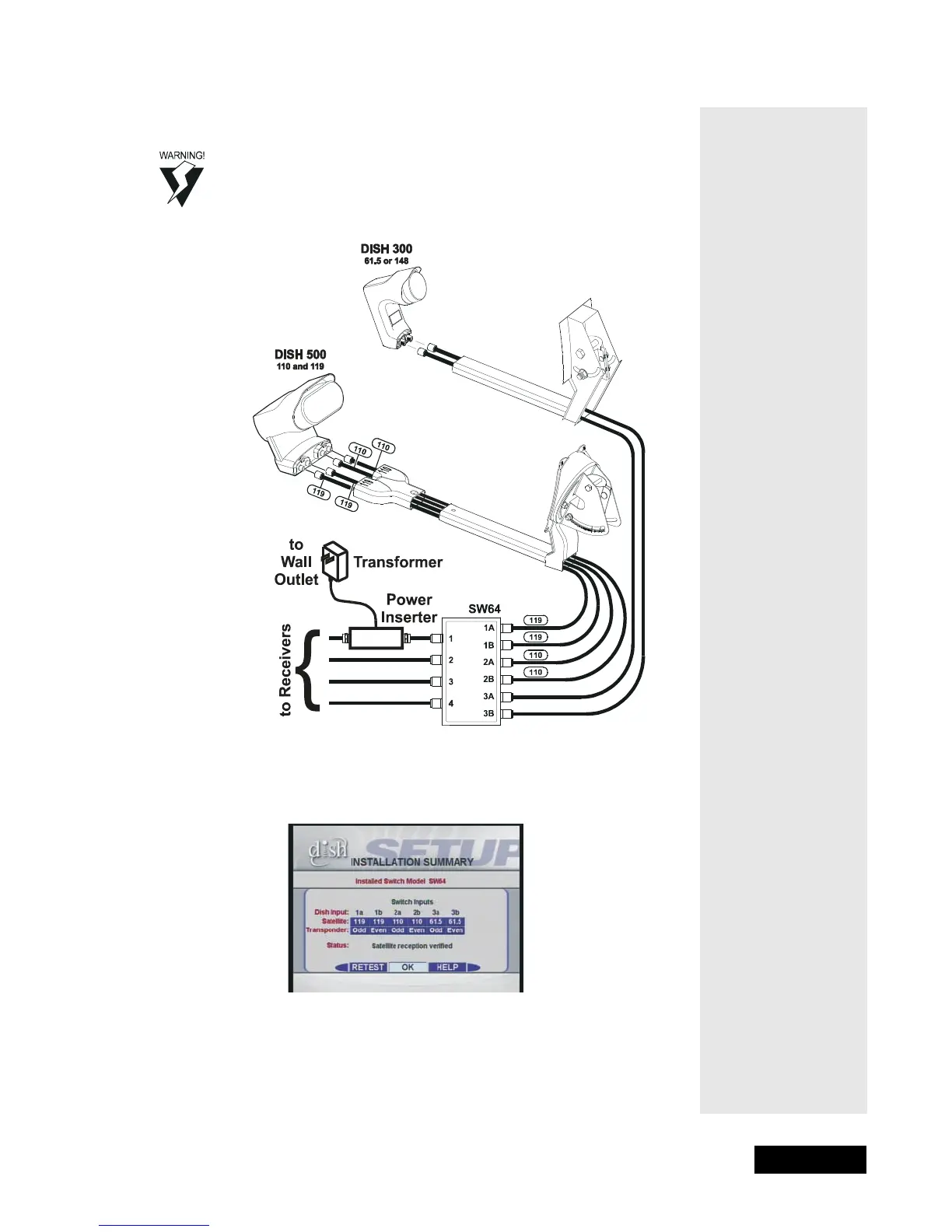

Alternate Legacy Wiring Diagrams
TWO DISHES,ONE QUAD LNBF, ONE DUAL-OUTPUT LNBF, ONE SW64
M
ULTI-DISH SWITCH, FOUR RECEIVERS
This diagram omits grounding for clarity. Make sure to ground
the system per the National Electrical Code (NEC) and all local
electrical codes. See Grounding the System for grounding
procedures.
When you set up your system following this diagram and run Check
Switch the Installation Summary screen should look similar to T the
one shown below.
