Page 64
Installation Instructions
Chapter 4
Be sure there are no multi-dish switches between the LNBF and
the receiver.
4. Attach the LNBF to the Y-bracket, using the two LNBF screws.
5. Slide the dish assembly down onto the mast. Make sure the pivot bolt
rests on the top of the mast. Turn the dish assembly so that it points in
the general direction of the satellites, using the azimuth angle from
page 60.
6. You should see the Point Dish/Signal menu. If not, open the Main
Menu, select System Setup, then Installation, then Point Dish/
Signal or press 6-1-1 on the remote.
7. Select Check Switch.The Check Switch screen will open.
8. Select Check. The receiver shows you a message that it is checking
the switches.
9. When the check switch procedure finishes, you should see an
installation summary screen similar to the one shown on the following
page. In the Satellite line, you should see the word “Conn,” twice. In
the Device line, you will see the word “Twin” twice. In the LNBF
line, you should ““Twin-1.” This indicates that your receiver has
confirmed the connection with Port 1 on your DishPro Twin LNBF is
working. If your Installation Summary screen matches this, you
can go directly to step #10. If not, do one of the following:
•If “Xs” appear in the Satellite line, tighten all the connections in your
system, and then select Retest to run Check Switch again.

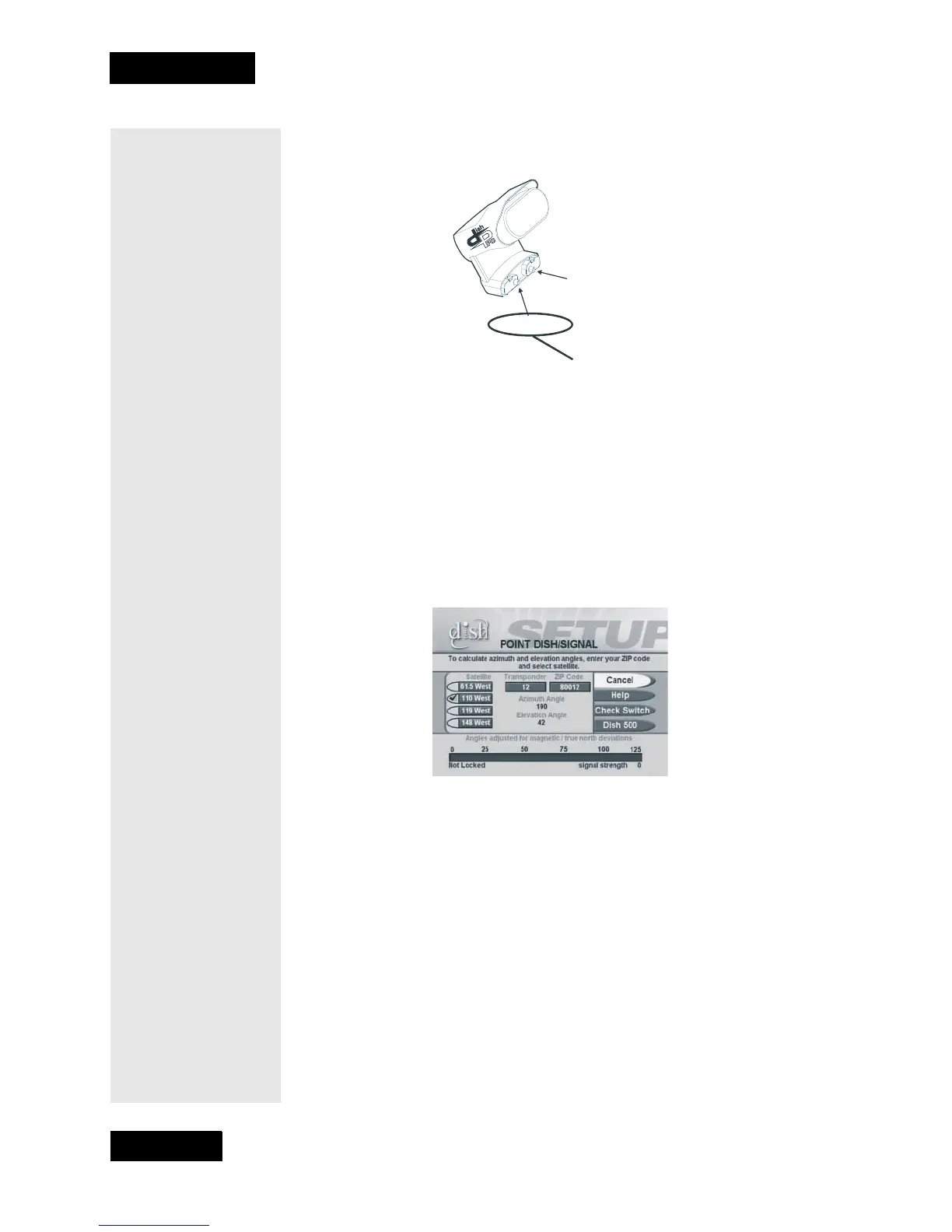

Connect to Port 1. It’s on
the left when the LNBF is
pointed towards you
Port 1
Port 2
To Next Page
