Distech Controls EC-BOS-9 - Tab Mounting Dimensions

6/13
Tab Mounting Dimensions
Measurements shown below are in inches and (mm).
Note that DIN mounting is recommended over tab mounting. See Mounting on a DIN Rail.

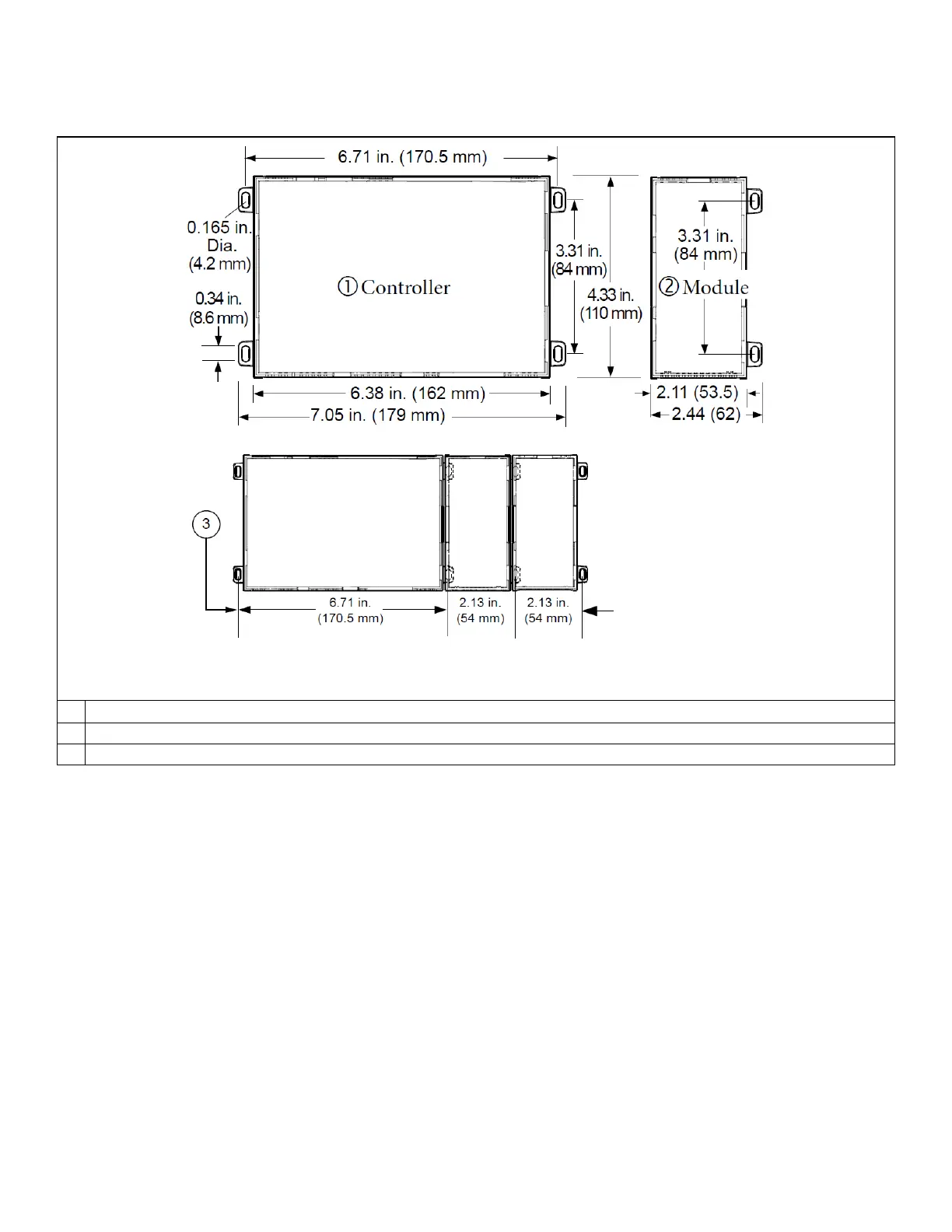

Figure 3: EC-BOS-9 tab mounting dimensions
1
EC-BOS-9. With no option modules added, allow at least 1.5" (38mm) clearance around all sides.
2 Option expansion module. Up to four (4) may be used. See Option Module and Capacity Considerations.
3
Distances between center of tabs from one unit to another unit.
