100 Network Guide
For ECB Series controllers only, during commissioning, the Allure EC-Smart-Vue sensor is
used to set the controller's BACnet® MAC Address. Set the connected ECB Series controller's
MAC Address as follows:

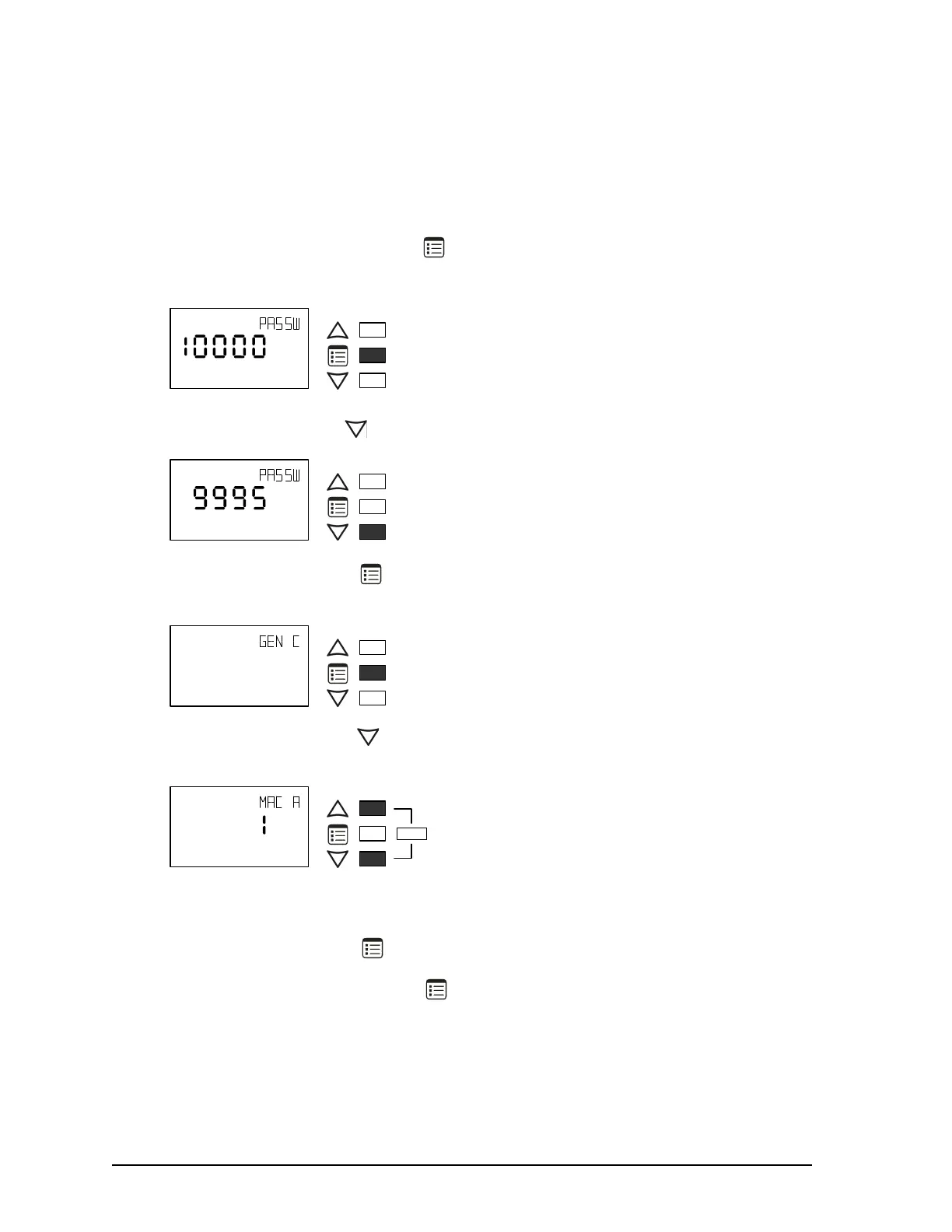

1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat 5e patch cable. Wait
for the display to show the room temperature.
2. Press and hold the Menu button for 5 seconds to enter the password menu. 10000 is
shown on the display.
3. Use the down button to set the number to 9995 (this is the default password).
4. Press the Menu button to submit the password. Upon submitting the password, the
GEN CFG menu appears on the display.
5. Press the down button once to enter the GEN CFG submenu. The MAC ADDRESS
menu is shown with the current controller's BACnet MAC Address.
6. Use the up and down buttons to set the controller's MAC Address. Only addresses from 1
to 127 are recommended to be used.
7. Press the Menu button once to apply the value.
8. Press and hold the Menu button for 5 seconds to exit the configuration menu.
Once the controller's communication network is operational, the controller can be programmed
with EC-gfxProgram. For each Allure EC-Smart-Vue sensor, set its Subnet ID number to the
block number of its associated CommSensor block in EC-gfxProgram. This is done in the
Allure EC-Smart-Vue sensor's GEN CFG menu under SUBNET ID.
